Technical Data 　Linear actuator 　Linipower Jack 　Technical Data

Screw Shaft Speed (Lifting speed )・Allowable load related graph

This graph illustrates the relationship between screw shaft speed and allowable load.

The maximum allowable input capacity of each frame number of the jack is considered in the graph, so check the allowable load in this graph to determine the frame number.

If detailed consideration is required, click here for the selection procedure.

H speed L speed
JWB

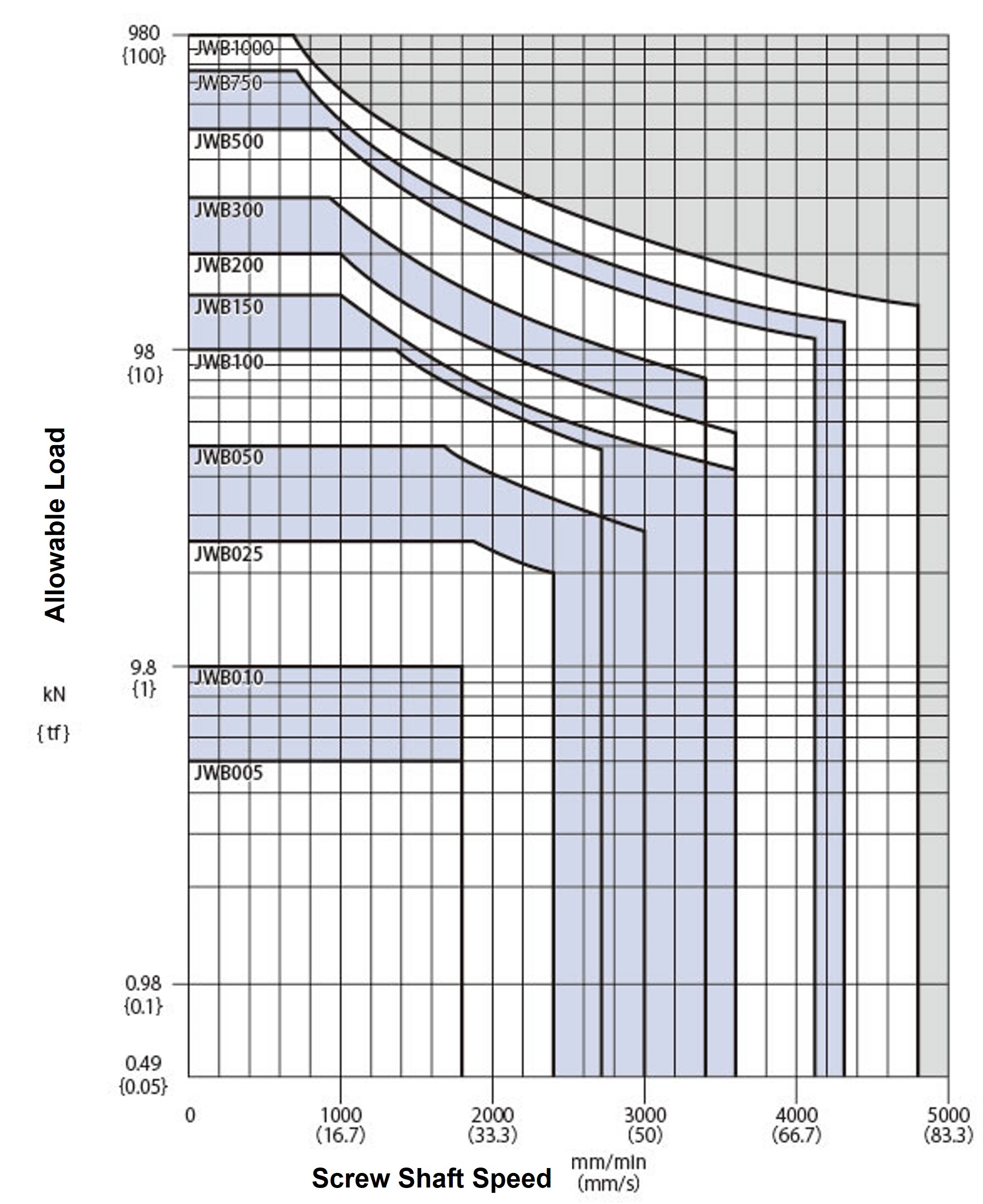

(Ball screw type )		 Ball screw type H speed

[Click to enlarge ]

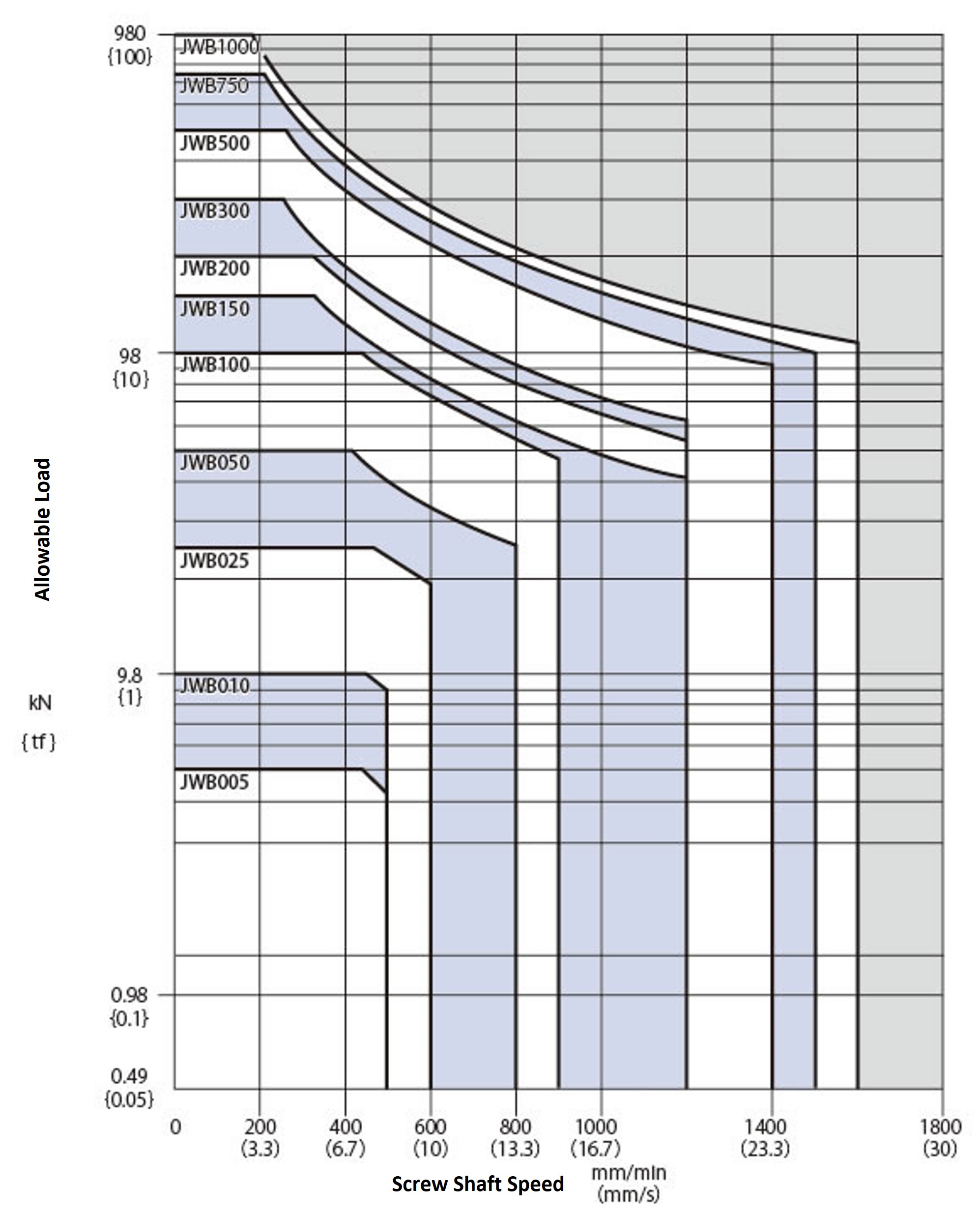

 Ball screw type L speed

[Click to enlarge ]
JWH

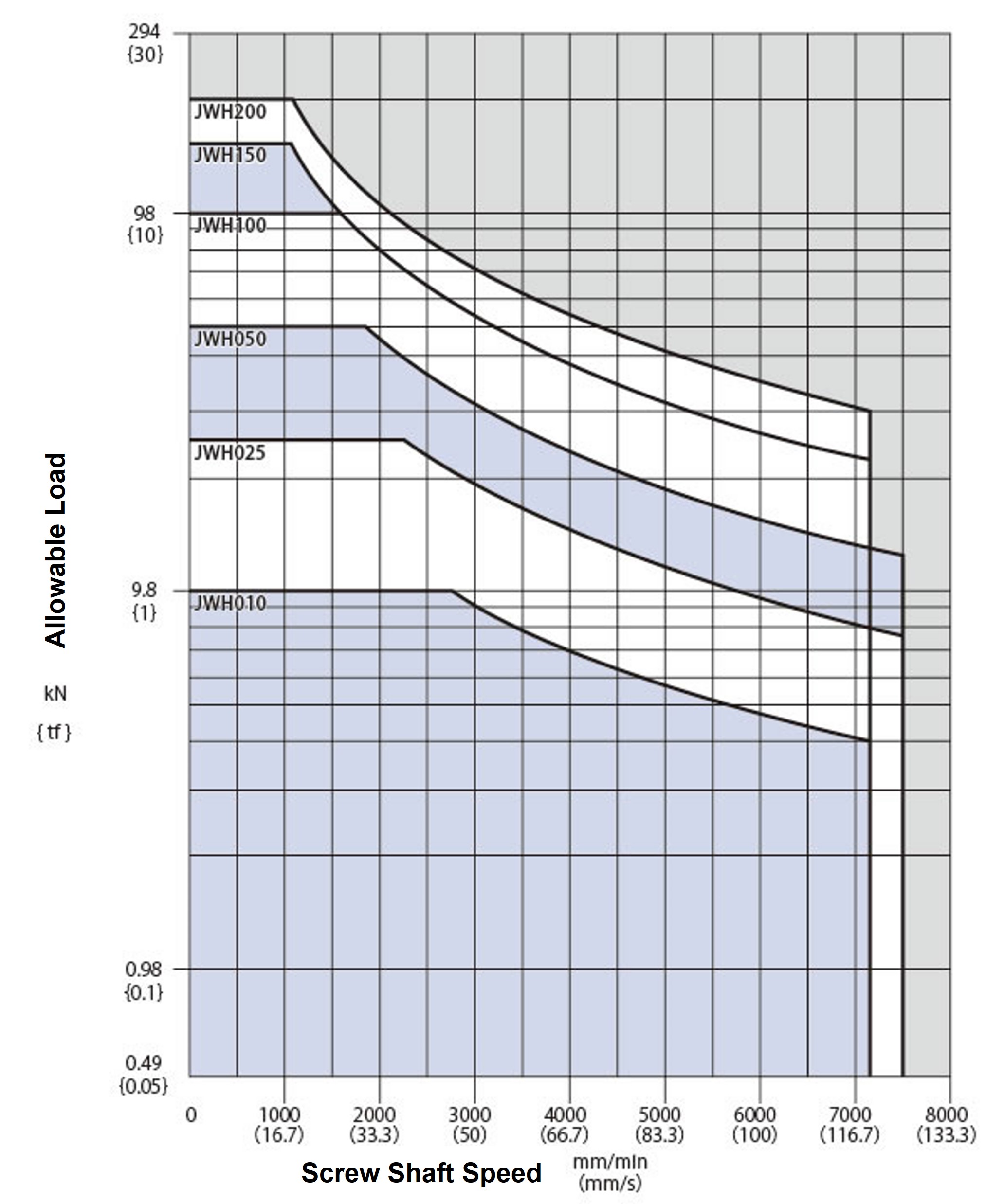

(High lead ball screw type )		 High lead ball screw type H speed

[Click to enlarge ]

 －
JWM

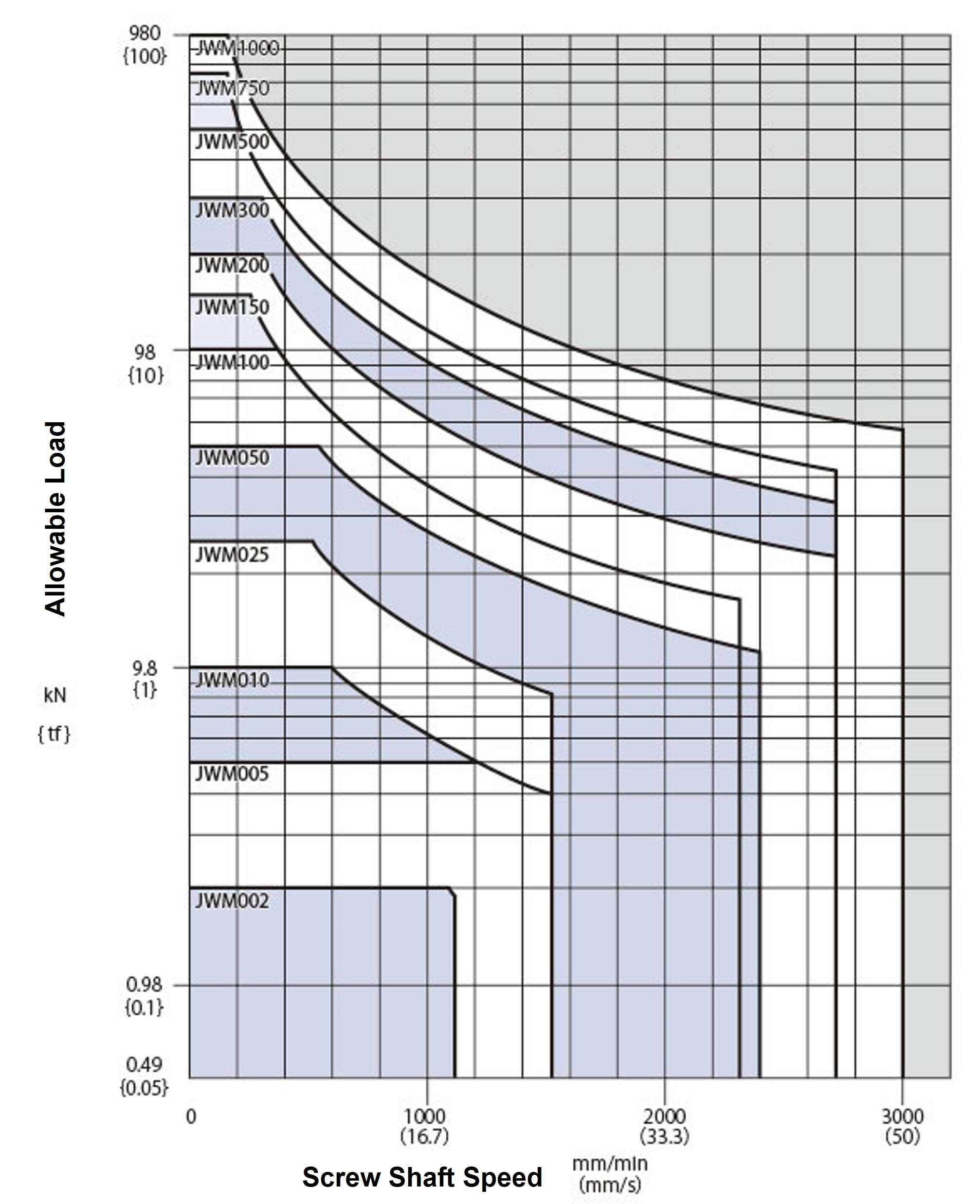

(Trapezoidal screw type )		 Trapezoidal screw type H speed

[Click to enlarge ]

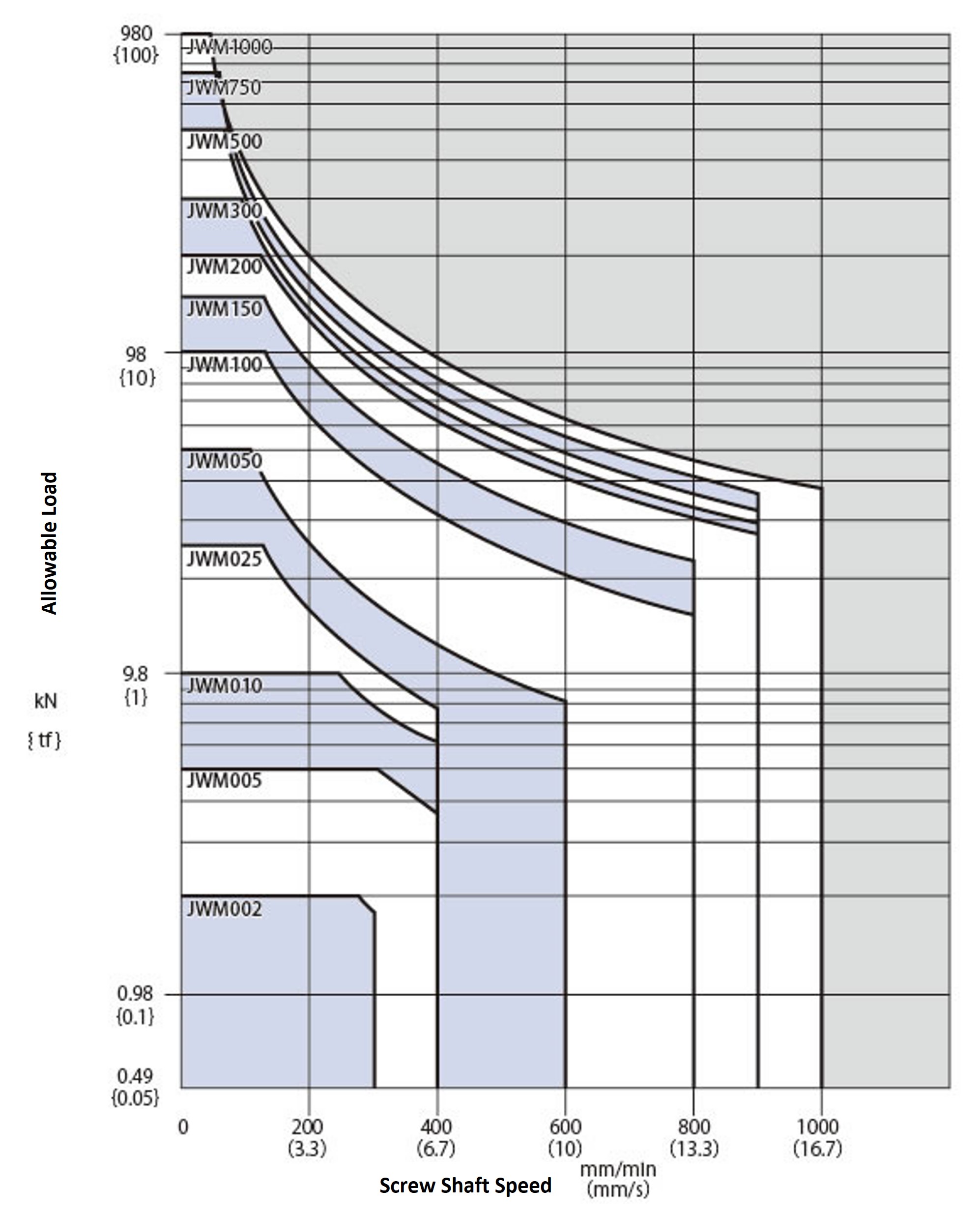

 Trapezoidal screw type L speed

[Click to enlarge ]
