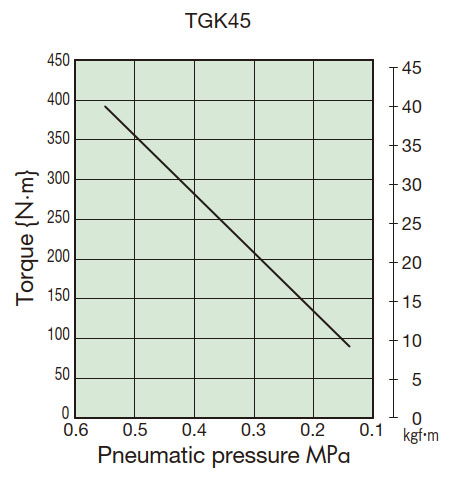

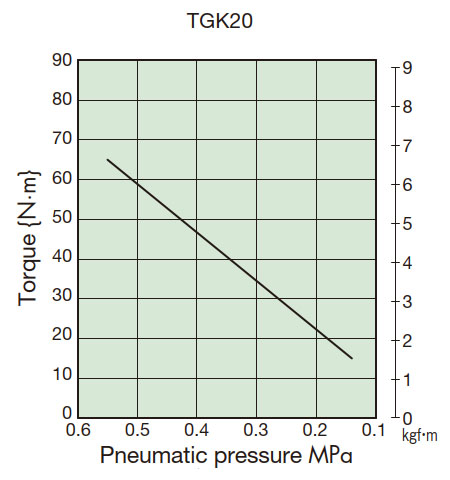

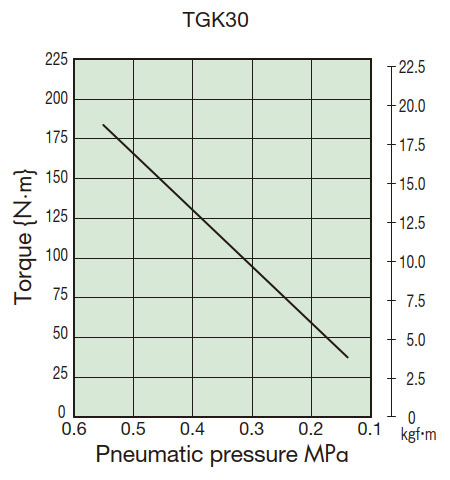

Torque adjustment can be performed accurately by referring to the torque correlation chart, adjusting the air pressure that matches the required torque with the regulator (pressure regulator) and feeding air into the cylinder of TGK.

Also, the operating torque can be changed by changing the pneumatic pressure even while the machine is operating.

Operating air pressure ...0.14～0.55MPa

(Note )Be careful to keep the air supply source pressure higher than the preset pressure.
