Technical Data  Mechanical protectors 　Handling

Shock Guard 　TGE　Handling

Torque adjustment

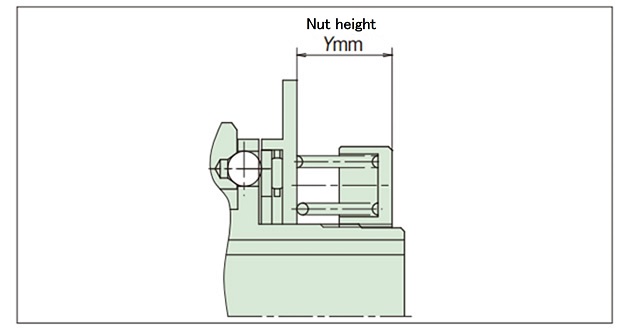

• 1. Read the nut height that corresponds to the required torque from the torque correlation charts and tighten the torque adjustment nut to that height. (Refer to the diagram below. )
  To tighten the adjusting nut, loosen the set screws in two places. Then, use a hook spanner (sold separately, refer to the table at right) on the notched portion of the adjusting nut to turn it. The torque of the product does not always match the correlation chart below, so use it as a guide.


  Hook spanner wrench

  Size	Spanner No.
  TGE25	FK-0070
  TGE35	FK-0092
  TGE50	FK-0105

• 2. When the torque is determined, write down the torque on the name plate so that you can easily set the torque to the previous value even after an overhaul. A more accurate torque adjustment can be achieved by marking matchmarks on the nut and hub edge.

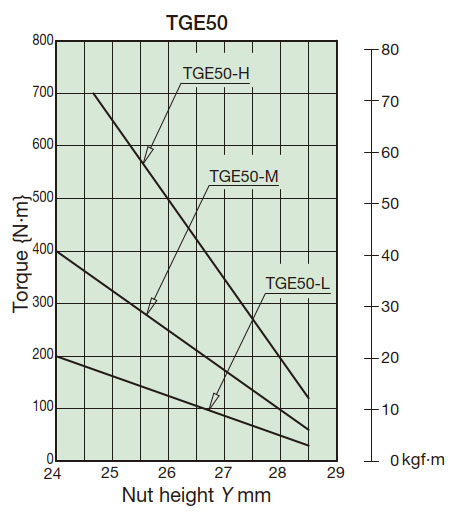

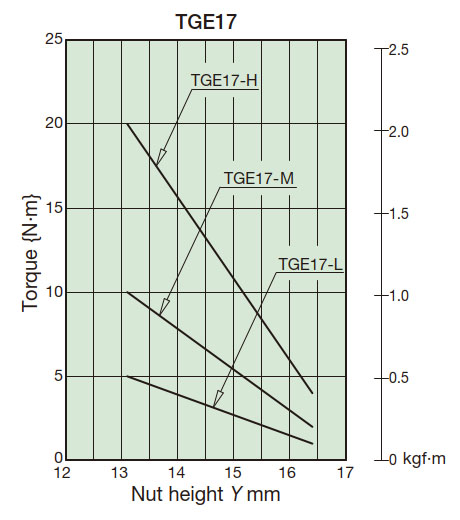

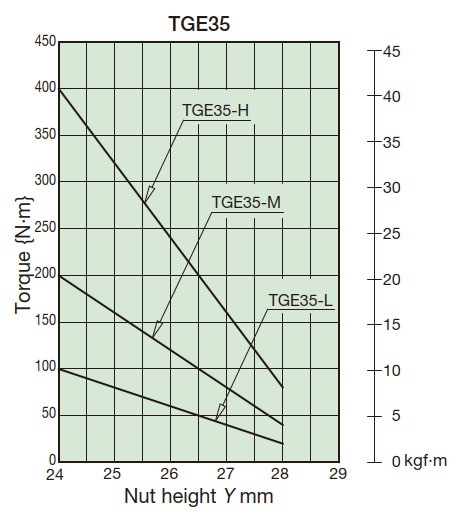

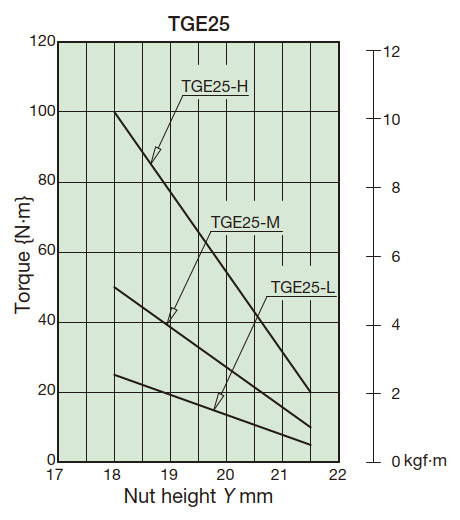

  Torque Correlation Chart
