Technical Data  Reducers  Worm Gear Reducers  Motor Specifications

Standard Terminal Box Specifications

1. Motor Output ：0.1kW ～ 0.4kW[Made of resin ]

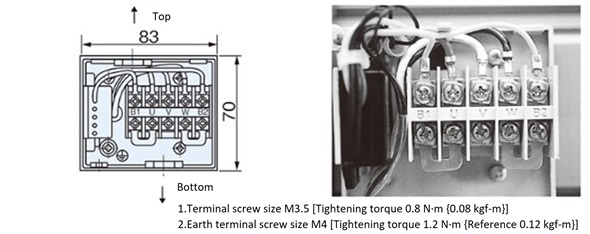

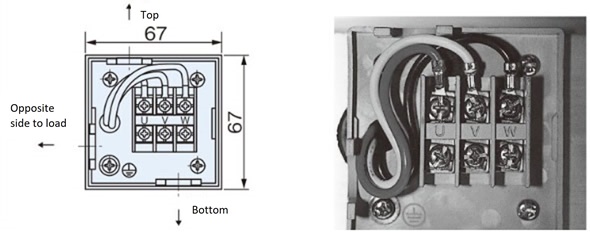

	Terminal box dimensions	Terminal box position
No brake		Motor Output A P 0.1kW 64.5 81 0.2kW 102.5 81 0.4kW 102.5 81
With brake		Motor Output A P 0.1kW 102.5 104.5 0.2kW 119.5 104.5 0.4kW 119.5 104.5

2. Motor Output ：0.75kW[Made of steel plate ]

	Terminal box dimensions	Terminal box position
No brake		Motor Output A B C P 0.75kW 116.5 135 98 140
With brake		Motor Output A B C P 0.75kW 161.5 135 98 140

3. Motor Output ：1.5kW ～ 2.2kW[Made of steel plate ]

	Terminal box dimensions	Terminal box position
No brake		Motor Output A B C P 1.5kW 106.5 98 102 160 2.2kW 106.5 98 102 160
With brake		Motor Output A B C P 1.5kW 191 135 98 155 2.2kW 191 135 98 155

4. Motor Output ：3.7kW[Made of steel plate ]

	Terminal box dimensions	Terminal box position
No brake
With brake

5. Motor Output ：5.5kW[Made of steel plate ]

	Terminal box dimensions	Terminal box position

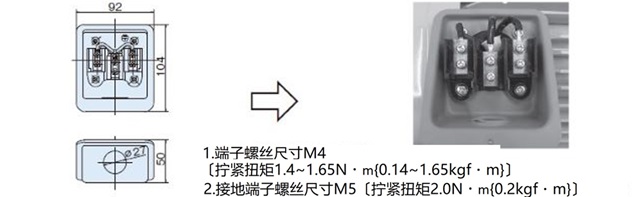

No brake
With brake

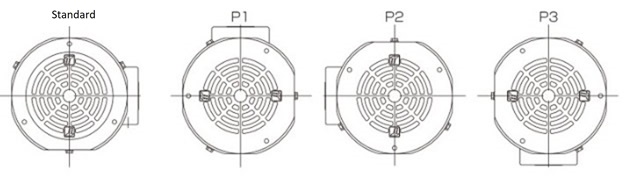

Terminal box position

Terminal boxes can be mounted in any 90° position. Specify the position code when ordering.

It is also possible to change the mounting position by removing the motor mounting bolts and turning the motor.

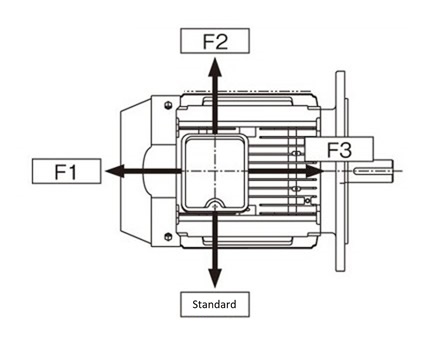

Terminal box outlet direction

Terminal box outlet can be arranged in 90° degrees,
(except on 5.5 kW motors with brake. )

Specify the position code when ordering.
(ex. ：Terminal box outlet direction F1)
