Technical Data  Reducers  Small-Size Gear Motor  Motor Specifications

Standard Terminal Box Specifications 　Gear Motors, Hypoid Motors, Croise Motors

1.Motor Output ：0.1kW ～ 0.55kW [Made of resin ]

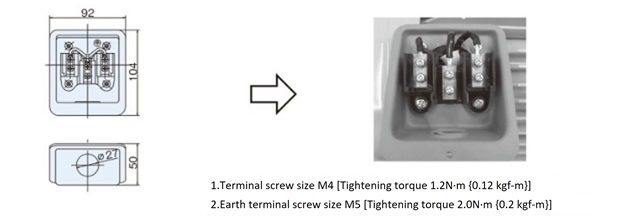

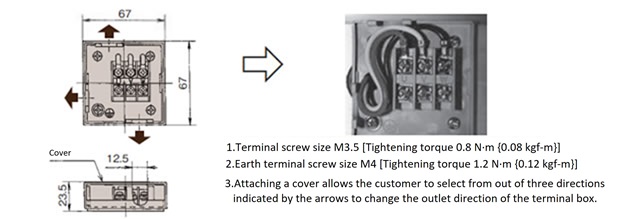

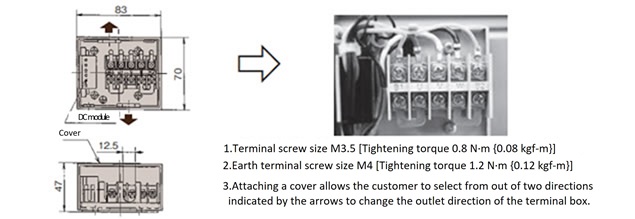

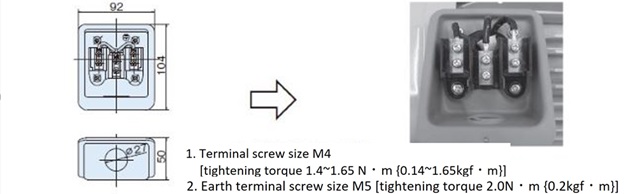

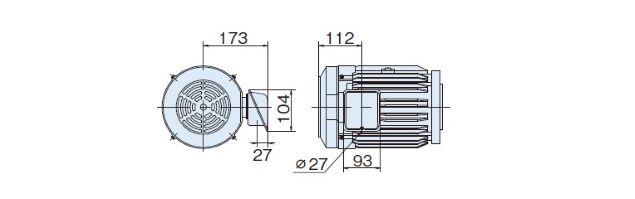

	Terminal box dimensions	Terminal box position
No brake		Motor Output A P 0.1kW 64.5 81 0.2kW 102.5 81 0.4kW 102.5 81 0.55kW 102.5 81
With brake		Motor Output A P 0.1kW 102.5 104.5 0.2kW 119.5 104.5 0.4kW 119.5 104.5 0.55kW 119.5 104.5

2. Motor Output ：0.75kW[Made of steel plate ]

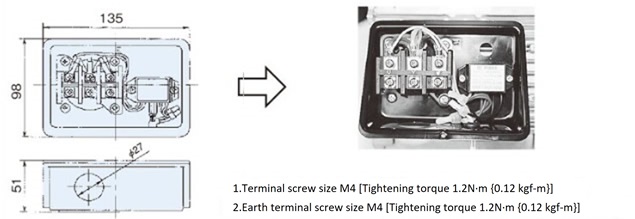

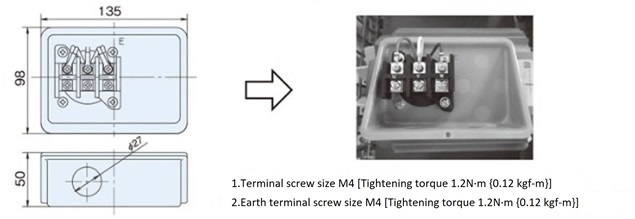

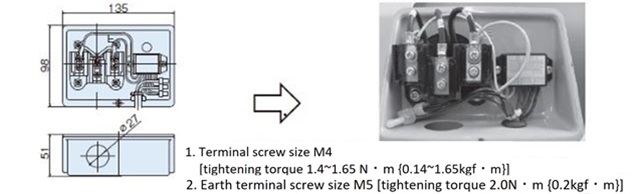

	Terminal box dimensions	Terminal box position
No brake		Motor Output A B C P 0.75kW 116.5 135 98 140
With brake		Motor Output A B C P 0.75kW 161.5 135 98 140

3. Motor Output ：1.5kW ～ 2.2kW[Made of steel plate ]

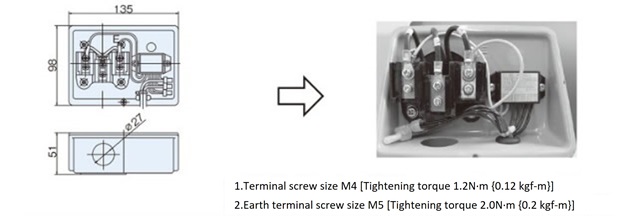

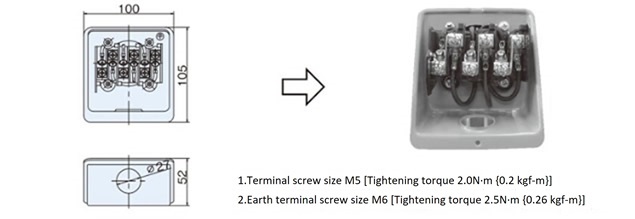

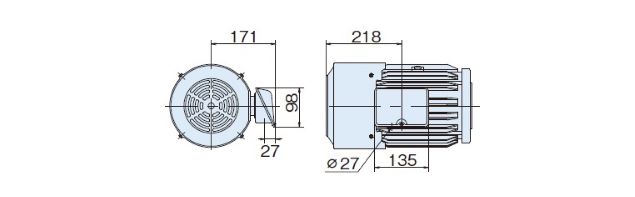

	Terminal box dimensions	Terminal box position
No brake		Motor Output A B C P 1.5kW 106.5 98 102 160 2.2kW 106.5 98 102 160
With brake		Motor Output A B C P 1.5kW 191 135 98 155 2.2kW 191 135 98 155

4. Motor Output ：3.7kW[Made of steel plate ]

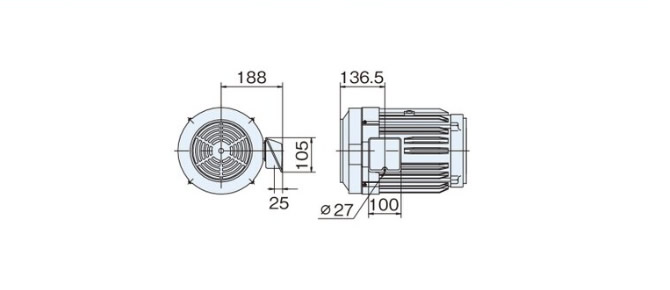

	Terminal box dimensions	Terminal box position
No brake
With brake

5. Motor Output ：5.5kW[Made of steel plate ]

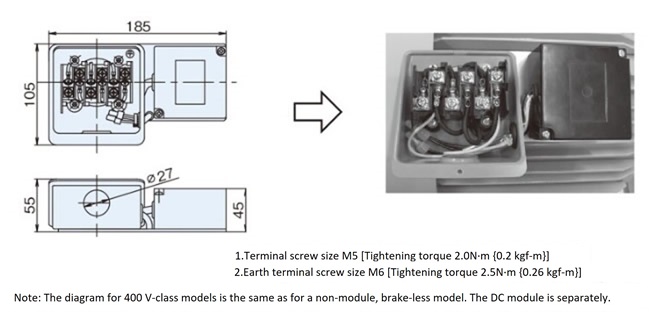

	Terminal box dimensions	Terminal box position
No brake
With brake
