1. Sprockets, gears, etc. to be mounted on the outer race should be inlet with the inner circumference E dimension of the outer race (see here) and securely attached with bolts of strength category 10.9 to the tapped holes on the outer race end face.

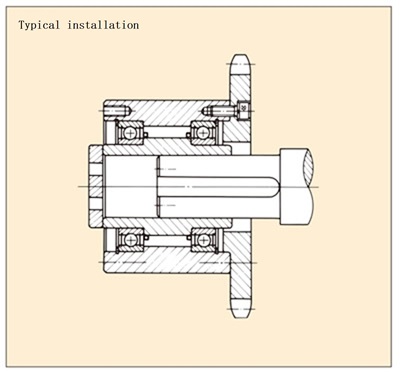

(See installation example ) Tolerance of f7 is recommended for the inlet section.
2. Shaft diameter tolerance of h6 or h7 is recommended.
3. Always use parallel keys and keep a clearance between the top of key and keyway.
4. Key to be used should be in accordance with JIS B1301-1996 (New JIS) parallel key (standard type). Note that some key dimensions are not in accordance with the relationship between the shaft diameter and the key as specified by JIS.
5. When inserting the shaft, apply pressure only to the face of the inner race only.
6. For vertical mounting, please consult TSUBAKI.
7. External thrust load should be supported by other devices, not by the Cam Clutch.
8. Ambient temperature range is –5° to 40°C. Consult us for the temperature that exceeds this range
9. Grease filled type. No lubrication maintenance required.
