Applications Cam Clutch - 14. Material conveyor system
Application
Indexing
Also called rotational intermittent feeding. The constant, cyclical motion of the outer race is converted into intermittent rotational motion and transmitted to the inner race (shaft). This application repeats engagement and overrunning at high frequency.
Overrunning
An application to alternately repeat the conditions where the inner and outer races of the cam clutch engage to transmit the torque and where they continue spinning around depending on the difference in the rotation speed or rotation direction. The operation is the same as the free wheeling of a car.
Supporting model(s)
- ・MZ Series
- ・Special cam clutch
Adopting machine
Material conveyor system
Applications

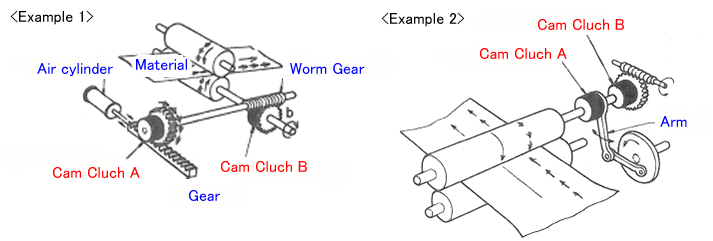

Layout
Purpose of Use and Operation Overview
例1では、インデキシング用とオーバーラング用に2個のカムクラッチを組込んだ例です。
カムクラッチAはエアシリンダによるラックの往復運動を間欠運動に変え、ウォームギヤを介してロールをインデキシング(間欠送り)させます。この場合、カムクラッチBはかみ合っています。ロールをインデキシング無しで連続的に駆動させたい時には、軸bをイの方向に駆動してロールを連続回転させます。この場合カムクラッチBは空転し、カムクラッチA側との縁を切っています。

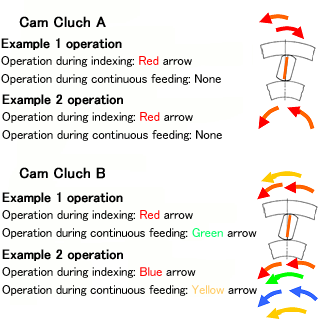

例2でも、カムクラッチAはインデキシング用、カムクラッチBはオーバランニング用です。
カムクラッチAの外輪はアームに、内輪は軸に取付けられています。カムクラッチBの外輪はウォームホイルに内輪は軸に取付けられています。
インデキシングではカムクラッチAにて間欠送りを行い、連続運転ではウォームギヤを回転させカムクラッチBはかみ合いカムクラッチAの内輪が空転します。
When Tsubaki's cam clutches are used
It is necessary to select the cam clutch based on the roller shaft diameter, necessary torque, rotation speed, and other criteria. You can select a cam clutch according to your usage conditions, sprocket model number, and mounting method. Moreover, you can select specifications suited to your lubrication requirements such as high ambient temperature.
Advantage of using the cam clutch
- ・The cam clutch switches between overrunning and engagement automatically simply based on the difference in the rotation speed.
- ・Operation can be switched without the need for a device controlling intermittent feeding and continuous feeding.
