Cable carrier Plastic series TKP Series Major Specifications
TKP91H80W200R200
Construction
[Click to enlarge ]
PDF Outline Drawing
Contact us for details.
DXF drawings / 3D CAD data
Please re-set the Inner width etc. on the linked screen.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Basic Package
| Maximum travel length m | 8.8 |
|---|---|
| Cable/hose maximum outer diameter mm | 72 |
| Cable/hose maximum mass kg/m | 60 |
| Maximum travel speed m/min ※1 | 300 |
| Operating Temperature Range | -40ﾟC～80ﾟC |
| Material | Engineering plastic (black) |
| Mass kg/m | 7.0 |
| No. of links per unit | 20 |
Notes
1.150 m/min for support roller arrangement.
2.Cannot be used in acidic or alkaline environments.
| Special types | |
|---|---|
| Gliding arrangement | Available |
| Circular travel arrangement | Not available |
Allowable load graphs
[Click to enlarge ]
・Use the gliding arrangement if the maximum travel length with support rollers in 2 locations is exceeded.

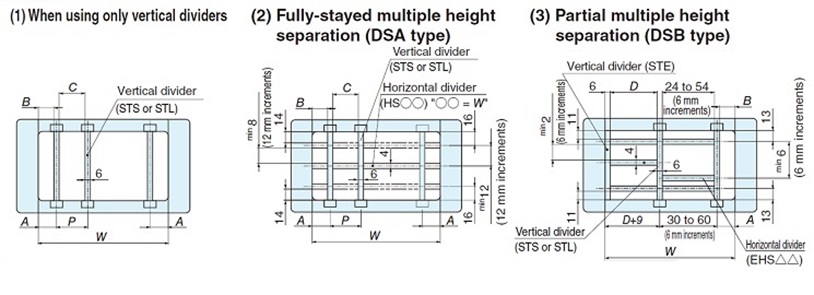

Divider
[Click to enlarge ]
A：Distance from center of vertical divider to end face of link
B：Gap between vertical divider and link
P：Distance between the centers of neighboring vertical dividers
C：Gap between neighboring vertical dividers
D：Gap between neighboring vertical dividers when vertical dividers/dividers for both ends are installed
Vertical divider
[Click to enlarge ]
Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.
| Model No. | Type | Fixing method | A mm | B mm | P mm | C mm | D mm | Mass g/each |
Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TKP91H80-STS | Slide type | Sliding installation | 20～40 | 17～37 | 14～100 | 8～94 | --- | 20 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| TKP91H80-STL | For fixable installation | Fixable installation | 31, 37 | 28, 34 | 18 - 96 (6mm increments) | 12 - 90 (6mm increments) | 22 - 52 (6mm increments) |
20 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| TKP91H80-STE | For both sides | － | --- | --- | --- | --- | 17 | Contact us for details. | Contact us for details. | DXF・3DCAD | |
Notes
- ・The maximum values for A, B, P, C and D are applied when using horizontal dividers.
| Model No. | Mass g/each |
Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|
| TKP91H80-HS200 | 9 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| Model No. | Mass g/each |
Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|
| TKP91H80-EHS22 | 2 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| TKP91H80-EHS24 | 2 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS28 | 3 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS30 | 3 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS34 | 3 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS36 | 4 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS40 | 4 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS42 | 4 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS46 | 4 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS48 | 5 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS52 | 5 | Contact us for details. | Contact us for details. | |
| TKP91H80-EHS54 | 5 | Contact us for details. | Contact us for details. |
Dimension drawings
[Click to enlarge ]
| Pitch P |
Inner height | Inner width W |
Bending radius R |
Mounting height H' |
Leeway length K |
|---|---|---|---|---|---|
| 91 | 80 | 200 | 200 | 518～538 | 91 |
Notes
1.Design and install according to the mounting height H' dimension.
Calculating no. of links
[Click to enlarge ]
Bracket
[Click to enlarge ]
| Moving end side (α) | 26 |
|---|---|
| Fixed end side (β) | 26 |
Moving end bracket

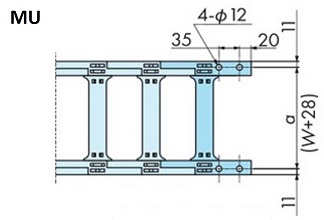

| B arrow view [Click to enlarge ] | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|
|
TKP91H80W200-MU | Engineering plastic (black) with steel bush | 735 | Contact us for details. | Contact us for details. |
Moving end bracket (with clamp rail)

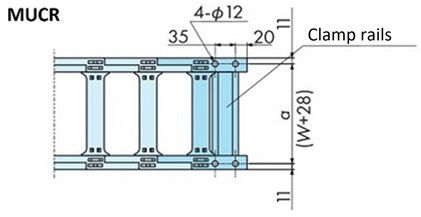

| B arrow view [Click to enlarge ] | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|
|
TKP91H80W200-MUCR | Engineering plastic (black) with steel bush | 855 | Contact us for details. | Contact us for details. |
Fixed end bracket

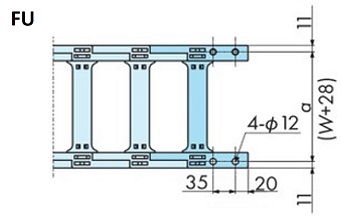

| C arrow view [Click to enlarge ] | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|
|
TKP91H80W200-FU | Engineering plastic (black) with steel bush | 735 | Contact us for details. | Contact us for details. |
Fixed end bracket (with clamp rail)
| C arrow view [Click to enlarge ] | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|
|
TKP91H80W200-FUCR | Engineering plastic (black) with steel bush | 855 | Contact us for details. | Contact us for details. |
※Click here for details on accessories such as strain reliefs
