Cable carrier Plastic series TKP Series  Major Specifications

TKP91H56W200R150

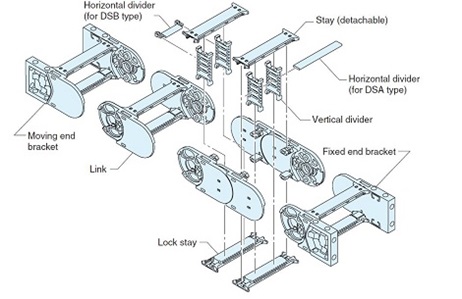

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 6.8
Cable/hose maximum outer diameter mm 50
Cable/hose maximum mass kg/m 50
Maximum travel speed m/min　※1 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 4.6
No. of links per unit 20

Notes
　1.150 m/min for support roller arrangement.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Not available
Circular travel arrangement Not available

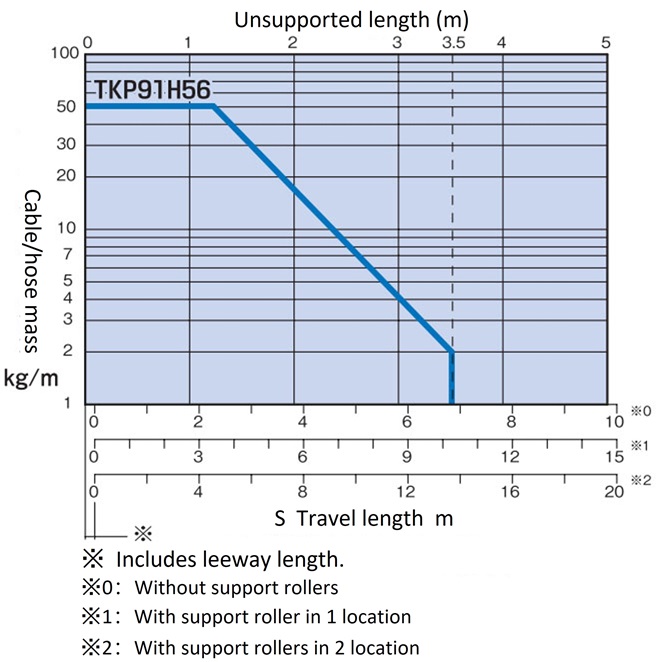

Allowable load graphs


[Click to enlarge ]

Divider


[Click to enlarge ]

A：Distance from center of vertical divider to end face of link
B：Gap between vertical divider and link
P：Distance between the centers of neighboring vertical dividers
C：Gap between neighboring vertical dividers
D：Gap between neighboring vertical dividers when vertical dividers/dividers for both ends are installed

Vertical divider


[Click to enlarge ]

Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.

Vertical divider
Model No. Type Fixing method A
mm		B
mm		P
mm		C
mm		D
mm		Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP91H56-STS Slide type Sliding installation 20～4017～3714～1008～94--- 15 Contact us for details. Contact us for details. DXF・3DCAD
TKP91H56-STL For fixable installation Fixable installation 31, 3728, 3418 - 96
(6mm increments) 		12 - 90
(6mm increments) 		22 - 52
(6mm increments) 		15 Contact us for details. Contact us for details. DXF・3DCAD
TKP91H56-STE For both sides － --------- --- 12 Contact us for details. Contact us for details. DXF・3DCAD

Notes

  • ・The maximum values for A, B, P, C and D are applied when using horizontal dividers.
Horizontal divider
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP91H56-HS200 9 Contact us for details. Contact us for details. DXF・3DCAD
Horizontal divider with end adapters
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP91H56-EHS22 2 Contact us for details. Contact us for details. DXF・3DCAD
TKP91H56-EHS24 2 Contact us for details. Contact us for details.
TKP91H56-EHS28 3 Contact us for details. Contact us for details.
TKP91H56-EHS30 3 Contact us for details. Contact us for details.
TKP91H56-EHS34 3 Contact us for details. Contact us for details.
TKP91H56-EHS36 4 Contact us for details. Contact us for details.
TKP91H56-EHS40 4 Contact us for details. Contact us for details.
TKP91H56-EHS42 4 Contact us for details. Contact us for details.
TKP91H56-EHS46 4 Contact us for details. Contact us for details.
TKP91H56-EHS48 5 Contact us for details. Contact us for details.
TKP91H56-EHS52 5 Contact us for details. Contact us for details.
TKP91H56-EHS54 5 Contact us for details. Contact us for details.

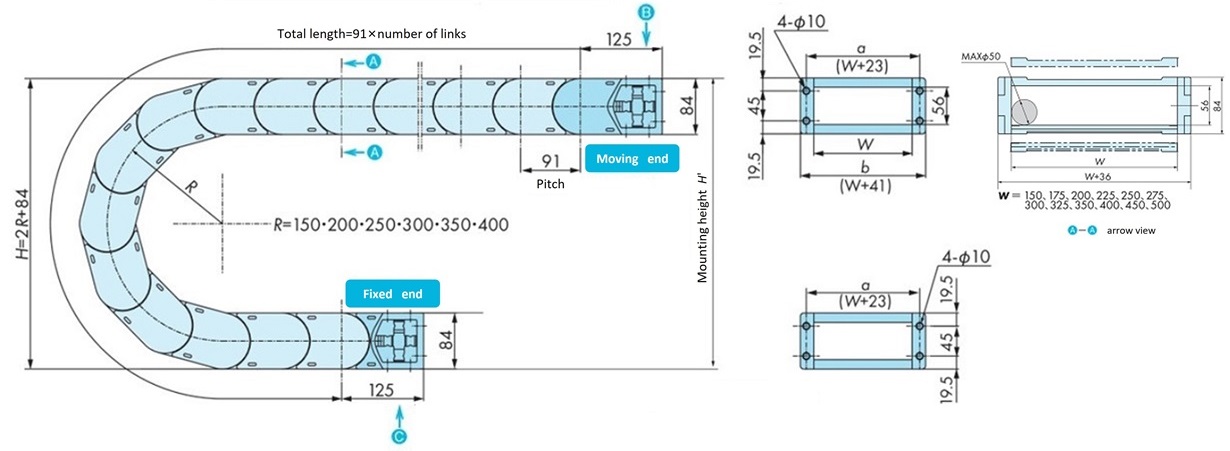

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
91 56 200 150 394～414 91

Notes
　1.Design and install according to the mounting height H' dimension.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

Bracket


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 35
Fixed end side (β) 35

Moving end bracket

B arrow view [Click to enlarge ] Model No. Material Mass 　g/each Standard Price Delivery
TKP91H56W200-MU Engineering plastic (black) with steel bush 526 Contact us for details. Contact us for details.

Moving end bracket (with clamp rail)

B arrow view [Click to enlarge ] Model No. Material Mass 　g/each Standard Price Delivery
TKP91H56W200-MUCR Engineering plastic (black) with steel bush 646 Contact us for details. Contact us for details.

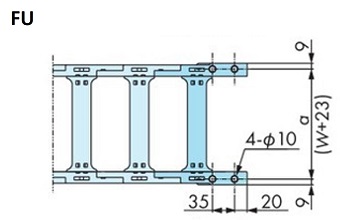

Fixed end bracket

C arrow view [Click to enlarge ] Model No. Material Mass 　g/each Standard Price Delivery
TKP91H56W200-FU Engineering plastic (black) with steel bush 488 Contact us for details. Contact us for details.

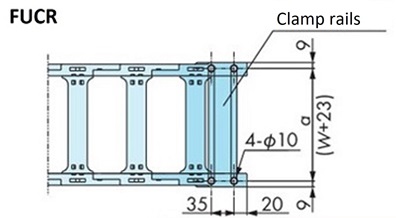

Fixed end bracket (with clamp rail)

C arrow view [Click to enlarge ] Model No. Material Mass 　g/each Standard Price Delivery
TKP91H56W200-FUCR Engineering plastic (black) with steel bush 608 Contact us for details. Contact us for details.

※Click here for details on accessories such as strain reliefs
