Cable carrier Plastic series TKP Series  Major Specifications

TKP68H46-30W100R75

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 4.8
Cable/hose maximum outer diameter mm 41
Cable/hose maximum mass kg/m 12
Maximum travel speed m/min　※1 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 2.0
No. of links per unit 50

Notes
　1.150 m/min for support roller arrangement.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Available
Circular travel arrangement Available

Allowable load graphs


[Click to enlarge ]

・Use the gliding arrangement if the maximum travel length with support rollers in 2 locations is exceeded.

Divider


[Click to enlarge ]

A：Distance from center of vertical divider to end face of link
B：Gap between vertical divider and link
P：Distance between the centers of neighboring vertical dividers
C：Gap between neighboring vertical dividers
D：Gap between neighboring vertical dividers when vertical dividers/dividers for both ends are installed

Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.

Vertical divider
Model No. Type Fixing method A
mm		A'
mm		B
mm		B'
mm		P
mm		C
mm		D
mm		Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP68H46-STAS Sliding type for full seperation Sliding installation 7.25～47.255～47.256～463.75～4610～547.5～51.5--- 4 Contact us for details. Contact us for details. DXF・3DCAD
TKP68H46-STAL Fixable type for full seperation Fixable installation 11.5 - 46.5
(7mm increments) 		Same as A 10.25 - 45.25
(7mm increments) 		Same as B 14 - 42
(7mm increments) 		11.5 - 39.5
(7mm increments) 		--- 4 Contact us for details. Contact us for details. DXF・3DCAD
TKP68H46-STBL Fixable type for partial seperation min11.5
(7mm increments) 		---min8.5
(7mm increments) 		---28 - 56
(7mm increments) 		22 - 50
(7mm increments) 		23.5 - 51.5
(7mm increments) 		7 Contact us for details. Contact us for details. DXF・3DCAD
TKP68H46-STBE For both sides － --------------- --- 7 Contact us for details. Contact us for details. DXF・3DCAD
Horizontal divider
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP68H46-HS100 7 Contact us for details. Contact us for details. DXF・3DCAD
Horizontal divider with end adapters
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP68H46-EHS22 2 Contact us for details. Contact us for details. DXF・3DCAD
TKP68H46-EHS23.5 2 Contact us for details. Contact us for details.
TKP68H46-EHS29 3 Contact us for details. Contact us for details.
TKP68H46-EHS30.5 3 Contact us for details. Contact us for details.
TKP68H46-EHS36 3 Contact us for details. Contact us for details.
TKP68H46-EHS37.5 4 Contact us for details. Contact us for details.
TKP68H46-EHS43 4 Contact us for details. Contact us for details.
TKP68H46-EHS44.5 4 Contact us for details. Contact us for details.
TKP68H46-EHS50 4 Contact us for details. Contact us for details.
TKP68H46-EHS51.5 5 Contact us for details. Contact us for details.

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
68 46 100 75 223～243 68

Notes
　1.Design and install according to the mounting height H' dimension.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

ブラケット/取付金具


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 53
Fixed end side (β) 53

Moving end bracket

B arrow view [Click to enlarge ] Dimensions 　mm Model No. Material Mass 　g/each Standard Price Delivery
A：78
B：122
 TKP68H46W100-MU Engineering plastic (black) 143 Contact us for details. Contact us for details.

Moving end bracket

B arrow view [Click to enlarge ] Dimensions 　mm Model No. Material Mass 　g/each Standard Price Delivery
A：78
B：110
 TKP68H46-MOA Steel (Trivalent chromate plating) 200 Contact us for details. Contact us for details.
TKP68H46-MOAS Stainless Contact us for details. Contact us for details.

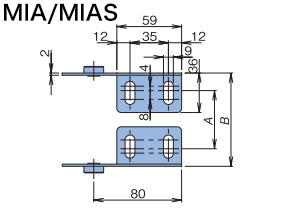

A：78
B：110
 TKP68H46-MIA Steel (Trivalent chromate plating) 200 Contact us for details. Contact us for details.
TKP68H46-MIAS Stainless Contact us for details. Contact us for details.

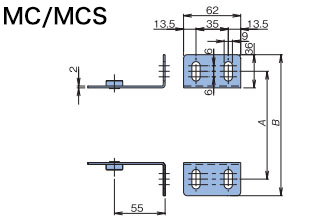

A：142
B：178
 TKP68H46-MC Steel (Trivalent chromate plating) 206 Contact us for details. Contact us for details.
TKP68H46-MCS Stainless Contact us for details. Contact us for details.

Fixed end bracket

C arrow view [Click to enlarge ] Dimensions 　mm Model No. Material Mass 　g/each Standard Price Delivery
A：78
B：122
 TKP68H46W100-FU Engineering plastic (black) 137 Contact us for details. Contact us for details.

Fixed end bracket

C arrow view [Click to enlarge ] Dimensions 　mm Model No. Material Mass 　g/each Standard Price Delivery
A：78
C：114
 TKP68H46-FOA Steel (Trivalent chromate plating) 174 Contact us for details. Contact us for details.
TKP68H46-FOAS Stainless Contact us for details. Contact us for details.

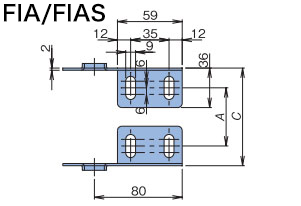

A：78
C：114
 TKP68H46-FIA Steel (Trivalent chromate plating) 174 Contact us for details. Contact us for details.
TKP68H46-FIAS Stainless Contact us for details. Contact us for details.
A：142
C：182
 TKP68H46-FC Steel (Trivalent chromate plating) 182 Contact us for details. Contact us for details.
TKP68H46-FCS Stainless Contact us for details. Contact us for details.

※Click here for details on accessories such as strain reliefs
