Cable carrier Plastic series TKP Series Major Specifications
TKP58H39-30W100R125

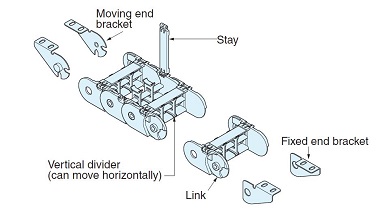

Construction
[Click to enlarge ]
PDF Outline Drawing
Contact us for details.
DXF drawings / 3D CAD data
Please re-set the Inner width etc. on the linked screen.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Basic Package
| Maximum travel length m | 4.5 |
|---|---|
| Cable/hose maximum outer diameter mm | 35 |
| Cable/hose maximum mass kg/m | 8 |
| Maximum travel speed m/min ※1 | 300 |
| Operating Temperature Range | -40ﾟC～80ﾟC |
| Material | Engineering plastic (black) |
| Mass kg/m | 1.8 |
| No. of links per unit | 20 |
Notes
1.150 m/min for support roller arrangement.
2.Cannot be used in acidic or alkaline environments.
| Special types | |
|---|---|
| Gliding arrangement | Available |
| Circular travel arrangement | Available |

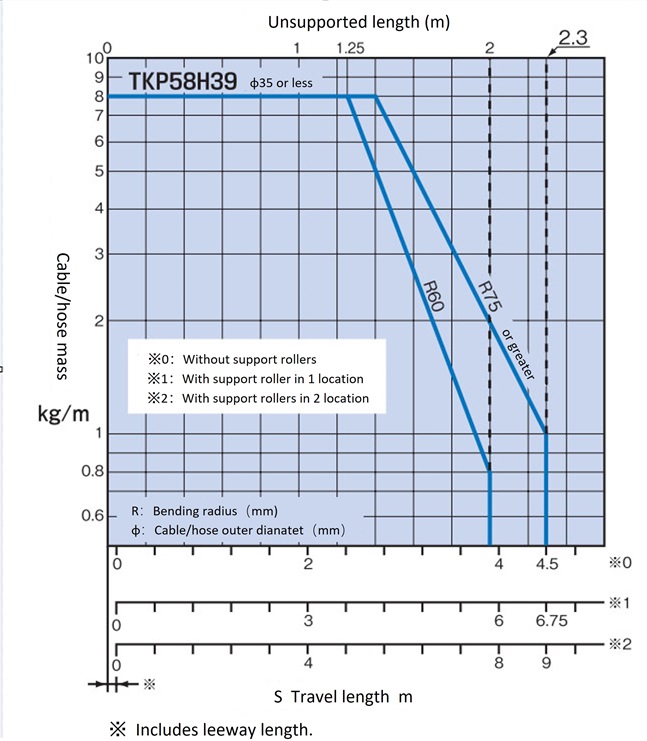

Allowable load graphs
[Click to enlarge ]
・Use the gliding arrangement if the maximum travel length with support rollers in 2 locations is exceeded.
Divider
[Click to enlarge ]
A：Distance from center of vertical divider to end face of link
B：Gap between vertical divider and link
P：Distance between the centers of neighboring vertical dividers
C：Gap between neighboring vertical dividers
Vertical divider
[Click to enlarge ]
Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.
| Model No. | Type | Fixing method | A mm | B mm | P mm | C mm | W1 mm | Mass g/each |
Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TKP58H39-ST | Slide type | Sliding installation | 5～43 | 3.75～41.75 | 10～115 | 7.5～112.5 | 11 - W-13 (1mm increments) |
4 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| Model No. | Mass g/each |
Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|
| TKP58H39-HS100 | 8 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| Model No. | Divider width (integer) | Standard Price | Delivery | DXF drawings 3D CAD data |
|---|---|---|---|---|
| TKP58H39-EHS□□ | □□：11～19 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| TKP58H39-EHS△△ | △△：20～39 | Contact us for details. | Contact us for details. | |
| TKP58H39-EHS▽▽ | ▽▽：40～59 | Contact us for details. | Contact us for details. | |
| TKP58H39-EHS×× | ××：60～84 | Contact us for details. | Contact us for details. | |
| TKP58H39-EHS○○ | ○○：85～104 | Contact us for details. | Contact us for details. |

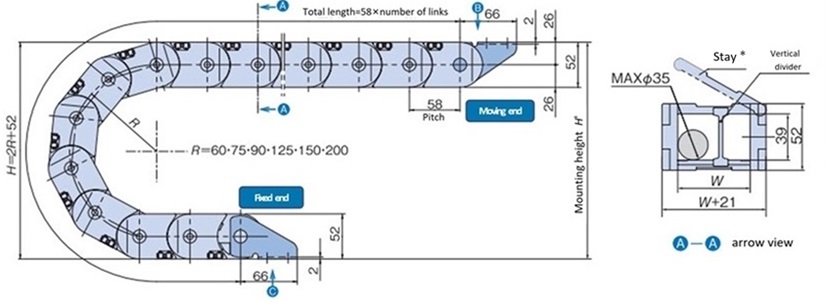

Dimension drawings
[Click to enlarge ]
| Pitch P |
Inner height | Inner width W |
Bending radius R |
Mounting height H' |
Leeway length K |
|---|---|---|---|---|---|
| 58 | 39 | 100 | 125 | 312～332 | 58 |
Notes
1.Design and install according to the mounting height H' dimension.

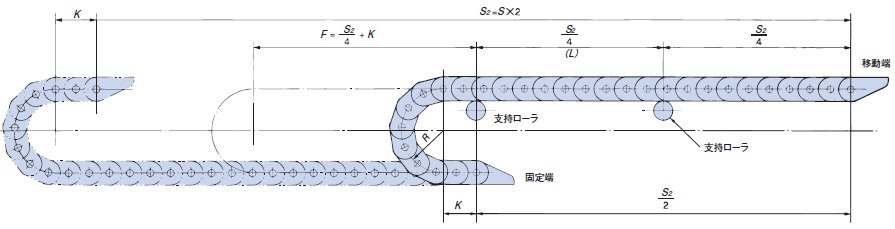

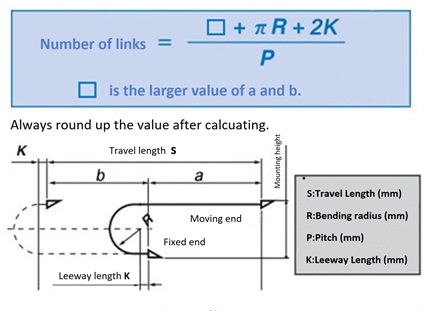

Calculating no. of links
[Click to enlarge ]

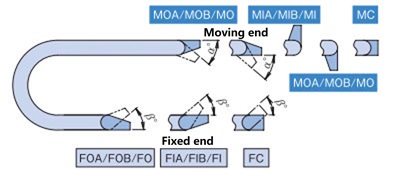

Mounting brackets/steel brackets
[Click to enlarge ]
| Moving end side (α) | 0 |
|---|---|
| Fixed end side (β) | 67 |
Moving end split type steel bracket
| B arrow view [Click to enlarge ] | Dimensions mm | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|---|
|

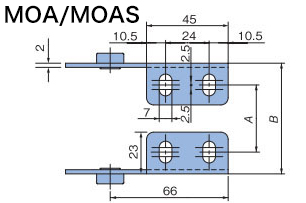

A：87 B：111 |
TKP58H39-MOA | Steel (Trivalent chromate plating) | 127 | Contact us for details. | Contact us for details. |
| TKP58H39-MOAS | Stainless | Contact us for details. | Contact us for details. | |||
|

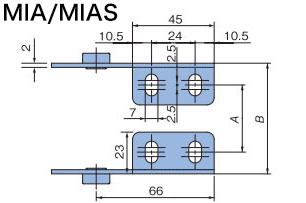

A：87 B：111 |
TKP58H39-MIA | Steel (Trivalent chromate plating) | 127 | Contact us for details. | Contact us for details. |
| TKP58H39-MIAS | Stainless | Contact us for details. | Contact us for details. | |||
|

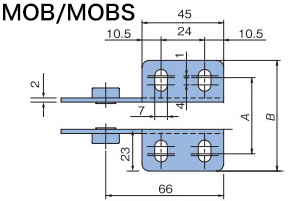

A：133 B：153 |
TKP58H39-MOB | Steel (Trivalent chromate plating) | 127 | Contact us for details. | Contact us for details. |
| TKP58H39-MOBS | Stainless | Contact us for details. | Contact us for details. | |||
|

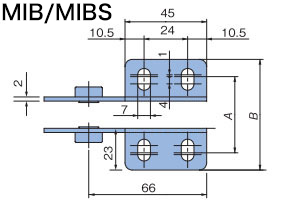

A：133 B：153 |
TKP58H39-MIB | Steel (Trivalent chromate plating) | 127 | Contact us for details. | Contact us for details. |
| TKP58H39-MIBS | Stainless | Contact us for details. | Contact us for details. | |||
|

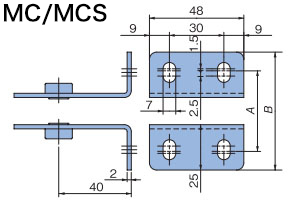

A：137 B：158 |
TKP58H39-MC | Steel (Trivalent chromate plating) | 128 | Contact us for details. | Contact us for details. |
| TKP58H39-MCS | Stainless | Contact us for details. | Contact us for details. |
Moving end single-part steel bracket
| B arrow view [Click to enlarge ] | Dimensions mm | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|---|
|
A：80 B：111 |
TKP58H39W100-MO | Steel (Trivalent chromate plating) | 145 | Contact us for details. | Contact us for details. |
| TKP58H39W100-MOS | Stainless | Contact us for details. | Contact us for details. | |||
|
A：80 B：111 |
TKP58H39W100-MI | Steel (Trivalent chromate plating) | 145 | Contact us for details. | Contact us for details. |
| TKP58H39W100-MIS | Stainless | Contact us for details. | Contact us for details. |
Fixed end single-part steel bracket
| C arrow view [Click to enlarge ] | Dimensions mm | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|---|
|
A：87 C：117 |
TKP58H39-FOA | Steel (Trivalent chromate plating) | 104 | Contact us for details. | Contact us for details. |
| TKP58H39-FOAS | Stainless | Contact us for details. | Contact us for details. | |||
|

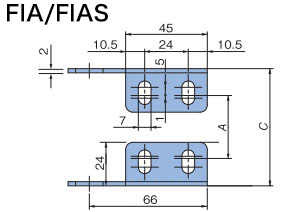

A：87 C：117 |
TKP58H39-FIA | Steel (Trivalent chromate plating) | 104 | Contact us for details. | Contact us for details. |
| TKP58H39-FIAS | Stainless | Contact us for details. | Contact us for details. | |||
|

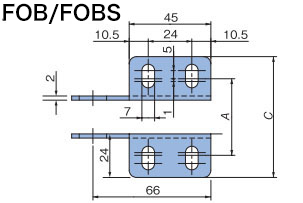

A：133 C：160 |
TKP58H39-FOB | Steel (Trivalent chromate plating) | 104 | Contact us for details. | Contact us for details. |
| TKP58H39-FOBS | Stainless | Contact us for details. | Contact us for details. | |||
|

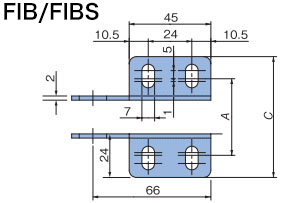

A：133 C：160 |
TKP58H39-FIB | Steel (Trivalent chromate plating) | 104 | Contact us for details. | Contact us for details. |
| TKP58H39-FIBS | Stainless | Contact us for details. | Contact us for details. | |||
|

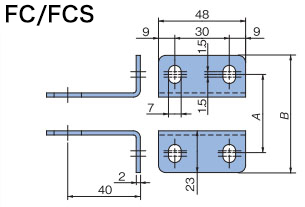

A：137 B：158 |
TKP58H39-FC | Steel (Trivalent chromate plating) | 96 | Contact us for details. | Contact us for details. |
| TKP58H39-FCS | Stainless | Contact us for details. | Contact us for details. |
Fixed end single-part steel bracket
| C arrow view [Click to enlarge ] | Dimensions mm | Model No. | Material | Mass g/each | Standard Price | Delivery |
|---|---|---|---|---|---|---|
|
A：80 C：116 |
TKP58H39W100-FO | Steel (Trivalent chromate plating) | 125 | Contact us for details. | Contact us for details. |
| TKP58H39W100-FOS | Stainless | Contact us for details. | Contact us for details. | |||
|
A：80 C：116 |
TKP58H39W100-FI | Steel (Trivalent chromate plating) | 125 | Contact us for details. | Contact us for details. |
| TKP58H39W100-FIS | Stainless | Contact us for details. | Contact us for details. |
・MOA and MIA, MOB and MIB are common parts, but parts differ for MOA/MIA and MOB/MIB. Also, FOA, FIA, FOB and FIB are common parts.
※Click here for details on accessories such as strain reliefs
