Cable carrier Plastic series TKP Series  Major Specifications

TKP25H15-30W30R28M

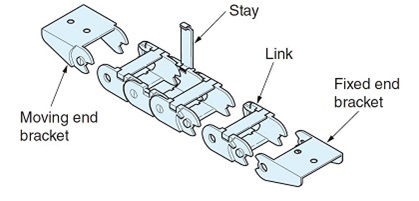

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

(The dimensions of TKP series MW type are the same as TKP series. )

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 1.2
Cable/hose maximum outer diameter mm 13
Cable/hose maximum mass kg/m 1
Maximum travel speed m/min　※1 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (gray)
Mass kg/m 0.3
No. of links per unit 40

Notes
　1.150 m/min for support roller arrangement.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Not available
Circular travel arrangement Not available

Notes

1.The overall dimensions and structure are the same as the standard types. Refer to the standard types.

2.The leeway length for MW Type differs from the standard types, so the number of required links will also differ. Refer to the leeway lengths.

3.If considering usage in a vertical installation, etc., with a travel length that exceeds the load diagram for the standard installation (Refer to the examples of cable carrier installations.), contact a Tsubaki representative.

4.Contact a Tsubaki representative for usage in a gliding arrangement or circular travel arrangement.

5.TKP45H25 steel bracket is a common part with the steel standard bracket.

6.Be aware that TKP45H25 single-part steel bracket cannot be used.

7.Be aware that TKP45H25 horizontal divider with end stoppers (DSB type) cannot be used.

8.Do not mix MW Type and standard type cable carriers. Install problems may occur, which can cause improper bending and links to fall off.

9.Do not use MW Type vertical and horizontal dividers on standard type cable carriers.

10.When ordering MW specifications, please specify "M" in the model number so that the specifications are clear even for dividers. Example) TKP45H25M-HS58.

11.Aluminum horizontal dividers (TKP45H25-HS58, etc.) for standard type cable carriers have slightly different dimensions than aluminum horizontal dividers (TKP45H25M-HS58, etc.) for MW Type cable carriers. Be aware that standard type horizontal dividers may not be installed to MW Type base chain.

12.Cannot be used in acidic or alkaline environments.

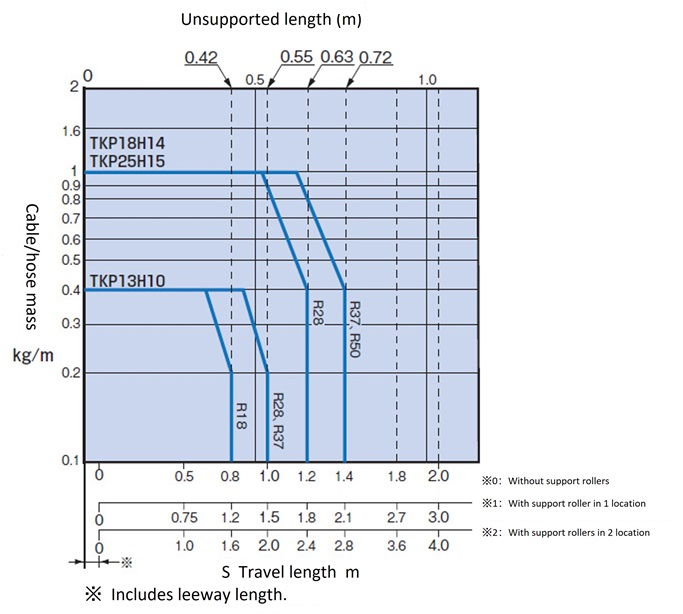

Allowable load graphs


[Click to enlarge ]

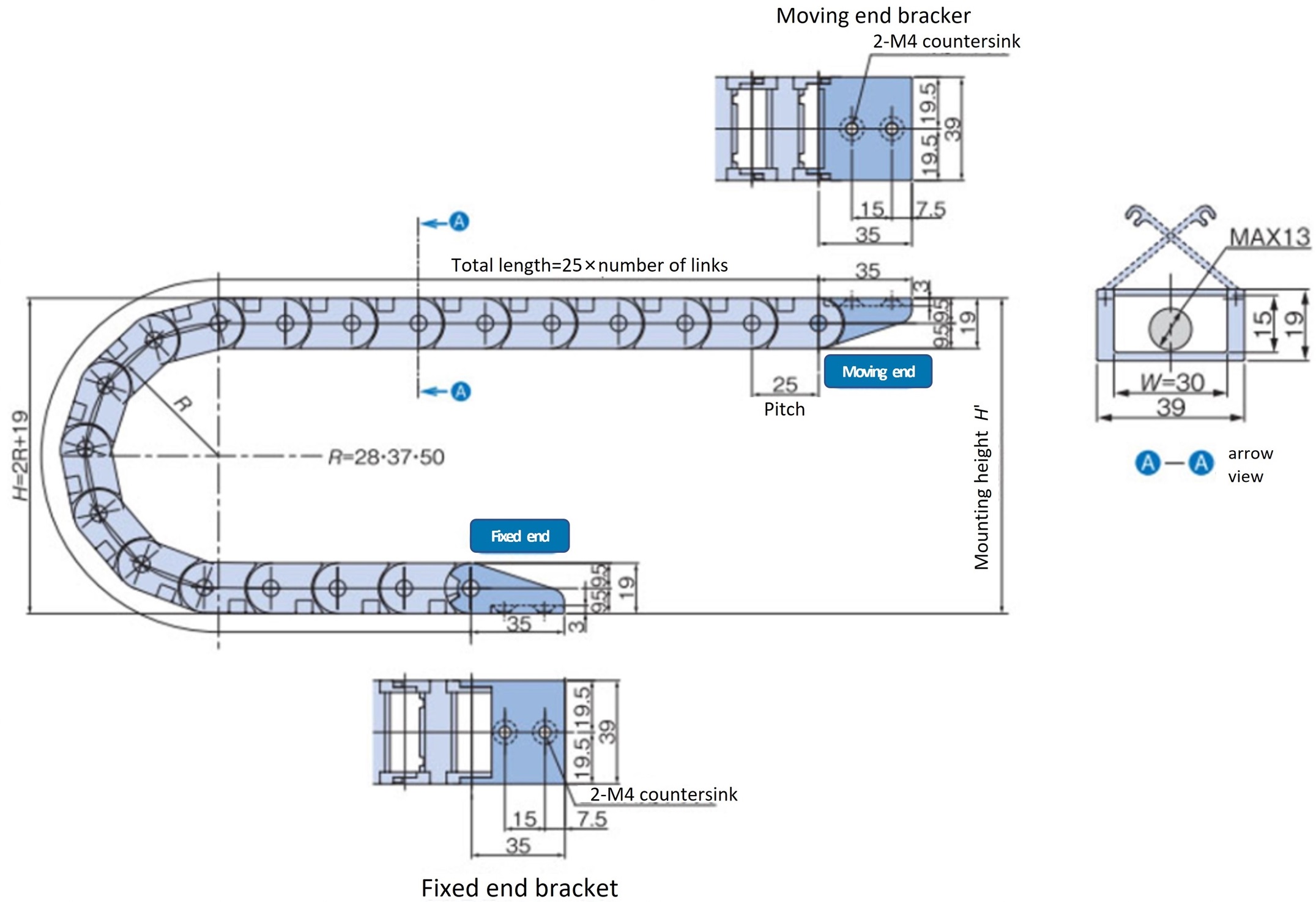

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
25 15 30 28 85～105 38

Notes
　1.Design and install according to the mounting height H' dimension.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

Bracket


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 40
Fixed end side (β) 53

Moving end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP25H15W30M-MO Engineering plastic (gray) 8 Contact us for details. Contact us for details.
TKP25H15W30M-MI Engineering plastic (gray) 8 Contact us for details. Contact us for details.

Fixed end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP25H15W30M-FO Engineering plastic (gray) 7 Contact us for details. Contact us for details.
TKP25H15W30M-FI Engineering plastic (gray) 7 Contact us for details. Contact us for details.

・FO and FI brackets are common parts.

※Click here for details on accessories such as strain reliefs
