Cable carrier Plastic series TKP Series  Major Specifications

TKP18H14-30W15R28TC

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 1.5
Cable/hose maximum outer diameter mm 12
Cable/hose maximum mass kg/m 1
Maximum travel speed m/min　※1 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 0.3
No. of links per unit 55

Notes
　1.150 m/min for support roller arrangement.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Not available
Circular travel arrangement Not available

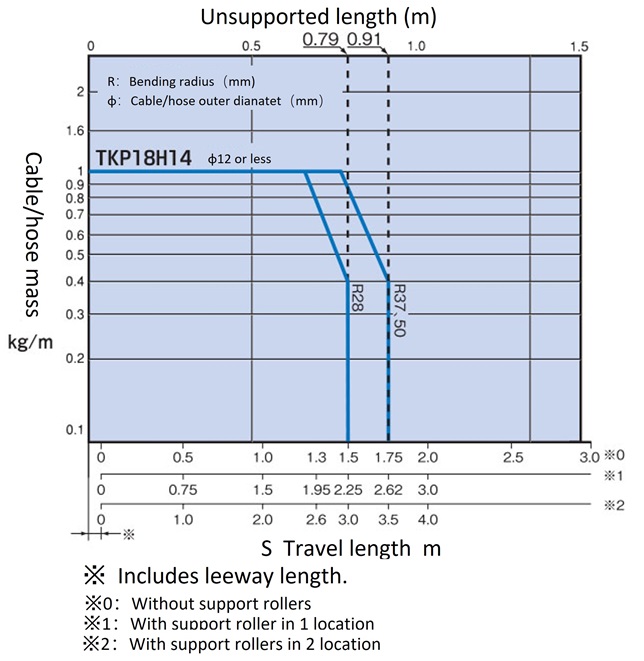

Allowable load graphs


[Click to enlarge ]

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
18 14 15 28 88～108 18

Notes
　1.Design and install according to the mounting height H' dimension.
　2.Stays are delivered uninstalled.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

Bracket


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 45
Fixed end side (β) 37

Moving end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP18H14W15TC-MO Engineering plastic (black) 7 Contact us for details. Contact us for details.
TKP18H14W15TC-MI Engineering plastic (black) 7 Contact us for details. Contact us for details.

Fixed end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP18H14W15TC-FO Engineering plastic (black) 7 Contact us for details. Contact us for details.
TKP18H14W15TC-FI Engineering plastic (black) 7 Contact us for details. Contact us for details.

・Plastic bracket MO and MI, FO and FI are common parts.

※Click here for details on accessories such as strain reliefs
