Cable carrier Plastic series TKP Series  Major Specifications

TKP17H11-30W10R17

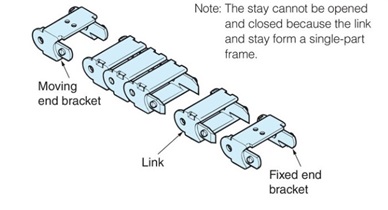

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 1.2
Cable/hose maximum outer diameter mm 7
Cable/hose maximum mass kg/m 0.4
Maximum travel speed m/min 150
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 0.1
No. of links per unit 60

Notes
　1.TKP17H11 has slits in the links. Use flexible cables/hoses so that they do not protrude from the slits.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Not available
Circular travel arrangement Not available

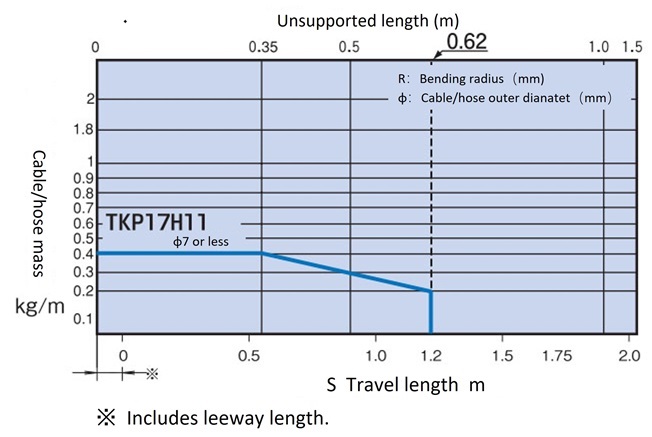

Allowable load graphs


[Click to enlarge ]

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
17 11 10 17 58～78 17

Notes
　1.Design and install according to the mounting height H' dimension.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

Bracket


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 60
Fixed end side (β) 55

Moving end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP17H11W10-MO Engineering plastic (black) 2 Contact us for details. Contact us for details.
TKP17H11W10-MI Engineering plastic (black) 2 Contact us for details. Contact us for details.

Fixed end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP17H11W10-FO Engineering plastic (black) 2 Contact us for details. Contact us for details.
TKP17H11W10-FI Engineering plastic (black) 2 Contact us for details. Contact us for details.

・FO and FI brackets are common parts.

※Click here for details on accessories such as strain reliefs
