Position detection sensor

A total of four limit sensors are installed, two for upper and lower limit stroke sensors, and two for upper and lower limit speed reduction sensors.

Connect to the appropriate upper sequence signal line.

Position detecting sensor SPEC.

Model EE-SX972-C1(OMRON)
Supply voltage DC5～24V±10%
Ripple (p-p): 10% max
Control output NPN open collector type (Load current: 50 mA or less )
Output configuration OUT1：Light-ON 　OUT2：Dark-ON
Electric circuit Electric circuit
[Click to enlarge ]

PNP open collector type is also available as a special output specification, so please consult us.

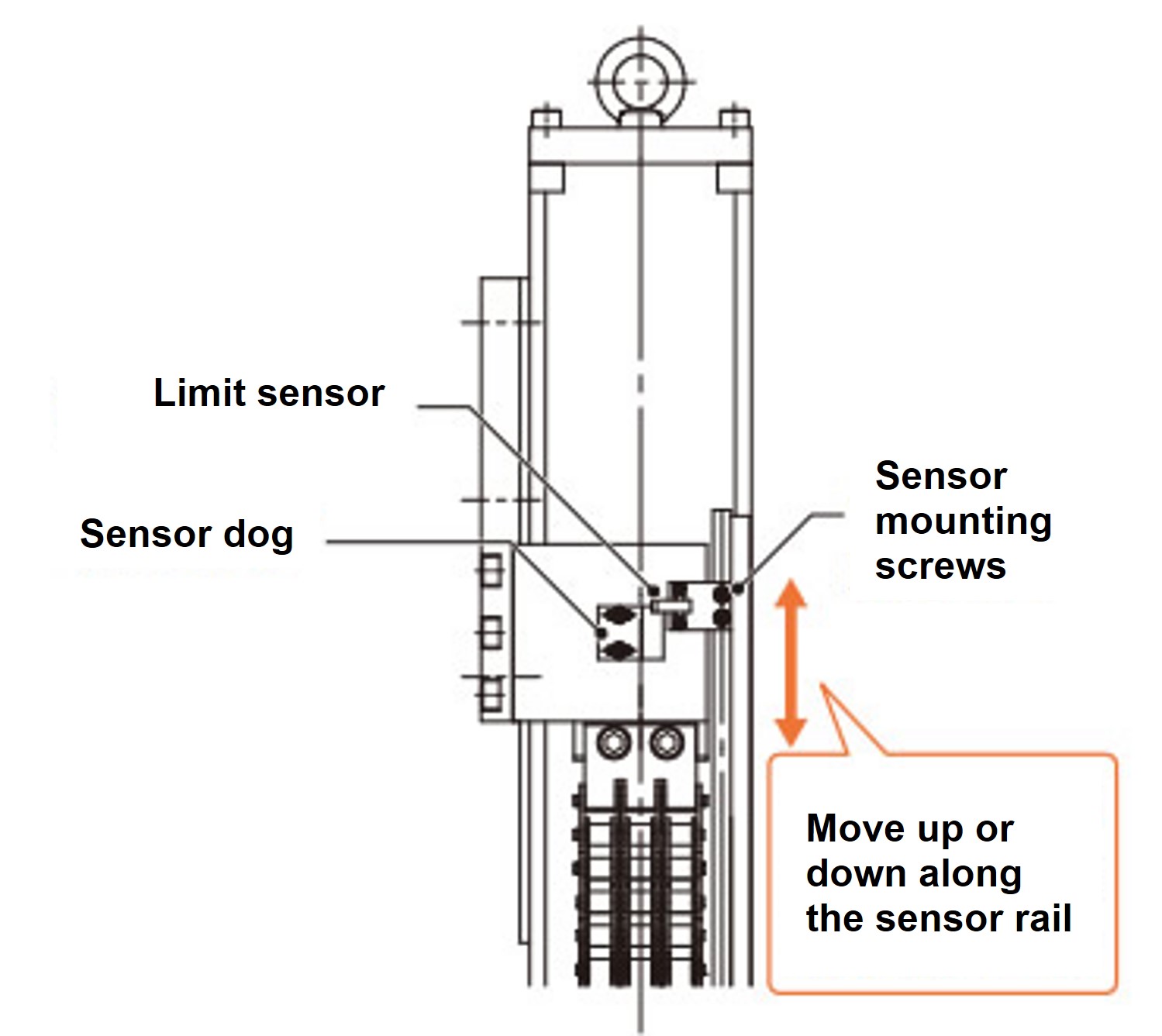

Adjustment Procedure

  • 1. Move ZIP MASTER to the specified position.
    (Ascending or descending )
  • 2. Temporarily loosen the sensor mounting screws (cross-shaped recessed rounded head screws; M4 × 8), and move the sensor up or down to adjust the detect position.

    ※The speed reduction sensor must have a self-holding circuit.

    ※See the inspection procedure (click here) to remove the cover.

Adjustment Procedure

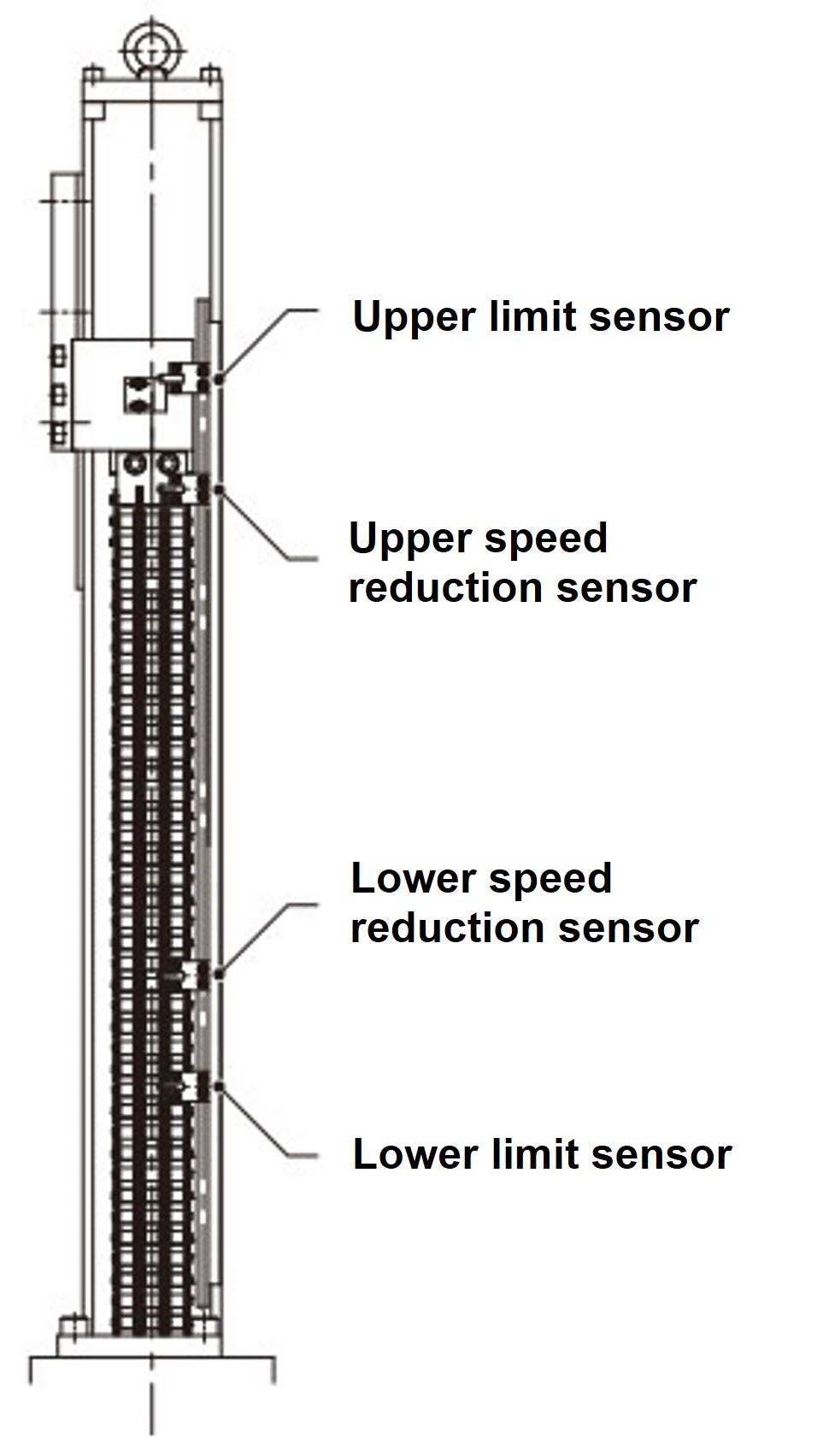

Limit sensor mounting position

Limit sensor mounting position
