Rectifiers (DC Modules)

The built-in DC module is connected with the motor lead wire. When employing a DC external wiring circuit, follow the connecting diagrams.

If instructed by the customer at time of order, we will connect the DC external wiring before we ship the product to the customer.

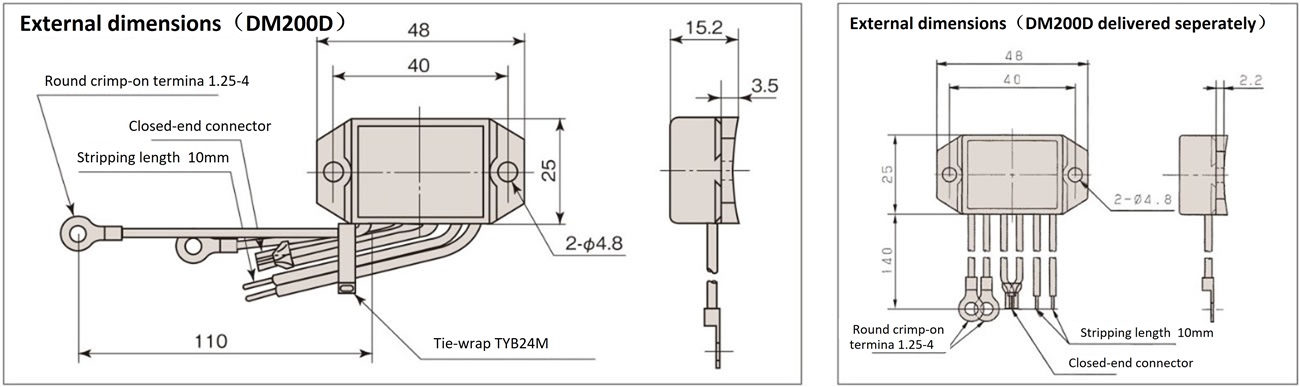

When separate delivery of the DC module is necessary, such as when the DM200D will be used in the control panel, etc., the items in the following illustration will be delivered if the customer requests this at time of order.
