Technical Data High-speed lifters Zip Chain Lifter Handling
Checking the item upon arrival/Transporting/Installation
This section describes the general handling of ZIP CHAIN LIFTER.
For details, please refer to the instruction manual included with the product.
Inspection upon Receipt of Product
Check for the following when ZIP CHAIN LIFTER is delivered. If you have any problems or questions, please contact the store where you purchased the product.
- ・Check the nameplate to verify the model number (1), manufacturing number (2), and drawing number (3) match the requested product (see Fig. 1).
- ・All accessories are provided.
- ・No parts were damaged during transport.
- ・No screws or nuts are loose.
(Fig. 1)Reading the nameplate
Include the model number (1), manufacturing number (2), and drawing number (3) when contacting Tsubaki with any problems or questions.

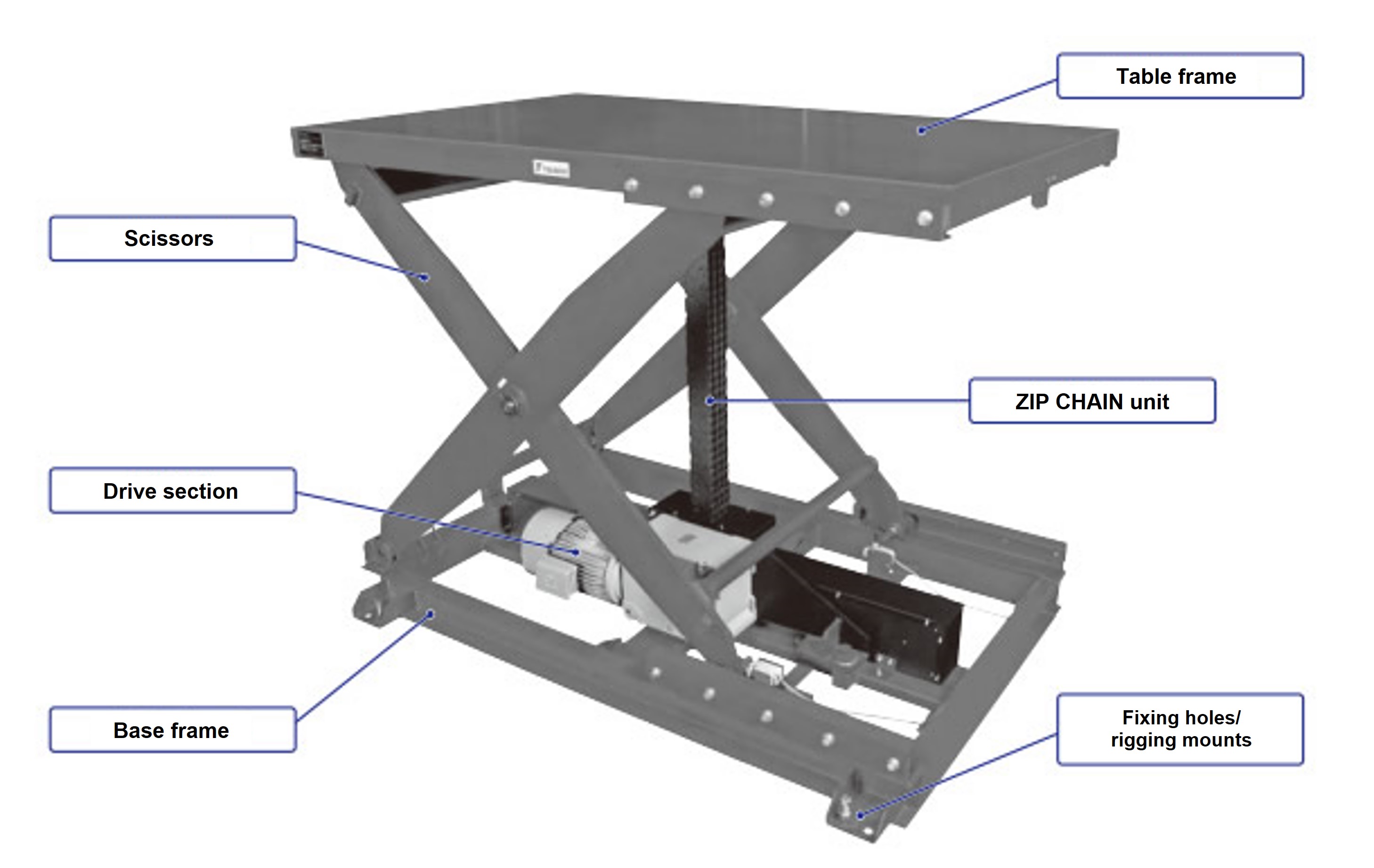

Basic Structure
ZSL1000 Series
※For details of each product, please refer to the instruction manuals or the major specification pages on the "TSUBAKI Power Transmission Products Information Site".
Transporting
Secure ZIP CHAIN LIFTER using the four holes on the base frame corners, and transport using a crane.
When transporting by a forklift, carry ZIP CHAIN LIFTER by balancing the entire device with the base frame on the forks.
*Do not carry the lifter by inserting the forks under the table frame.
Installation
Install the lifter on a flat and level surface. Secure the lifter in place before operation. The fixing holes/rigging mounts are located on the four corners of the base frame.
(See the above equipment overview. )
