This section describes general use of gear motors, hypoid motors, and croise motors.

For more information, see the instruction manual provided with the product.

Inspection upon Receipt of Product

Check the following items upon receipt of your reducer.

Contact Tsubaki representative if any defects are found, or if you have any questions.

  • (1) The outlet, reduction ratio, model number, voltage, and other items on the nameplate match the product you ordered.
  • (2) All accessories (such as pressure vent) are provided.
  • (3) No parts were damaged during transport.
  • (4) No screws or nuts are loose.

1. Reading the nameplate

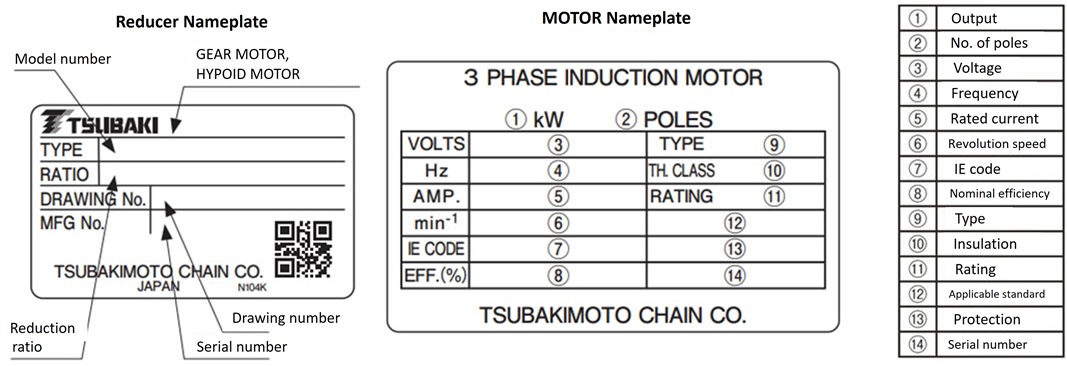

0.1 ～ 0.4kW

Reading the nameplate

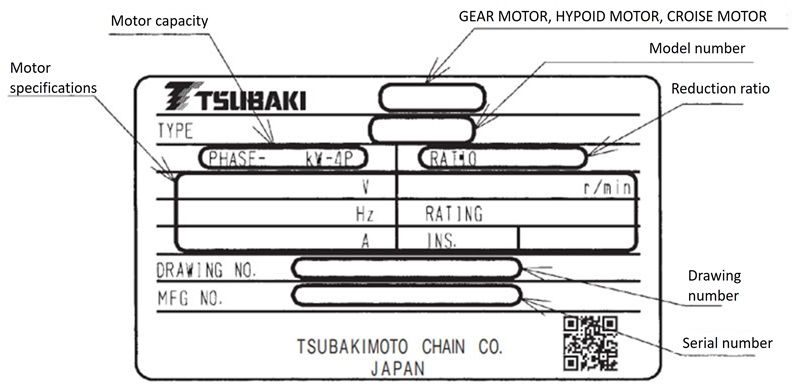

0.75 ～ 5.5kW

Reading the nameplate

When inquiring, please provide the following information: (1) TYPE (Model), (2) RATIO (Reduction ratio), (3) MFG. No. (Manufacturing No.), and (4) DRAWING NO. (Drawing No.).
