Technical Data  Reducers  Miter and Bevel Gear Boxes  Handling

This section contains general information regarding the handling of your reducer.

For details, refer to the manual supplied with your reducer

1. Before using the product

  • (1)Before installing, check the nameplate to verify that the listed specifications match those requested.
    Note) Particularly, check the oil gauge and plug positions to ensure that the mounting type is correct, along with the rotation specifications.
    (ED2 & 4 and ARA Gear Boxes use grease lubrication; they do not have oil gauges. )
  • (2)Check for any visible damage incurred during transportation.
  • (3)Check for any loose bolts.

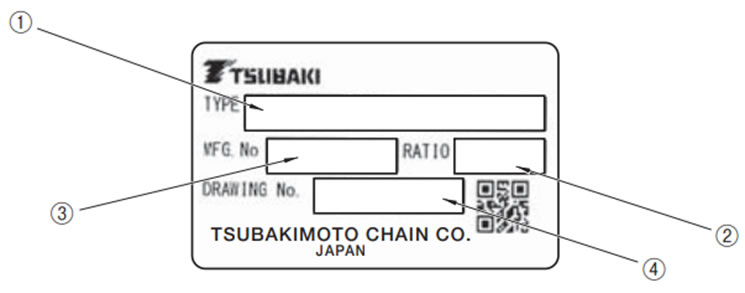

Reading the nameplate

Reading the nameplate
  • (1)TYPE(Model No. )
  • (2)RATIO(Reduction ratio )
  • (3)MFG. No.(Serial number )
  • (4)DRAWING. No.(DRAWING No. )
