Plastic Roller Table RT 　Major Specifications

RT-SS


Features

  • ・Conveyed goods can be placed directly on rollers without the use of pallets.
  • ・This type has plastic rollers double the width of the ST type (except RT300 series), and can be used for transferring objects having large widths such as shipping crates and pallets.
  • ・Coeffi cient of rolling friction for rollers is from 0.06 to 0.10.
  • ・Gap between plastic rollers does not change even when bending because rollers are mounted above the pitch line of the base chain.

[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Model
(Click the series for more information. )		 Package Max. allowable
conveying load
kg/m2		 Dimensions mm
Pitch
P		 Inner width
W		 Roller
(bush)
diameter
R1		 Plate Plastic roller Pin diameter
d1
Width
H		 Thickness
T		 Outer Diameter
R2		 Length
L2
RT300 　 SS Series 50 9.525 4.78 (5.08) 8.2 1.25 9.2 10.0 3.54
Model Dimensions mm Estimated Mass
kg/m
Total width
C1		 Center distance
C3		 Pin length
L1
RT305-SS 50.0 60.4 74.2 1.68
RT310-SS 100.0 110.4 124.2 2.61
RT315-SS 150.0 160.4 174.2 3.54
RT320-SS 200.0 210.4 224.2 4.47
RT400 　 SS Series 200 12.70 7.95 7.92 11.1 1.5 12.2 50.0 3.92
Model Dimensions mm Estimated Mass
kg/m
Total width
C1		 Center distance
C3		 Pin length
L1
RT404-SS 101.2 115.6 135.6 4.03
RT406-SS 151.2 165.6 185.6 5.40
RT408-SS 201.2 215.6 235.6 6.76
RT410-SS 251.2 265.6 285.6 8.12
RT412-SS 301.2 315.6 335.6 9.48
RT414-SS 351.2 365.6 385.6 10.85
RT416-SS 401.2 415.6 435.6 12.21
RT500 　 SS Series 300 15.875 9.53 10.16 13.9 2.0 15.2 50.0 5.00
Model Dimensions mm Estimated Mass
kg/m
Total width
C1		 Center distance
C3		 Pin length
L1
RT504-SS 101.2 119.0 142.8 5.80
RT506-SS 151.2 169.0 192.8 7.66
RT508-SS 201.2 219.0 242.8 9.48
RT510-SS 251.2 269.0 292.8 11.34
RT512-SS 301.2 319.0 342.8 13.17
RT514-SS 351.2 369.0 392.8 15.03
RT516-SS 401.2 419.0 442.8 16.89
RT518-SS 451.2 469.0 492.8 18.75
RT520-SS 501.2 519.0 542.8 20.54
RT522-SS 551.2 569.0 592.8 22.40
RT524-SS 601.2 619.0 642.8 24.23
RT600 　 SS Series 300 19.05 12.70 11.91 16.8 2.4 18.3 50.0 5.96
Model Dimensions mm Estimated Mass
kg/m
Total width
C1		 Center distance
C3		 Pin length
L1
RT604-SS 101.2 124.0 153.6 6.73
RT608-SS 201.2 224.0 253.6 10.38
RT612-SS 301.2 324.0 353.6 14.03
RT616-SS 401.2 424.0 453.6 17.68
RT620-SS 501.2 542.0 553.6 21.32
RT624-SS 601.2 624.0 653.6 24.97

Notes
　1."○": Made-to-order product.
　　Not available for materials that are not listed in Chain Material Table above.
　2.The base chain for RT300 (#35) is a rollerless bushed type.

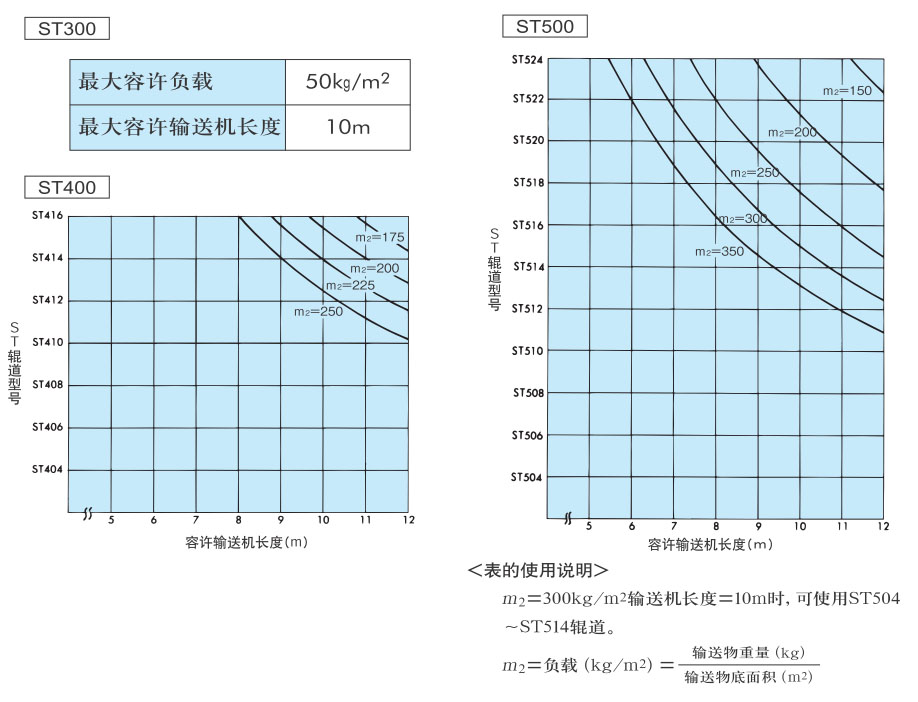

　3.Max. allowable conveying load changes depending on the width and length of the roller table. See conveyance capacity table.

Applicable sprockets

※Click the model No. for detailed information. Click to enlarge.


Applicable
chain
size 		Model No. Number of teeth Pitch Diameter mm Shaft Bore Diameter mm
Plain Bore Maximum
RS35RS35-1B14TQ-R 1442.81 9.515
RS35-1B15TQ-R 1545.80 9.516
RS35-1B16TQ-R 1648.82 9.519
RS35-1B17TQ-R 1751.84 9.520
RS35-1B18TQ-R 1854.8512.723
RS35-1B19TQ-R 1957.8712.726
RS35-1B20TQ-R 2060.8912.728
RS35-1B21TQ-R 2163.9112.730
RS40RS40-1B13TQ-R 1353.0712.720
RS40-1B14TQ-R 1457.0712.723
RS40-1B15TQ-R 1561.0812.726
RS40-1B16TQ-R 1665.1012.728
RS40-1B17TQ-R 1769.1212.732
RS40-1B18TQ-R 1873.1412.735
RS40-1B19TQ-R 1977.1612.738
RS40-1B20TQ-R 2081.1812.741
RS40-1B21TQ-R 2185.2112.745
RS40-1B22TQ-R 2289.2412.747
RS50RS50-1B14TQ-R 1471.3412.731
RS50-1B15TQ-R 1576.3512.735
RS50-1B16TQ-R 1681.3712.738
RS50-1B17TQ-R 1786.3912.743
RS50-1B18TQ-R 1891.4212.746

Notes
　1.Teeth are hardened for any models.
　2.Number of teeth greater than the above can be used with RS sprocket type B.
　3.RS60-1B sprocket with 12 teeth or greater can be used for RT600.
　4.Stainless steel series are the same as above.
　5.This is a made to order item.

Applicable plastic rail

※Click the model No. for detailed information. Click to enlarge.


Base Model No. material symbol Application
PR-RT□00-P P For single strand
