RS-HT chain Major Specifications
RS80-HT-2
[Click to enlarge ]
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Major Specifications
| Size&Package &No. of strands |
No. of strands |
Min. tensile strength kN {kgf} |
Avg. tensile strength kN {kgf} |
Max. allowable tension kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
|---|---|---|---|---|---|---|
| RS80-HT-2 | 2 | 163{16600} | 186{19000} | 27.6{2810} | 6.18 | 120 |
Notes
1.Offset links are not available. Use an even number of links.
2.Made to order

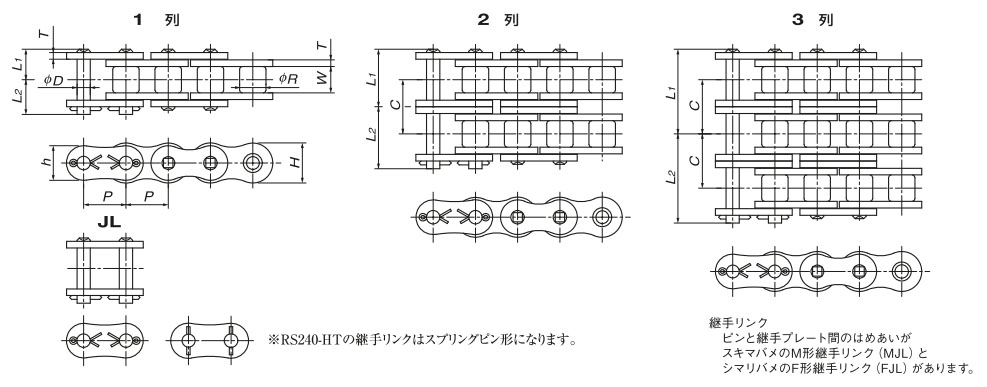

Principal dimensions mm
| Pitch P |
Roller dia. R |
Inner link inner width W |
Plate | Pin | Transverse pitch C mm |
||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | H | h | D | L1 | L2 | ||||
| 25.40 | 15.88 | 15.88 | 4.0 | 24.1 | 20.8 | 7.94 | 34.6 | 37.2 | 32.6 |
Applicable connecting link
| Type | M-type connecting link | F-type connecting link |
|---|---|---|
| Model No. | RS80-HT-2-MWJL | RS80-HT-2-FWJL |
| Standard Price | Contact us for details. | Contact us for details. |
| Delivery | Contact us for details. | Contact us for details. |
Transmission Capacity Table kW 1.7 multiplied multi-strand coefficient
| Small sprocket no. of teeth |
Small sprocket RPM r/min | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 25 | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 700 | |
| Lubrication method AI | Lubrication method AII | Lubrication method B | Lubrication method C | ||||||||
| 9 | 0.99 | 2.26 | 4.23 | 7.89 | 11.4 | 14.7 | 21.3 | 27.5 | 30.9 | 30.9 | |
| 10 | 1.11 | 2.53 | 4.74 | 8.84 | 12.7 | 16.5 | 23.8 | 30.8 | 34.7 | 34.7 | |
| 11 | 1.24 | 2.82 | 5.25 | 9.81 | 14.1 | 18.4 | 26.4 | 34.2 | 38.4 | 38.4 | |
| 12 | 1.36 | 3.09 | 5.76 | 10.8 | 15.5 | 20.1 | 28.9 | 37.6 | 42.3 | 42.3 | |
| 13 | 1.48 | 3.37 | 6.29 | 11.7 | 16.9 | 21.9 | 31.6 | 40.8 | 46.1 | 46.1 | |
| 14 | 1.60 | 3.66 | 6.82 | 12.7 | 18.4 | 23.8 | 34.2 | 44.4 | 50.0 | 50.0 | |
| 15 | 1.72 | 3.93 | 7.34 | 13.7 | 19.7 | 25.5 | 36.9 | 47.8 | 55.4 | 55.4 | |
| 16 | 1.85 | 4.22 | 7.87 | 14.7 | 21.1 | 27.4 | 39.4 | 51.2 | 61.0 | 61.0 | |
| 17 | 1.97 | 4.51 | 8.40 | 15.7 | 22.6 | 29.2 | 42.2 | 54.6 | 66.8 | 66.8 | |
| 18 | 2.09 | 4.79 | 8.94 | 16.7 | 24.0 | 31.1 | 44.9 | 58.1 | 71.1 | 72.8 | |
| 19 | 2.21 | 5.08 | 9.49 | 17.7 | 25.5 | 33.0 | 47.6 | 61.5 | 75.3 | 78.2 | |
| 20 | 2.33 | 5.37 | 10.0 | 18.7 | 26.9 | 34.9 | 50.3 | 65.1 | 79.6 | 82.8 | |
| 21 | 2.45 | 5.66 | 10.6 | 19.7 | 28.4 | 36.7 | 53.0 | 68.7 | 83.8 | 87.2 | |
| 22 | 2.57 | 5.95 | 11.1 | 20.7 | 29.9 | 38.6 | 55.8 | 72.1 | 88.2 | 91.6 | |
| 23 | 2.69 | 6.24 | 11.6 | 21.8 | 31.3 | 40.6 | 58.5 | 75.7 | 92.5 | 96.2 | |
| 24 | 2.81 | 6.55 | 12.2 | 22.8 | 32.8 | 42.5 | 61.2 | 79.2 | 96.9 | 100 | |
| 25 | 2.91 | 6.83 | 12.8 | 23.8 | 34.3 | 44.4 | 63.9 | 82.8 | 101 | 105 | |
| 26 | 3.03 | 7.12 | 13.3 | 24.8 | 35.7 | 46.2 | 66.6 | 86.4 | 105 | 109 | |
| 28 | 3.26 | 7.72 | 14.4 | 26.9 | 38.8 | 50.2 | 72.3 | 93.7 | 114 | 119 | |
| 30 | 3.50 | 8.31 | 15.5 | 28.9 | 41.7 | 54.1 | 77.9 | 100 | 123 | 131 | |
| 32 | 3.72 | 8.93 | 16.6 | 31.1 | 44.7 | 58.0 | 83.5 | 108 | 132 | 144 | 144 |
| 35 | 4.08 | 9.83 | 18.4 | 34.2 | 49.3 | 63.9 | 92.0 | 119 | 145 | 165 | 165 |
| 40 | 4.66 | 11.4 | 21.3 | 39.4 | 57.0 | 73.8 | 106 | 137 | 168 | 193 | 193 |
| 45 | 5.25 | 12.9 | 24.0 | 44.9 | 64.6 | 83.8 | 120 | 156 | 190 | 221 | 221 |
Notes
1.Use RS Roller Chain in high-speed applications.
| Lubrication method | AI | AII | B | C | |
|---|---|---|---|---|---|
| Method | Manual lubrication | Drip lubrication | Oil bath or slinger disc | Forced lubrication |
