Low-noise chain Major Specifications
RS40-SNS-1
※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Major Specifications
Size&Package &No. of strands |
No. of strands |
Min. tensile strength kN {kgf} |
Max. allowable load kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
---|---|---|---|---|---|
RS40-SNS-1 | 1 | 17.7{1800} | 3.63{370} | 0.64 | 240 |
Notes
1.When using an offset link (OL), the maximum allowable tension is 65% of the above table.
2.Connecting links (JL) are the same as those for RS Roller Chain.
3.Stocked unit

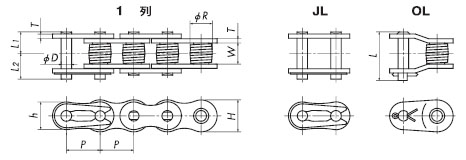

Principal dimensions mm
Pitch P |
Roller dia. R |
Inner link inner width W |
Plate | Pin | |||||
---|---|---|---|---|---|---|---|---|---|
T | H | h | D | L1 | L2 | L | |||
12.70 | 8.5 | 7.95 | 1.5 | 12.0 | 10.4 | 3.97 | 8.25 | 9.95 | 18.2 |
Price・Delivery
Type | Unit |
---|---|
Model No. | RS40-SNS-1-RP-U |
Standard Price | Contact us for details. |
Delivery | Contact us for details. |
Applicable connecting link
Type | Connecting link | Offset link |
---|---|---|
Model No. | RS40-1-MCJL | RS40-SNS-1-OL |
Standard Price | Contact us for details. | Contact us for details. |
Delivery | Contact us for details. | Contact us for details. |
Transmission Capacity Table kW
Small sprocket no. of teeth |
Small sprocket RPM r/min | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 | 25 | 50 | 100 | 200 | 300 | 400 | 500 | 700 | 900 | 1000 | 1200 | 1400 | 1600 | |
Lubrication method AI | Lubrication method AII | Lubrication method B | ||||||||||||
9 | 0.05 | 0.11 | 0.21 | 0.39 | 0.72 | 1.04 | 1.35 | 1.64 | 1.06 | 0.73 | 0.62 | 0.47 | 0.38 | 0.31 |
10 | 0.05 | 0.12 | 0.23 | 0.43 | 0.81 | 1.16 | 1.51 | 1.84 | 1.25 | 0.85 | 0.73 | 0.55 | 0.44 | |
11 | 0.06 | 0.14 | 0.26 | 0.48 | 0.90 | 1.29 | 1.67 | 2.04 | 1.44 | 0.99 | 0.84 | 0.64 | 0.51 | |
12 | 0.07 | 0.15 | 0.28 | 0.53 | 0.98 | 1.42 | 1.84 | 2.24 | 1.64 | 1.12 | 0.96 | 0.73 | ||
13 | 0.07 | 0.17 | 0.31 | 0.57 | 1.07 | 1.54 | 2.00 | 2.45 | 1.85 | 1.27 | 1.08 | 0.82 | ||
14 | 0.08 | 0.18 | 0.33 | 0.62 | 1.16 | 1.67 | 2.17 | 2.65 | 2.06 | 1.42 | 1.21 | |||
15 | 0.08 | 0.19 | 0.36 | 0.67 | 1.25 | 1.80 | 2.34 | 2.86 | 2.29 | 1.57 | 1.34 | |||
16 | 0.09 | 0.21 | 0.39 | 0.72 | 1.34 | 1.93 | 2.50 | 3.06 | 2.52 | 1.73 | ||||
17 | 0.10 | 0.22 | 0.41 | 0.77 | 1.43 | 2.06 | 2.67 | 3.27 | 2.76 | 1.89 | ||||
18 | 0.10 | 0.23 | 0.44 | 0.82 | 1.52 | 2.20 | 2.84 | 3.48 | 3.01 | |||||
19 | 0.11 | 0.25 | 0.46 | 0.87 | 1.62 | 2.33 | 3.02 | 3.69 | 3.26 | |||||
20 | 0.12 | 0.26 | 0.49 | 0.92 | 1.71 | 2.46 | 3.19 | 3.90 | 3.52 | |||||
21 | 0.12 | 0.28 | 0.52 | 0.96 | 1.80 | 2.59 | 3.36 | 4.11 | 3.79 | |||||
22 | 0.13 | 0.29 | 0.54 | 1.01 | 1.89 | 2.73 | 3.53 | 4.32 | 4.06 | |||||
23 | 0.13 | 0.31 | 0.57 | 1.06 | 1.99 | 2.86 | 3.71 | 4.53 | ||||||
24 | 0.14 | 0.32 | 0.60 | 1.11 | 2.08 | 3.00 | 3.88 | 4.74 | ||||||
25 | 0.15 | 0.33 | 0.62 | 1.16 | 2.17 | 3.13 | 4.06 | 4.96 | ||||||
26 | 0.15 | 0.35 | 0.65 | 1.21 | 2.27 | 3.27 | 4.23 | 5.17 | ||||||
28 | 0.17 | 0.38 | 0.71 | 1.32 | 2.46 | 3.54 | 4.58 | 5.60 | ||||||
30 | 0.18 | 0.41 | 0.76 | 1.42 | 2.65 | 3.81 | 4.94 | 6.04 | ||||||
32 | 0.19 | 0.44 | 0.81 | 1.52 | 2.84 | 4.09 | 5.29 | |||||||
35 | 0.21 | 0.48 | 0.90 | 1.67 | 3.13 | 4.50 | 5.83 | |||||||
40 | 0.24 | 0.56 | 1.04 | 1.93 | 3.61 | 5.20 | ||||||||
45 | 0.28 | 0.63 | 1.18 | 2.20 | 4.10 | 5.91 |
Notes
1.kW ratings when using a 1-pitch offset link (OL) are 80% of the above.
Lubrication method | AI | AII | B | |
---|---|---|---|---|
Method | Manual lubrication | Drip lubrication | Oil bath or slinger disc |
