RS roller chain 　Major Specifications

RS50-6


[Click to enlarge ]

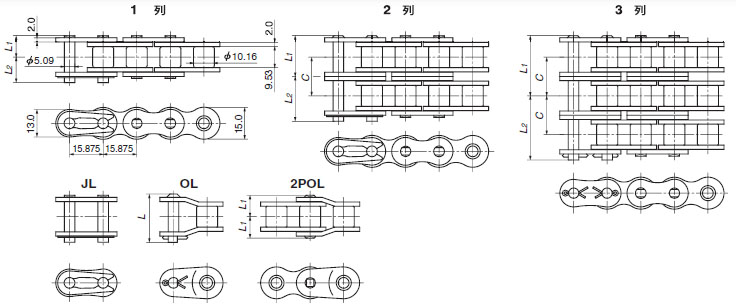

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Size &
No. of strands 		No. of
strands 		Dimensions
L1
mm		Dimensions
L2
mm		Offset pin
length
L
mm		Transverse pitch
C
mm		JIS tensile strength
kN {kgf}		 Min. tensile
strength
kN {kgf}		 Avg. tensile
strength
kN {kgf}		 Max. allowable
tension
kN {kgf}		 Estimated Mass
kg/m		 No. of links
per unit
RS50-6 6 55.657.4114.418.1- 171{17400} 188{19200} 29.3{2990} 6.16 192

Notes
　1.When using an offset link (OL), the maximum allowable tension is 65% of the above table.
　2.Made to order


Applicable connecting link

Type Connecting link Offset link
Model No. RS50-6-MWJLRS50-6-OL
Standard Price Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details.

Transmission Capacity Table 　kW　4.6 multiplied multi-strand coefficient

Small
sprocket
no. of teeth
Small sprocket RPM 　r/min
10 25 50 100 200 300 400 500 700 900 1000 1200 1400 1600 1800 2100 2400 2700 3000 3500 4000 4500 5000 5500 6000
Lubrication method AI Lubrication method AII Lubrication method B Lubrication method C
9 0.64 1.52 2.81 5.24 9.80 14.1 18.3 22.4 29.2 29.2 29.2 26.0 20.7 16.9 14.2 11.2 9.20 7.73 6.58 5.24 4.28 3.59 3.08 2.67 2.35
10 0.74 1.70 3.17 5.89 11.0 15.8 20.5 25.0 32.7 32.7 32.7 30.5 24.2 19.8 16.6 13.2 10.8 9.02 7.73 6.12 5.01 4.19 3.59 3.13 2.71
11 0.83 1.89 3.50 6.53 12.1 17.5 22.7 27.7 36.2 36.2 36.2 35.1 27.9 22.8 19.1 15.2 12.4 10.4 8.88 7.04 5.80 4.83 4.14 3.59 3.13
12 0.92 2.07 3.82 7.18 13.3 19.2 24.9 30.5 40.1 40.1 40.1 40.1 31.8 26.0 21.8 17.3 14.2 11.9 10.1 8.05 6.58 5.52 4.69 4.09 3.59
13 0.97 2.25 4.19 7.82 14.6 21.0 27.2 33.2 45.0 45.2 45.2 45.2 35.8 29.3 24.6 19.5 16.0 13.4 11.4 9.06 7.41 6.21 5.29 4.60
14 1.06 2.44 4.55 8.46 15.8 22.7 29.4 36.0 48.8 50.6 50.6 50.6 40.1 32.8 27.5 21.8 17.8 15.0 12.8 10.1 8.28 6.95 5.93 5.15
15 1.15 2.62 4.88 9.11 17.0 24.5 31.7 38.8 52.4 56.1 56.1 56.1 44.4 36.3 30.5 24.2 19.8 16.6 14.2 11.2 9.20 7.73 6.58 5.70
16 1.24 2.81 5.24 9.75 18.2 26.3 34.0 41.6 56.1 61.6 61.6 61.6 48.8 40.1 33.6 26.6 21.8 18.3 15.6 12.4 10.1 8.51 7.27 6.30
17 1.33 2.99 5.61 10.4 19.5 28.1 36.3 44.4 60.3 67.6 67.6 67.6 53.8 43.9 36.8 29.2 23.9 20.0 17.1 13.6 11.1 9.29 7.96 6.90
18 1.38 3.17 5.93 11.1 20.7 29.8 38.6 47.4 63.9 72.7 72.7 72.7 58.4 47.8 40.1 31.8 26.0 21.8 18.6 14.8 12.1 10.1 8.65
19 1.47 3.36 6.30 11.8 21.9 31.6 40.9 50.1 67.6 77.3 77.3 77.3 63.5 52.0 43.4 34.5 28.2 23.6 20.2 16.0 13.1 11.0 9.38
20 1.56 3.59 6.67 12.4 23.2 33.4 43.3 52.9 71.8 81.4 81.4 81.4 68.5 56.1 46.9 37.2 30.5 25.5 21.8 17.3 14.2 11.9 10.1
21 1.61 3.77 7.04 13.1 24.5 35.2 45.6 55.7 75.4 86.0 86.0 86.0 73.6 60.3 50.6 40.1 32.8 27.5 23.5 18.6 15.2 12.8 10.9
22 1.70 3.96 7.41 13.8 25.7 37.0 47.8 58.9 79.6 90.2 90.2 90.2 79.1 64.4 54.3 43.0 35.1 29.5 25.2 20.0 16.3 13.7 11.7
23 1.79 4.14 7.73 14.4 27.0 38.9 50.1 61.6 83.3 94.8 94.8 94.8 84.2 69.0 58.0 45.9 37.6 31.5 26.9 21.3 17.5 14.6
24 1.84 4.37 8.10 15.1 28.2 40.7 52.9 64.4 87.4 99.4 99.4 99.4 89.7 73.6 61.6 48.8 40.1 33.6 28.7 22.7 18.6 15.6
25 1.93 4.55 8.46 15.8 29.5 42.5 55.2 67.2 91.1 103 103 103 95.7 78.2 65.8 52.0 42.6 35.7 30.5 24.2 19.8 16.6
26 2.02 4.74 8.83 16.5 30.8 44.3 57.5 70.4 95.2 108 108 108 101 82.8 69.5 55.2 45.2 37.9 32.3 25.7 21.0 17.6
28 2.16 5.15 9.57 17.9 33.4 47.8 62.1 75.9 103 117 117 117 113 92.9 77.7 61.6 50.6 42.3 36.1 28.7 23.5 19.6
30 2.35 5.52 10.3 19.3 35.9 52.0 67.2 81.9 110 126 126 126 125 103 86.0 68.5 56.1 46.9 40.1 31.8 26.0
32 2.48 5.93 11.1 20.7 38.5 55.7 71.8 87.9 119 138 138 138 138 113 94.8 75.4 61.6 51.5 44.1 35.0 28.7
35 2.71 6.53 12.2 22.8 42.5 61.2 79.1 97.1 131 158 158 158 158 129 108 86.0 70.4 59.3 50.6 40.1 32.8
40 3.08 7.54 14.1 26.3 49.2 70.8 91.5 111 151 189 193 193 193 158 132 105 86.0 72.2 61.6 48.8
45 3.50 8.56 16.0 29.9 55.7 80.0 103 126 172 215 224 224 224 189 158 125 103 86.0 73.6

Notes
　1.kW ratings when using a 1-pitch offset link (OL) are 65% of the above.
　2.Contact us if you use at the kW ratings colored in gray.

Lubrication method AI AII B C

More details

Method Manual lubrication Drip lubrication Oil bath or slinger disc Forced lubrication
