RS roller chain 　Major Specifications

RS40-2


[Click to enlarge ]

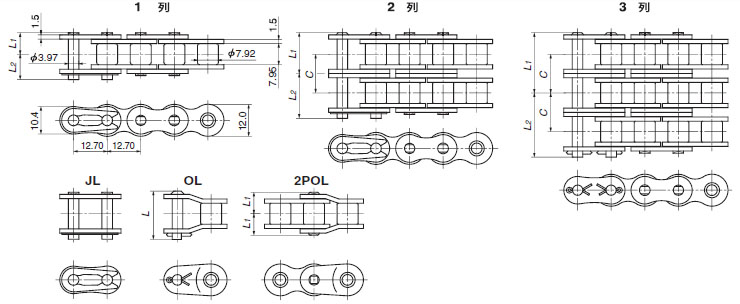

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Size &
No. of strands 		No. of
strands 		Dimensions
L1
mm		Dimensions
L2
mm		Offset pin
length
L
mm		Transverse pitch
C
mm		JIS tensile strength
kN {kgf}		 Min. tensile
strength
kN {kgf}		 Avg. tensile
strength
kN {kgf}		 Max. allowable
tension
kN {kgf}		 Estimated Mass
kg/m		 No. of links
per unit
RS40-2 2 15.4517.1533.514.427.8{2835} 35.3{3600} 38.2{3900} 6.18{630} 1.27 240

Notes
　1.The maximum allowable tension when using a 1-pitch offset link is 65% of the above.
　　2-pitch offset links (2POL) can be used at the above ratings.
　2.Stocked unit


Standard prices and delivery time

Type Unit
RP type
Model No. RS40-2-RP-U
Standard Price Contact us for details.
Delivery Contact us for details.

Applicable connecting link

Type Connecting link Offset link 2-pitch
offset link
Model No. RS40-2-MCJLRS40-2-OLRS40-2-2POL
Standard Price Contact us for details. Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details. Contact us for details.

Transmission Capacity Table 　kW　1.7 multiplied multi-strand coefficient

Small
sprocket
no. of teeth
Small sprocket RPM 　r/min
10 25 50 100 200 300 400 500 700 900 1000 1200 1400 1600 1800 2100 2400 2700 3000 3500 4000 5000 6000 7000 8000
Lubrication method AI Lubrication method AII Lubrication method B Lubrication method C
9 0.12 0.26 0.48 0.88 1.65 2.38 3.08 3.76 5.10 6.38 6.38 6.38 6.38 5.22 4.39 3.47 2.84 2.38 2.04 1.62 1.33 0.95 0.71 0.58 0.46
10 0.12 0.29 0.53 0.99 1.85 2.67 3.45 4.22 5.71 7.16 7.48 7.48 7.48 6.12 5.13 4.06 3.33 2.79 2.38 1.89 1.55 1.11 0.85 0.66 0.54
11 0.14 0.32 0.60 1.11 2.06 2.96 3.83 4.68 6.32 7.94 8.62 8.62 8.62 7.06 5.92 4.69 3.84 3.21 2.75 2.18 1.79 1.28 0.97 0.77 0.63
12 0.15 0.34 0.65 1.21 2.24 3.25 4.20 5.13 6.95 8.72 9.59 9.64 9.64 8.04 6.75 5.36 4.39 3.67 3.13 2.48 2.04 1.46 1.11 0.88 0.71
13 0.17 0.37 0.70 1.31 2.45 3.54 4.57 5.59 7.58 9.50 10.5 10.5 10.5 9.08 7.60 6.04 4.93 4.13 3.54 2.81 2.30 1.65 1.24 0.99 0.82
14 0.19 0.41 0.77 1.43 2.65 3.83 4.96 6.07 8.21 10.3 11.3 11.4 11.4 10.1 8.50 6.75 5.53 4.62 3.94 3.13 2.57 1.84 1.39 1.11 0.90
15 0.19 0.44 0.82 1.53 2.87 4.13 5.34 6.53 8.84 11.1 12.2 12.3 12.3 11.2 9.42 7.48 6.12 5.13 4.39 3.47 2.84 2.04 1.55 1.22 1.00
16 0.20 0.48 0.88 1.65 3.08 4.42 5.73 7.00 9.49 11.9 13.1 13.2 13.2 12.4 10.4 8.23 6.75 5.64 4.83 3.83 3.13 2.24 1.70 1.36 1.11
17 0.22 0.51 0.94 1.75 3.28 4.73 6.12 7.48 10.1 12.7 14.0 14.0 14.0 13.6 11.4 9.03 7.38 6.19 5.29 4.20 3.43 2.45 1.87 1.48 1.21
18 0.24 0.54 1.00 1.87 3.49 5.03 6.51 7.96 10.8 13.5 14.8 14.9 14.9 14.8 12.4 9.83 8.04 6.75 5.76 4.57 3.74 2.67 2.04 1.62
19 0.26 0.56 1.05 1.99 3.71 5.32 6.90 8.43 11.4 14.3 15.7 16.0 16.0 16.0 13.4 10.7 8.72 7.31 6.24 4.95 4.05 2.91 2.21 1.75
20 0.26 0.60 1.12 2.09 3.91 5.63 7.29 8.91 12.1 15.1 16.6 17.3 17.3 17.3 14.5 11.5 9.42 7.89 6.75 5.36 4.39 3.13 2.38 1.89
21 0.27 0.63 1.19 2.21 4.11 5.93 7.68 9.40 12.7 15.9 17.5 18.7 18.7 18.7 15.6 12.4 10.1 8.50 7.26 5.76 4.71 3.37 2.57 2.04
22 0.29 0.66 1.24 2.33 4.34 6.24 8.09 9.88 13.4 16.8 18.4 19.9 19.9 19.9 16.7 13.3 10.9 9.11 7.77 6.17 5.05 3.62 2.75 2.18
23 0.31 0.70 1.31 2.43 4.54 6.55 8.48 10.4 14.0 17.7 19.4 21.4 21.4 21.4 17.9 14.2 11.6 9.74 8.31 6.60 5.41 3.86 2.94 2.33
24 0.31 0.73 1.36 2.55 4.76 6.85 8.87 10.9 14.7 18.4 20.2 22.8 22.8 22.8 19.0 15.1 12.4 10.4 8.86 7.04 5.76 4.11 3.13 2.48
25 0.32 0.77 1.43 2.67 4.98 7.16 9.28 11.3 15.4 19.2 21.3 24.0 24.0 24.0 20.2 16.1 13.2 11.0 9.42 7.48 6.12 4.39 3.33
26 0.34 0.80 1.50 2.79 5.19 7.48 9.69 11.8 16.0 20.1 22.1 25.0 25.0 25.0 21.4 17.0 14.0 11.7 10.0 7.92 6.49 4.64 3.54
28 0.37 0.87 1.62 3.01 5.63 8.09 10.5 12.8 17.3 21.8 24.0 27.2 27.2 27.2 24.0 19.0 15.6 13.1 11.2 8.86 7.26 5.19 3.94
30 0.39 0.94 1.73 3.25 6.05 8.72 11.3 13.8 18.7 23.5 25.8 29.2 29.2 29.2 26.7 21.1 17.3 14.5 12.4 9.83 8.04 5.76 4.39
32 0.43 1.00 1.87 3.49 6.49 9.35 12.1 14.8 20.1 25.2 27.7 31.3 31.3 31.3 29.4 23.3 19.0 16.0 13.7 10.8 8.86 6.34
35 0.46 1.11 2.06 3.84 7.16 10.3 13.3 16.3 22.1 27.7 30.4 34.5 34.5 34.5 33.7 26.7 21.8 18.4 15.6 12.4 10.1 7.26
40 0.53 1.28 2.38 4.42 8.26 11.9 15.4 18.9 25.5 32.0 35.2 41.0 41.0 41.0 41.0 32.6 26.7 22.3 19.0 15.1 12.4 8.86
45 0.60 1.45 2.70 5.03 9.38 13.5 17.5 21.4 28.9 36.4 40.0 47.1 49.0 49.0 49.0 38.9 31.8 26.7 22.8 18.0 14.8

Notes
　1.kW ratings when using a 1-pitch offset link (OL) are 65% of the above.
　2.Contact us if you use at the kW ratings colored in gray.

Lubrication method AI AII B C

More details

Method Manual lubrication Drip lubrication Oil bath or slinger disc Forced lubrication

Applicable sprockets

Type 2A 2B 2C
Base Model No. RS40-2A□T■ RS40-2B□T■ RS40-2C□T■
Tooth no. range 35T～60T 12T～60T 35T～60T
