RS roller chain 　Major Specifications

RS25-1


[Click to enlarge ]

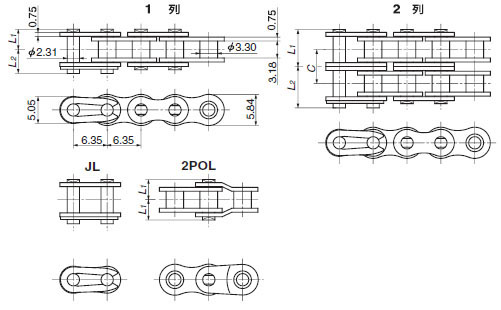

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Size &
No. of strands 		No. of
strands 		Dimensions
L1
mm		Dimensions
L2
mm		JIS tensile strength
kN {kgf}		 Min. tensile
strength
kN {kgf}		 Avg. tensile
strength
kN {kgf}		 Max. allowable
tension
kN {kgf}		 Estimated Mass
kg/m		 No. of links
per unit
RS25-1 1 3.84.53.5{357} 4.12{420} 4.71{480} 0.64{65} 0.14 160

Notes
　1.Only 2-pitch offset links are available. See the table above for the maximum allowable tension.
　2.Bushed chain without rollers
　3.Stocked unit


Standard prices and delivery time

Type Unit
RP type 		Reel RP Type
Model No. RS25-1-RP-URS25-1-RP-150UR
Standard Price Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details.

Applicable connecting link

Type Connecting link 2-pitch
offset link
Model No. RS25-1-MCJLRS25-1-2POL
Standard Price Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details.

Transmission Capacity Table 　kW

Small
sprocket
no. of teeth
Small sprocket RPM 　r/min
50 100 300 500 700 900 1200 1500 1800 2100 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 8500 9000 10000
Lubrication method AI Lubrication method AII Lubrication method B
9 0.02 0.03 0.08 0.13 0.18 0.23 0.30 0.36 0.43 0.49 0.57 0.67 0.78 0.76 0.64 0.55 0.47 0.41 0.37 0.33 0.30 0.27 0.25 0.23 0.19
10 0.02 0.04 0.10 0.15 0.20 0.26 0.33 0.41 0.48 0.55 0.64 0.76 0.87 0.89 0.75 0.64 0.55 0.49 0.43 0.39 0.35 0.32 0.29 0.26 0.23
11 0.02 0.04 0.11 0.17 0.23 0.28 0.37 0.45 0.53 0.61 0.71 0.84 0.96 1.03 0.86 0.74 0.64 0.56 0.50 0.44 0.40 0.36 0.33 0.30 0.26
12 0.02 0.04 0.12 0.18 0.25 0.31 0.40 0.49 0.58 0.67 0.78 0.92 1.06 1.17 0.98 0.84 0.73 0.64 0.57 0.51 0.46 0.41 0.38 0.35 0.30 Lubrication
method
C
13 0.03 0.05 0.13 0.20 0.27 0.34 0.44 0.54 0.63 0.73 0.85 1.00 1.15 1.30 1.11 0.95 0.82 0.72 0.64 0.57 0.52 0.47 0.43 0.39 0.33
14 0.03 0.05 0.14 0.22 0.29 0.37 0.48 0.58 0.69 0.79 0.92 1.09 1.25 1.41 1.24 1.06 0.92 0.80 0.71 0.64 0.58 0.52 0.48 0.44 0.37
15 0.03 0.05 0.15 0.23 0.32 0.40 0.51 0.63 0.74 0.85 0.99 1.17 1.35 1.52 1.37 1.17 1.02 0.89 0.79 0.71 0.64 0.58 0.53 0.49 0.41
16 0.03 0.06 0.16 0.25 0.34 0.43 0.55 0.67 0.79 0.91 1.07 1.26 1.44 1.63 1.51 1.29 1.12 0.98 0.87 0.78 0.70 0.64 0.58 0.54 0.46
17 0.03 0.06 0.17 0.27 0.36 0.45 0.59 0.72 0.85 0.97 1.14 1.34 1.54 1.74 1.66 1.42 1.23 1.08 0.95 0.85 0.77 0.70 0.64 0.59 0.50
18 0.04 0.07 0.18 0.28 0.39 0.48 0.63 0.76 0.90 1.04 1.21 1.43 1.64 1.85 1.81 1.54 1.34 1.17 1.04 0.93 0.84 0.76 0.70 0.64 0.55
19 0.04 0.07 0.19 0.30 0.41 0.51 0.66 0.81 0.96 1.10 1.28 1.51 1.74 1.96 1.96 1.67 1.45 1.27 1.13 1.01 0.91 0.83 0.75 0.69 0.59
20 0.04 0.07 0.20 0.32 0.43 0.54 0.70 0.86 1.01 1.16 1.36 1.60 1.84 2.07 2.11 1.81 1.57 1.37 1.22 1.09 0.98 0.89 0.81 0.75 0.64
21 0.04 0.08 0.21 0.34 0.45 0.57 0.74 0.90 1.06 1.22 1.43 1.69 1.94 2.18 2.28 1.94 1.68 1.48 1.31 1.17 1.06 0.96 0.88 0.80 0.69
22 0.04 0.08 0.22 0.35 0.48 0.60 0.78 0.95 1.12 1.29 1.50 1.77 2.04 2.30 2.44 2.08 1.81 1.58 1.41 1.26 1.13 1.03 0.94 0.86 0.74
23 0.05 0.09 0.23 0.37 0.50 0.63 0.82 1.00 1.17 1.35 1.58 1.86 2.14 2.41 2.61 2.23 1.93 1.69 1.50 1.34 1.21 1.10 1.00 0.92 0.79
24 0.05 0.09 0.25 0.39 0.53 0.66 0.85 1.04 1.23 1.41 1.65 1.95 2.24 2.52 2.78 2.37 2.06 1.81 1.60 1.43 1.29 1.17 1.07 0.98 0.84
25 0.05 0.10 0.26 0.41 0.55 0.69 0.89 1.09 1.28 1.48 1.73 2.03 2.34 2.64 2.93 2.52 2.19 1.92 1.70 1.52 1.37 1.25 1.14 1.04 0.89
26 0.05 0.10 0.27 0.42 0.57 0.72 0.93 1.14 1.34 1.54 1.80 2.12 2.44 2.75 3.06 2.68 2.32 2.04 1.81 1.62 1.46 1.32 1.21 1.11 0.95
28 0.06 0.11 0.29 0.46 0.62 0.78 1.01 1.23 1.45 1.67 1.95 2.30 2.64 2.98 3.31 2.99 2.59 2.28 2.02 1.81 1.63 1.48 1.35 1.24 1.06
30 0.06 0.12 0.31 0.49 0.67 0.84 1.09 1.33 1.56 1.80 2.10 2.48 2.85 3.21 3.57 3.32 2.88 2.52 2.24 2.00 1.81 1.64 1.50 1.37 1.17
32 0.07 0.12 0.33 0.53 0.72 0.90 1.16 1.42 1.68 1.93 2.25 2.66 3.05 3.44 3.83 3.65 3.17 2.78 2.47 2.21 1.99 1.81 1.65 1.51 1.29
35 0.07 0.14 0.37 0.58 0.79 0.99 1.28 1.57 1.85 2.12 2.48 2.93 3.36 3.79 4.21 4.18 3.62 3.18 2.82 2.52 2.28 2.07 1.89 1.73 1.48
40 0.08 0.16 0.43 0.67 0.91 1.14 1.48 1.81 2.13 2.45 2.87 3.38 3.88 4.38 4.87 5.11 4.43 3.89 3.45 3.08 2.78 2.52 2.30 2.11 1.81
45 0.10 0.18 0.48 0.77 1.04 1.30 1.68 2.06 2.42 2.78 3.26 3.84 4.41 4.97 5.53 6.08 5.28 4.64 4.11 3.68 3.32 3.01 2.75 2.52 2.15

Notes
　1.Contact us if you use at the kW ratings colored in gray.

Lubrication method AI AII B C

More details

Method Manual lubrication Drip lubrication Oil bath or slinger disc Forced lubrication

Applicable sprockets

Type 1A 1B 1C SD (single dual) Fit bore Lock
S type 		Lock
N type
Base Model No. ---RS25-1B□T-◇ ---------------
Tooth no. range 10T～32T
