RS roller chain Major Specifications
RS240-2
※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals

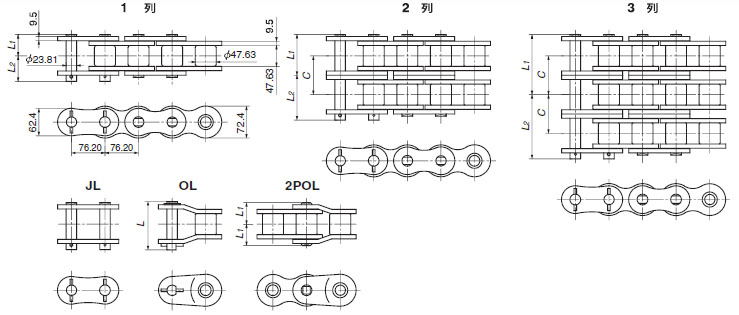

Major Specifications
サイズ &列数 |
No. of strands |
Dimensions L1 mm | Dimensions L2 mm | Offset pin length L mm | Transverse pitch C mm | JIS tensile strength kN {kgf} |
Min. tensile strength kN {kgf} |
Avg. tensile strength kN {kgf} |
Max. allowable tension kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
---|---|---|---|---|---|---|---|---|---|---|---|
RS240-2 | 2 | 91.65 | 99.15 | 198.4 | 87.8 | 1000.0{101972} | 1250{127000} | 1370{140000} | 168{17170} | 48.1 | 40 |
Notes
1.The maximum allowable tension when using a 1-pitch offset link is 65% of the above.
2-pitch offset links (2POL) can be used at the above ratings.
2.Made to order
Applicable connecting link
Type | Connecting link | Offset link | 2-pitch offset link |
---|---|---|---|
Model No. | RS240-2-MSJL | RS240-2-OL | RS240-2-2POL |
Standard Price | Contact us for details. | Contact us for details. | Contact us for details. |
Delivery | Contact us for details. | Contact us for details. | Contact us for details. |
Transmission Capacity Table kW 1.7 multiplied multi-strand coefficient
Small sprocket no. of teeth |
Small sprocket RPM r/min | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | |
Lubrication method AI | Lubrication method AII | Lubrication method B | Lubrication method C | |||||||||||||||||
9 | 9.62 | 18.2 | 26.2 | 34.0 | 41.5 | 49.0 | 63.4 | 77.5 | 91.3 | 118 | 144 | 176 | 209 | 239 | 270 | 270 | 270 | 214 | 175 | 146 |
10 | 10.7 | 20.4 | 29.4 | 38.1 | 46.6 | 54.9 | 71.1 | 86.9 | 102 | 132 | 162 | 198 | 232 | 268 | 302 | 311 | 311 | 251 | 205 | 171 |
11 | 11.8 | 22.6 | 32.6 | 42.2 | 51.7 | 60.9 | 78.7 | 96.4 | 113 | 147 | 180 | 219 | 258 | 297 | 334 | 343 | 343 | 289 | 236 | 198 |
12 | 12.8 | 24.8 | 35.9 | 46.4 | 56.8 | 66.8 | 86.5 | 105 | 124 | 161 | 197 | 241 | 283 | 326 | 368 | 377 | 377 | 329 | 270 | |
13 | 13.9 | 27.0 | 39.1 | 50.5 | 61.9 | 72.8 | 94.4 | 115 | 136 | 176 | 215 | 263 | 309 | 357 | 401 | 411 | 411 | 372 | 304 | |
14 | 15.0 | 29.4 | 42.3 | 54.7 | 67.0 | 78.9 | 102 | 124 | 147 | 190 | 232 | 285 | 336 | 385 | 435 | 447 | 447 | 414 | 340 | |
15 | 16.0 | 31.6 | 45.6 | 59.0 | 72.1 | 85.0 | 110 | 134 | 158 | 205 | 251 | 307 | 362 | 416 | 469 | 481 | 481 | 460 | 377 | |
16 | 17.2 | 33.8 | 48.8 | 63.2 | 77.4 | 91.1 | 118 | 144 | 170 | 221 | 268 | 329 | 387 | 445 | 503 | 508 | 508 | 457 | 414 | |
17 | 18.2 | 36.2 | 52.2 | 67.5 | 82.6 | 97.2 | 126 | 154 | 181 | 234 | 287 | 351 | 414 | 476 | 510 | 510 | 510 | 477 | 455 | |
18 | 19.2 | 38.4 | 55.4 | 71.9 | 87.9 | 103 | 134 | 163 | 193 | 249 | 306 | 374 | 440 | 506 | 515 | 515 | 515 | 494 | 477 | |
19 | 20.2 | 40.6 | 58.8 | 76.2 | 93.2 | 109 | 142 | 173 | 204 | 265 | 324 | 396 | 467 | 537 | 538 | 538 | 538 | 516 | 494 | |
20 | 21.4 | 42.5 | 62.2 | 80.6 | 98.4 | 115 | 150 | 183 | 215 | 280 | 343 | 418 | 493 | 561 | 561 | 561 | 561 | 537 | 516 | |
21 | 22.4 | 44.9 | 65.5 | 84.8 | 103 | 122 | 158 | 193 | 227 | 295 | 362 | 442 | 520 | 586 | 586 | 586 | 586 | 557 | 537 | |
22 | 23.5 | 47.1 | 68.9 | 89.3 | 109 | 128 | 166 | 204 | 239 | 311 | 379 | 464 | 547 | 588 | 588 | 588 | 581 | 576 | 535 | |
23 | 24.7 | 48.3 | 72.3 | 93.7 | 114 | 134 | 175 | 214 | 251 | 326 | 397 | 487 | 574 | 629 | 629 | 629 | 610 | 595 | 567 | |
24 | 25.7 | 51.3 | 75.7 | 98.1 | 119 | 141 | 183 | 224 | 263 | 341 | 418 | 510 | 601 | 673 | 673 | 673 | 639 | 612 | ||
25 | 26.7 | 53.4 | 79.1 | 102 | 125 | 147 | 190 | 232 | 275 | 357 | 436 | 533 | 629 | 697 | 697 | 697 | 659 | 629 | ||
26 | 27.7 | 55.6 | 82.5 | 106 | 130 | 154 | 198 | 243 | 287 | 372 | 455 | 555 | 656 | 710 | 710 | 710 | 674 | 646 |
Notes
1.kW ratings when using a 1-pitch offset link (OL) are 65% of the above.
2.Contact us if you use at the kW ratings colored in gray.
Lubrication method | AI | AII | B | C | |
---|---|---|---|---|---|
Method | Manual lubrication | Drip lubrication | Oil bath or slinger disc | Forced lubrication |
