RS roller chain 　Major Specifications

RS200-4


[Click to enlarge ]

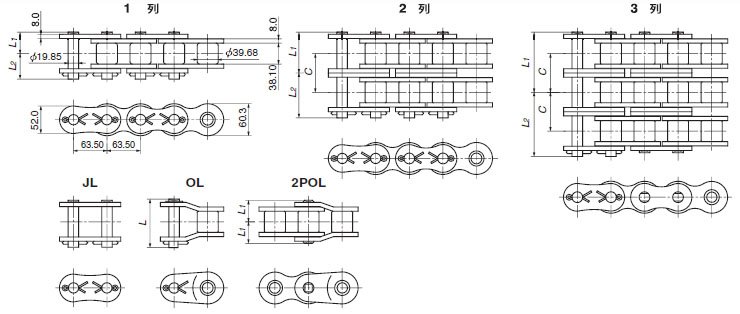

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Size &
No. of strands 		No. of
strands 		Dimensions
L1
mm		Dimensions
L2
mm		Offset pin
length
L
mm		Transverse pitch
C
mm		JIS tensile strength
kN {kgf}		 Min. tensile
strength
kN {kgf}		 Avg. tensile
strength
kN {kgf}		 Max. allowable
tension
kN {kgf}		 Estimated Mass
kg/m		 No. of links
per unit
RS200-4 4 146.6152.3304.771.6- 1710{174000} 1880{192000} 236{24090} 65.16 48

Notes
　1.The maximum allowable tension when using a 1-pitch offset link is 65% of the above.
　　2-pitch offset links (2POL) can be used at the above ratings.
　2.Made to order


Applicable connecting link

Type Connecting link Offset link 2-pitch
offset link
Model No. RS200-4-MWJLRS200-4-OLRS200-4-2POL
Standard Price Contact us for details. Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details. Contact us for details.

Transmission Capacity Table 　kW　3.3 multiplied multi-strand coefficient

Small
sprocket
no. of teeth
Small sprocket RPM 　r/min
10 15 20 30 40 50 70 100 150 200 250 300 350 400 450 500 550 600 650
Lubrication method AI Lubrication method AII Lubrication method B Lubrication method C
9 21.3 30.7 39.9 57.4 74.3 90.8 122 169 243 315 356 356 356 294 246 210 182 160 141
10 23.9 34.3 44.6 64.4 83.2 101 137 189 273 353 402 402 402 343 288 246 213 187 166
11 26.5 38.3 49.5 71.3 92.1 112 152 210 302 392 445 445 445 396 333 284 246 216 191
12 29.1 41.9 54.1 78.2 101 123 167 231 333 432 488 488 488 452 379 324 280 246
13 31.7 45.5 59.1 85.1 110 134 182 251 363 468 531 531 531 511 429 366 316 277
14 34.3 49.5 64.0 92.4 119 146 198 272 392 508 577 577 577 570 478 409 353 310
15 37.0 53.5 69.0 99.3 128 157 213 294 422 547 633 633 633 633 531 452 392 343
16 39.6 57.1 73.9 106 138 168 228 315 455 587 696 696 696 696 584 498 432 379
17 42.2 61.1 79.2 113 147 180 244 336 485 627 762 762 762 762 640 547 471 415
18 44.9 65.0 84.2 121 156 191 259 356 514 666 815 831 831 831 696 594 514 452
19 47.5 68.6 89.1 128 166 203 275 379 547 709 864 900 900 900 755 646 561 491
20 50.2 72.6 94.1 135 175 214 291 402 577 749 914 957 957 957 815 696 603
21 52.5 76.6 99.3 142 185 226 306 422 610 788 963 1006 1006 1006 877 749 650
22 55.1 80.5 104 150 194 238 322 445 640 828 1013 1059 1059 1059 940 805 696
23 57.4 84.5 109 157 204 249 339 465 673 871 1062 1112 1112 1112 1006 858 745
24 60.1 88.4 114 165 214 261 353 488 702 910 1115 1164 1164 1164 1072 917 795
25 62.4 92.4 119 172 223 273 369 511 735 953 1164 1217 1217 1217 1141 973 844
26 65.0 96.7 125 180 233 285 386 531 765 993 1214 1270 1270 1270 1211 1032 894

Notes
　1.kW ratings when using a 1-pitch offset link (OL) are 65% of the above.
　2.Contact us if you use at the kW ratings colored in gray.

Lubrication method AI AII B C

More details

Method Manual lubrication Drip lubrication Oil bath or slinger disc Forced lubrication
