RS roller chain Major Specifications
RS180-2
※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals

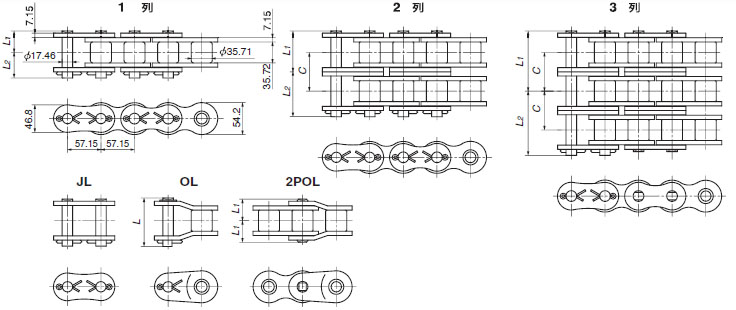

Major Specifications
サイズ &列数 |
No. of strands |
Dimensions L1 mm | Dimensions L2 mm | Offset pin length L mm | Transverse pitch C mm | JIS tensile strength kN {kgf} |
Min. tensile strength kN {kgf} |
Avg. tensile strength kN {kgf} |
Max. allowable tension kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
---|---|---|---|---|---|---|---|---|---|---|---|
RS180-2 | 2 | 68.75 | 75.35 | 151.1 | 65.8 | 562.0{57309} | 673{68600} | 739{75400} | 103{10540} | 26.52 | 54 |
Notes
1.The maximum allowable tension when using a 1-pitch offset link is 65% of the above.
2-pitch offset links (2POL) can be used at the above ratings.
2.Stocked unit
Standard prices and delivery time
Type | Unit CP type |
---|---|
Model No. | RS180-2-CP-U |
Standard Price | Contact us for details. |
Delivery | Contact us for details. |
Applicable connecting link
Type | Connecting link | Offset link | 2-pitch offset link |
---|---|---|---|
Model No. | RS180-2-MWJL | RS180-2-OL | RS180-2-2POL |
Standard Price | Contact us for details. | Contact us for details. | Contact us for details. |
Delivery | Contact us for details. | Contact us for details. | Contact us for details. |
Transmission Capacity Table kW 1.7 multiplied multi-strand coefficient
Small sprocket no. of teeth |
Small sprocket RPM r/min | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | |
Lubrication method AI | Lubrication method AII | Lubrication method B | Lubrication method C | |||||||||||||||||||||
9 | 8.40 | 19.2 | 35.7 | 66.6 | 96.1 | 124 | 151 | 154 | 154 | 139 | 116 | 99.6 | 86.4 | 75.8 | 67.2 | 60.2 | 54.2 | 49.3 | 44.9 | 41.3 | 38.1 | 35.2 | 32.8 | 30.6 |
10 | 9.40 | 21.4 | 40.0 | 74.6 | 107 | 139 | 170 | 173 | 173 | 163 | 136 | 116 | 101 | 88.7 | 78.7 | 70.4 | 63.6 | 57.6 | 52.7 | 48.3 | 44.5 | 41.3 | 38.4 | 35.7 |
11 | 10.4 | 23.8 | 44.4 | 82.8 | 119 | 154 | 188 | 192 | 192 | 188 | 157 | 134 | 116 | 102 | 90.8 | 81.3 | 73.3 | 66.5 | 60.7 | 55.8 | 51.3 | 47.6 | 44.2 | 41.3 |
12 | 11.4 | 26.2 | 48.8 | 91.0 | 130 | 169 | 207 | 214 | 214 | 214 | 180 | 153 | 132 | 116 | 103 | 92.7 | 83.5 | 75.8 | 69.2 | 63.6 | 58.5 | 54.2 | 50.3 | 46.9 |
13 | 12.5 | 28.4 | 53.2 | 99.1 | 142 | 185 | 226 | 241 | 241 | 241 | 202 | 173 | 149 | 131 | 116 | 104 | 94.2 | 85.5 | 78.0 | 71.6 | 66.0 | 61.2 | 56.8 | |
14 | 13.5 | 30.8 | 57.6 | 107 | 154 | 200 | 244 | 270 | 270 | 270 | 226 | 193 | 167 | 147 | 130 | 116 | 105 | 95.5 | 87.2 | 80.1 | 73.8 | 68.3 | 63.6 | |
15 | 14.6 | 33.2 | 62.1 | 115 | 166 | 215 | 263 | 299 | 299 | 299 | 251 | 214 | 185 | 163 | 144 | 129 | 116 | 105 | 96.7 | 88.7 | 81.8 | 75.8 | 70.4 | |
16 | 15.6 | 35.7 | 66.5 | 124 | 178 | 231 | 282 | 324 | 324 | 324 | 277 | 236 | 204 | 180 | 159 | 142 | 128 | 116 | 106 | 97.8 | 90.1 | 83.5 | 77.5 | |
17 | 16.7 | 38.1 | 71.1 | 132 | 190 | 246 | 302 | 341 | 341 | 341 | 302 | 258 | 224 | 197 | 175 | 156 | 140 | 127 | 116 | 107 | 98.8 | 91.5 | ||
18 | 17.7 | 40.5 | 75.5 | 140 | 202 | 263 | 321 | 367 | 367 | 367 | 329 | 282 | 244 | 214 | 190 | 170 | 153 | 139 | 127 | 116 | 107 | 99.6 | ||
19 | 18.7 | 42.8 | 80.1 | 149 | 215 | 278 | 340 | 389 | 389 | 389 | 358 | 306 | 265 | 232 | 205 | 185 | 166 | 150 | 137 | 126 | 116 | 107 | ||
20 | 19.7 | 45.4 | 84.7 | 157 | 227 | 294 | 360 | 413 | 413 | 413 | 385 | 329 | 285 | 251 | 222 | 198 | 180 | 163 | 148 | 136 | 125 | 116 | ||
21 | 20.7 | 47.8 | 89.3 | 166 | 239 | 311 | 379 | 435 | 435 | 435 | 416 | 355 | 307 | 270 | 239 | 214 | 193 | 175 | 160 | 147 | 135 | 125 | ||
22 | 21.6 | 50.3 | 93.8 | 175 | 251 | 326 | 399 | 457 | 457 | 457 | 445 | 380 | 329 | 289 | 256 | 229 | 207 | 188 | 171 | 157 | 145 | |||
23 | 22.6 | 52.7 | 98.4 | 183 | 265 | 343 | 418 | 479 | 479 | 479 | 476 | 406 | 353 | 309 | 275 | 246 | 221 | 200 | 183 | 168 | 155 | |||
24 | 23.6 | 55.3 | 103 | 192 | 277 | 358 | 438 | 508 | 508 | 508 | 508 | 433 | 375 | 329 | 292 | 261 | 236 | 214 | 195 | 180 | 165 | |||
25 | 24.7 | 57.6 | 107 | 200 | 289 | 375 | 459 | 540 | 540 | 540 | 540 | 460 | 399 | 350 | 311 | 278 | 251 | 227 | 207 | 190 | 176 | |||
26 | 25.7 | 60.2 | 112 | 209 | 302 | 391 | 477 | 562 | 572 | 572 | 572 | 489 | 423 | 372 | 329 | 295 | 266 | 241 | 221 | 202 | ||||
28 | 27.5 | 65.3 | 121 | 227 | 326 | 423 | 518 | 610 | 640 | 640 | 640 | 547 | 474 | 416 | 368 | 329 | 297 | 270 | 246 | 226 | ||||
30 | 29.6 | 70.2 | 131 | 244 | 351 | 457 | 557 | 657 | 710 | 710 | 710 | 606 | 525 | 460 | 409 | 365 | 329 | 299 | 273 | 251 | ||||
32 | 31.5 | 75.3 | 140 | 261 | 377 | 489 | 598 | 705 | 761 | 761 | 761 | 668 | 579 | 508 | 450 | 402 | 363 | 329 | 300 | |||||
35 | 34.5 | 83.0 | 154 | 289 | 416 | 538 | 659 | 776 | 839 | 839 | 839 | 763 | 663 | 581 | 515 | 460 | 416 | 368 | 278 | |||||
40 | 39.4 | 95.9 | 178 | 333 | 481 | 622 | 761 | 856 | 856 | 856 | 856 | 787 | 729 | 664 | 589 | 504 | 411 | 309 | ||||||
45 | 44.4 | 108 | 202 | 379 | 545 | 707 | 865 | 936 | 936 | 936 | 861 | 800 | 732 | 651 | 559 | 457 | 343 |
Notes
1.kW ratings when using a 1-pitch offset link (OL) are 65% of the above.
2.Contact us if you use at the kW ratings colored in gray.
Lubrication method | AI | AII | B | C | |
---|---|---|---|---|---|
Method | Manual lubrication | Drip lubrication | Oil bath or slinger disc | Forced lubrication |
