Cable carrier Plastic series TKR Series  Major Specifications

TKR15H22-30W40R40

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 1.77
Cable/hose maximum outer diameter mm 20
Cable/hose maximum mass kg/m 2
Maximum travel speed m/min 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 0.4
No. of links per unit Specified number of links (Even number)

Notes
　1.150 m/min for support roller arrangement.
　2.Contact a Tsubaki representative regarding maximum acceleration.
　3.Cannot be used in acidic or alkaline environments.

Allowable load graphs


[Click to enlarge ]
At the conditions in the shaded area of the load diagram, the unsupported length section may run with a sag. This may cause interference between the cable carrier and equipment depending on the installation conditions. Contact a Tsubaki representative for further information.

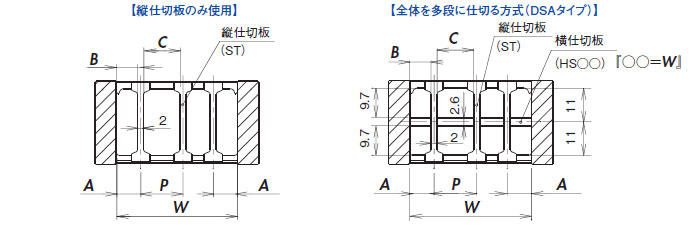

Divider


[Click to enlarge ]

A：Distance from center of vertical divider to end face of link
B：Gap between vertical divider and link
P：Distance between the centers of neighboring vertical dividers
C：Gap between neighboring vertical dividers

Vertical divider


[Click to enlarge ]

Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.

Vertical divider
Model No. Type Fixing method A
mm		B
mm		P
mm		C
mm		Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKR15H22-ST Slide type Sliding installation 5～214～206～504～48 1 Contact us for details. Contact us for details. Contact us for details.
For fixable installation Fixable installation 6 - 20
(2mm increments) 		5 - 19
(2mm increments) 		6 - 28
(2mm increments) 		4 - 26
(2mm increments)

Notes

  • ・The maximum values for A, B, P, and C are applied when using horizontal dividers.
Horizontal divider
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKR15H22-HS40 2 Contact us for details. Contact us for details. Contact us for details.

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
15 22 40 40 120～140 15mm and above

Notes

1.Design and install according to the mounting height H' dimension.

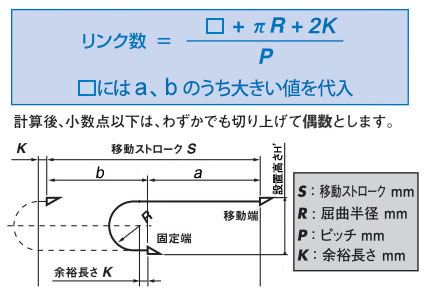

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

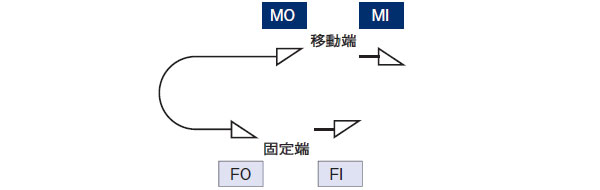

Bracket


[Click to enlarge ]

Moving end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKR15H22W40-MO Engineering plastic (black) 12 Contact us for details. Contact us for details.
TKR15H22W40-MI Engineering plastic (black) 12 Contact us for details. Contact us for details.

Fixed end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKR15H22W40-FO Engineering plastic (black) 12 Contact us for details. Contact us for details.
TKR15H22W40-FI Engineering plastic (black) 12 Contact us for details. Contact us for details.

・Plastic bracket MO and FO, MI and FI are common parts.

※Click here for details on accessories such as strain reliefs
