Field Inspections
【Applicable models 】
- Large size conveyor chain
- Small size conveyor chain
- Drive chain
- Sprocket / Pin gear drive
- Cable Carriers (CABLEVEYOR)
- Synchronous Belts / Belt Sprockets
- Plastic modular chain
- Top chain
- Plastic block chain
Regular inspections are necessary to ensure stable operation of equipment.
Our dedicated staff will visit the customer's site, inspect and diagnose the condition of the product in use and submit a report on the inspection results.
Are you having trouble with these things?
- Knowing the condition of product in use and when it needs to be replaced.
- Knowing how to extend the lifespan of product.
- I would like to know the cause of any defects in the product in use.
TSUBAKI Field Inspections
- Carrying out physical measurements and visual observations by our dedicated staff and diagnosing if product potentially needs to be replaced.
- Estimating potential issues by comprehensively examining the condition of the chain, sprocket and their surrounding area.
- Suggesting maintenance methods and countermeasure-special products for the products in use.
Customer benefits
-
Can plan for replacement.
A list of past inspection results and replacement history is compiled by us to provide an indication of when replacement is due.
-
Preventive maintenance is possible
It enables the status of the product in use and the details of the fault, reducing unexpected stoppages and contributing to stable operation.
-
Able to keep track of products across the plant.
It enables the sharing of products between plants, other departments and with other facilities.
Field inspections flow
1. Confirming inspection details
The customer's desired inspection details and number of units to be inspected are confirmed in advance.
We will interview you in advance about your current problems and any concerns you may have while using the equipment.
2. Conducting
inspections

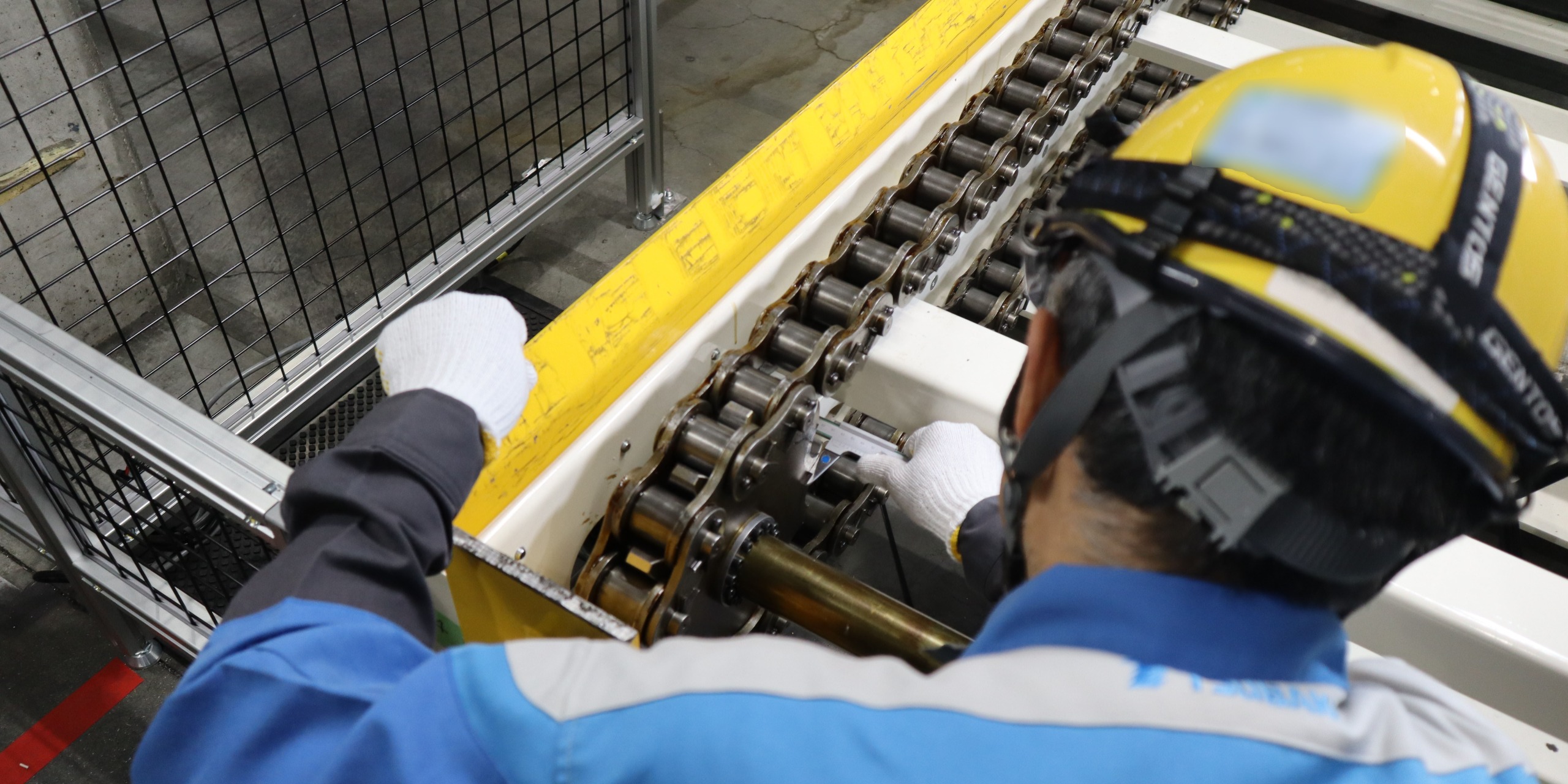

- ・Our dedicated staff will carry out inspections of the product in the customer's plant.
- ・Record the measured dimension, appearance, etc., and submit them in a report.
Main inspection items/portion
Large size conveyor chain
- Clearance between bush and roller
- Roller diameter
- Chain pitch (Wear elongation )
- Link plate thickness/width
- Appearance (Corrosion, contaminations, etc. )
Small size conveyor chain
- Roller diameter
- Chain pitch (Wear elongation )
- Link plate thickness/width
- Appearance (Corrosion, contaminations, etc. )
Drive chain (Roller chain )
[Main inspection items/portion ]
- Roller diameter
- Chain pitch (Wear elongation )
- Pin rotation
- Appearance (Corrosion, contaminations, etc. )
Sprocket
[Main inspection items/portion ]
- Tooth profile (Tooth surface )
- Tooth Width (Tooth side face )
- Appearance (Corrosion, contaminations, etc. )
Top chain
[Main inspection items/portion ]
- Chain pitch elongation (Wear elongation )
- Top plate thickness / Link height
- Appearance (Corrosion, deformation, chipping, etc. )
3. Explaning of inspection report
- ・Our dedicated staff will consult the inspection results and explain the condition of the product in use.
- ・Proposals can also be made for countermeasure-specific products.

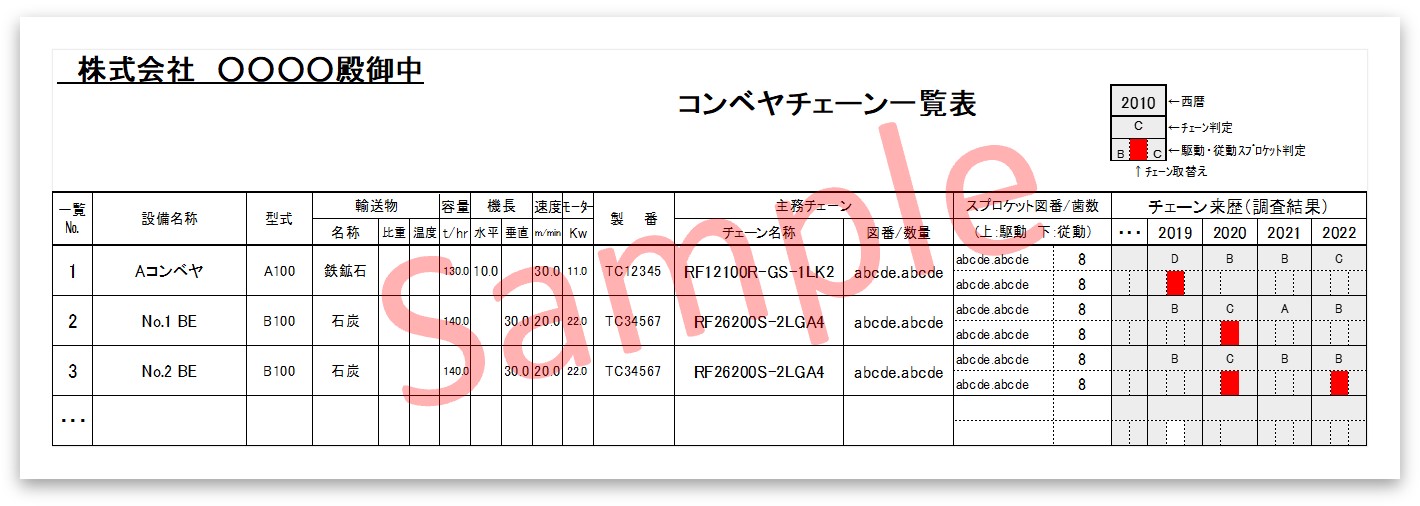

Inspection record
Make a inspection record of the customer's equipment name and the model number of the product in use.
Can be used to plan the schedule of replacement by managing transition of product condition and history of replacement.

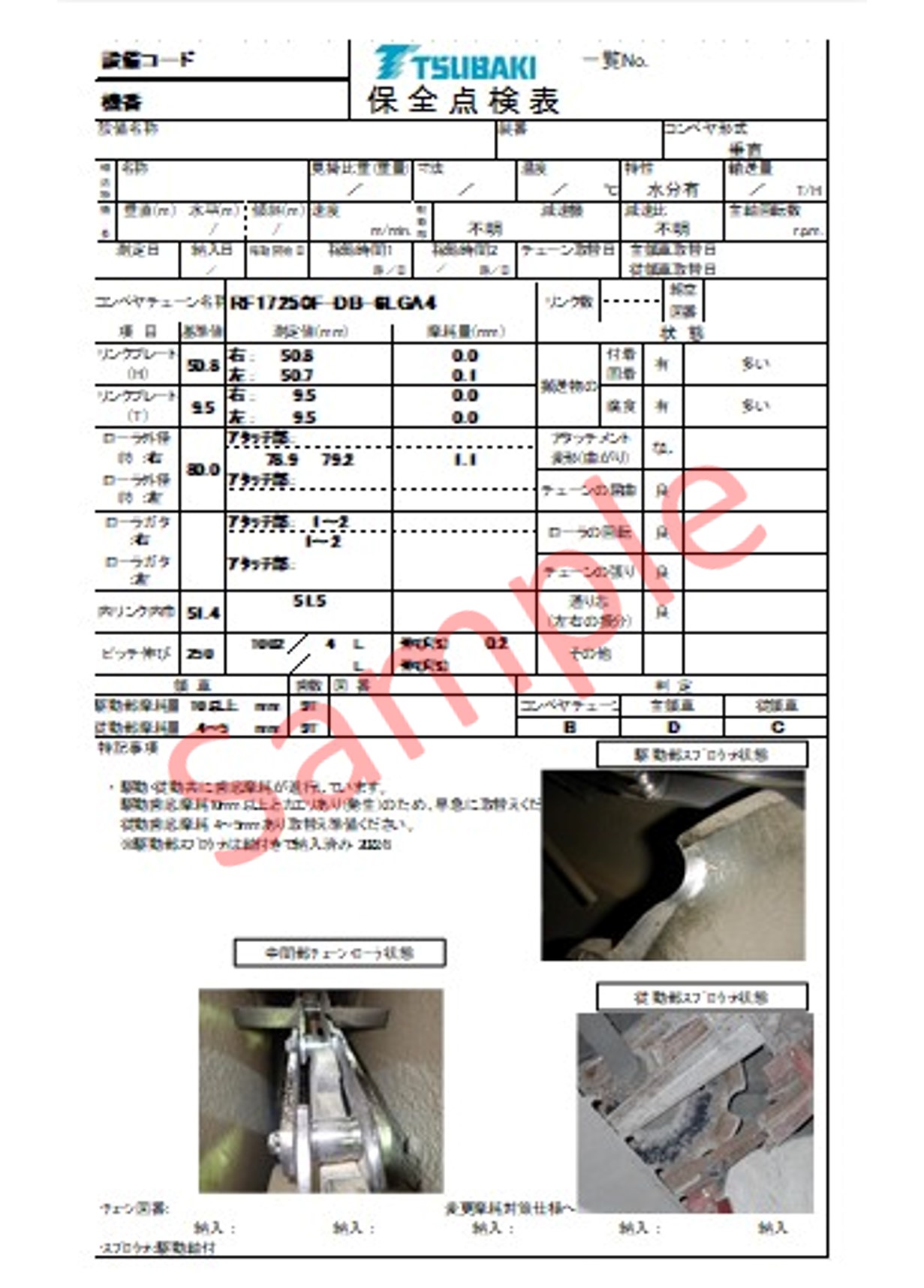

Inspection report
Make a report including measured dimensions, photographs, condition, evaluation and comments on the product for each equipment.

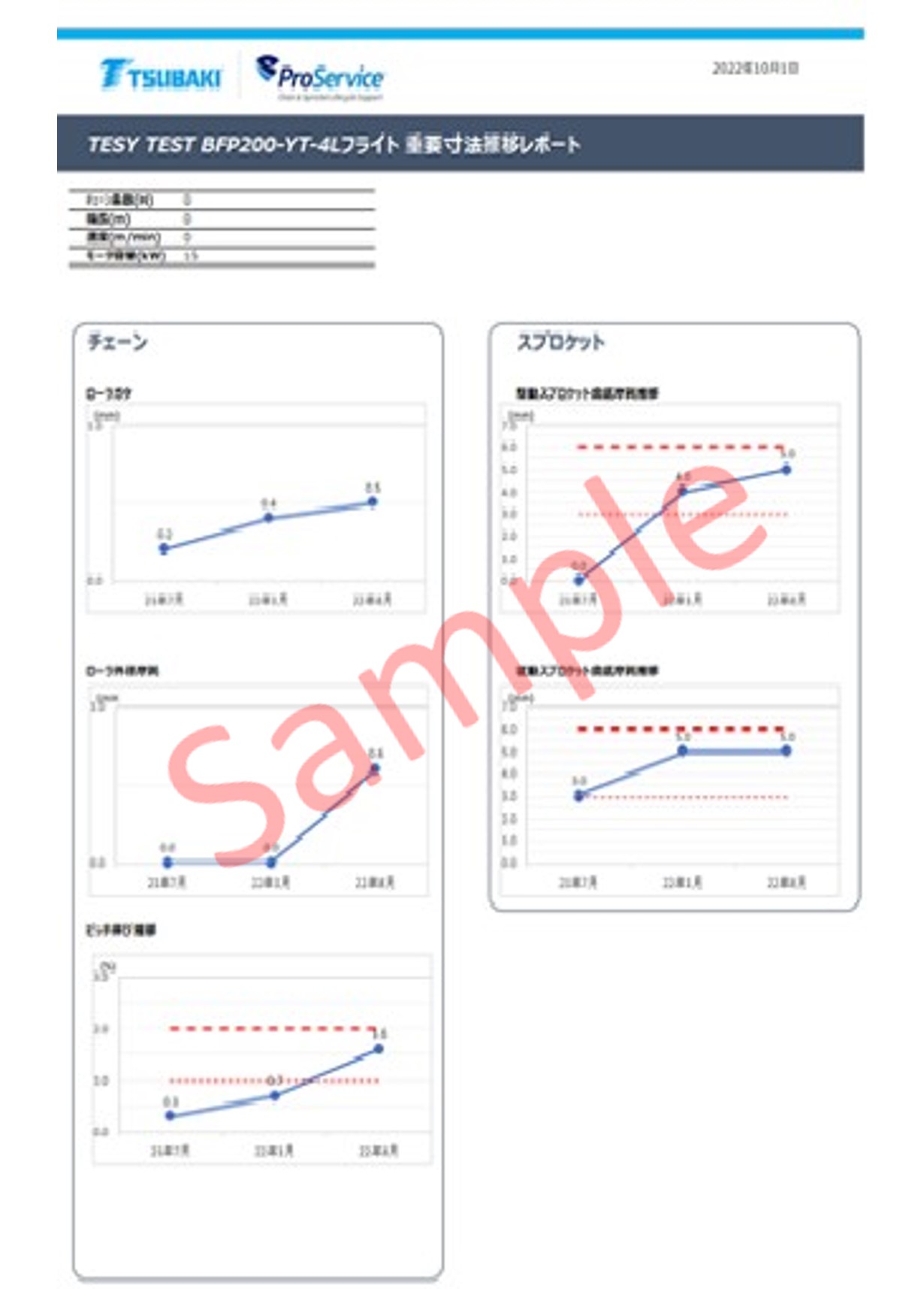

For equipment undergoing continuous inspection, reports showing changes in the amount of wear from the past can also be submitted.
If this service is considered outside Japan, the service content may differ in each location.
Please contact nearest overseas office using the link below.
