Ultra PX Belt HY type 　Major Specifications

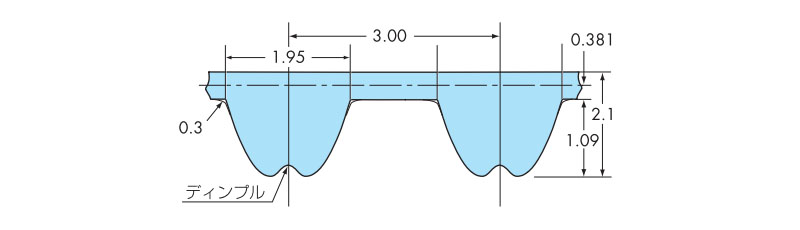

Major Specifications

Belt width	Unit mass g/(mm width x m length)	Initial tension 　N {kgf}
		Recommended value	Maximum value
15	2.6	105 {10.7}	127 {13.0}

Material	Rubber	High strength chloroprene rubber
	Tooth fabric	Nylon with superior wear-resistance
	Cord	Carbon fiber and high-strength glass fiber hybrid
Ambient conditions	Available for the following belt sprocket types	PX Belt Sprocket P3M
	Oil and water resistant	No (cannot be used)
	Operating Ambient Temperature	-15℃～80℃
	RoHS compliant	Compliant
	Electroconductive	None

Belt length

※Made-to-order product with lot pricing. Contact a Tsubaki representative regarding number of lots.

※ Expand all Collapse all

Circumference 312　～　354

Circumference 360　～　396

Circumference 399　～　438

Circumference 447　～　501

Circumference 504　～　579

Circumference 588　～　693

Circumference 699　～　822

Circumference 828　～　948

Circumference 957　～　1110

Circumference 1170　～　1689

Circumference 1749　～　1947

Standard transmission capacity 　W　(Multiplied by the 2.7 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	11.46	13.37	14.32	15.28	17.19	19.1	21.01	22.92	23.87	24.83	26.74	28.65	30.56	34.38	38.2	45.84	47.75	57.3
20	8.10	10.8	10.8	13.5	16.2	18.9	21.6	24.3	24.3	27.0	27.0	29.7	32.4	37.8	43.2	51.3	54.0	64.8
40	13.5	18.9	21.6	24.3	27.0	32.4	37.8	43.2	45.9	48.6	51.3	56.7	62.1	70.2	81.0	97.2	102	121
60	18.9	27.0	29.7	32.4	40.5	45.9	54.0	62.1	64.8	67.5	72.9	81.0	86.4	99.9	113	137	143	172
100	29.7	40.5	45.9	51.3	62.1	72.9	83.7	94.5	99.9	105	116	126	135	156	175	213	221	267
200	54.0	72.9	83.7	94.5	113	132	153	172	180	191	210	229	248	283	318	388	405	483
400	97.2	135	153	172	210	245	283	318	334	353	388	423	459	526	594	720	753	904
600	140	191	216	245	297	348	399	453	477	504	553	604	653	750	845	1028	1071	1285
800	175	245	280	313	383	448	513	580	610	642	707	772	831	955	1074	1306	1363	1630
1000	213	297	340	378	461	540	618	699	734	774	850	928	1001	1147	1293	1566	1636	1954
1200	251	342	391	440	537	631	726	818	861	909	999	1090	1177	1347	1517	1844	1922	2273
1400	288	391	442	507	612	720	828	934	985	1036	1139	1244	1341	1541	1730	2097	2189	2570
1450	299	402	459	515	631	742	853	958	1012	1066	1171	1279	1382	1582	1779	2157	2246	2656
1500	310	415	469	529	653	766	874	993	1047	1104	1212	1320	1425	1633	1836	2227	2311	2732
1600	326	442	502	561	683	801	918	1036	1096	1150	1266	1379	1493	1714	1927	2330	2435	2851
1750	351	475	540	604	731	861	990	1115	1177	1236	1360	1485	1609	1846	2079	2511	2619	3048
1800	361	483	556	621	747	880	1007	1139	1201	1269	1390	1517	1638	1884	2116	2546	2673	3105
2000	391	531	599	672	820	961	1096	1239	1306	1374	1509	1641	1771	2030	2278	2754	2872	3404
2400	448	610	699	780	950	1112	1277	1433	1514	1587	1744	1895	2043	2327	2608	3137	3258	3904
3000	526	720	823	926	1120	1314	1509	1698	1790	1884	2062	2249	2419	2767	3096	3717	3861	4549
3600	591	834	947	1069	1304	1528	1752	1965	2076	2178	2392	2597	2770	3186	3553	4206	4398	5132
4000	621	893	1028	1152	1414	1663	1900	2138	2262	2376	2602	2829	3021	3461	3836	4525	4741	5464
5000	707	1031	1188	1344	1655	1952	2249	2532	2702	2813	3069	3337	3577	4087	4498	5275	5445	6193
6000	729	1136	1341	1528	1900	2273	2562	2902	3072	3191	3564	3852	4174	4700	5124	5991	6161	6806
8000	791	1185	1404	1698	2241	2737	3145	3599	3801	3960	4411	4819	5159	5815	6358	7082	7287	7873
10000											5148	5629	6053	6760	7298	8094	8316	8869
12000												6280	6787	7570	8078	8920	9123	9474
14000													7643	8275	8823	9447	9579	9819

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Standard Transmission Torque 　N・m　(Multiplied by the 2.7 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	11.46	13.37	14.32	15.28	17.19	19.1	21.01	22.92	23.87	24.83	26.74	28.65	30.56	34.38	38.2	45.84	47.75	57.3
20	3.40	4.69	5.34	5.99	7.29	8.55	9.80	11.0	11.6	12.2	13.5	14.7	15.9	18.2	20.5	25.0	26.0	31.2
40	3.13	4.34	4.94	5.53	6.72	7.88	9.04	10.2	10.7	11.3	12.4	13.6	14.7	16.9	19.0	23.2	24.2	29.1
60	2.97	4.10	4.67	5.23	6.37	7.47	8.58	9.66	10.2	10.7	11.7	12.8	13.9	15.9	18.0	21.9	22.8	27.4
100	2.75	3.83	4.37	4.88	5.94	6.96	7.99	9.01	9.50	10.0	11.0	11.9	12.9	14.8	16.7	20.3	21.2	25.4
200	2.53	3.51	3.99	4.48	5.42	6.37	7.31	8.23	8.69	9.15	10.0	10.9	11.8	13.5	15.2	18.4	19.2	23.0
400	2.32	3.21	3.67	4.10	4.99	5.88	6.75	7.58	8.01	8.45	9.28	10.1	10.9	12.5	14.1	17.2	17.9	21.5
600	2.21	3.05	3.45	3.88	4.72	5.56	6.37	7.20	7.61	8.01	8.80	9.61	10.3	11.9	13.4	16.3	17.0	20.4
800	2.10	2.94	3.34	3.75	4.56	5.34	6.12	6.91	7.29	7.66	8.45	9.20	9.93	11.3	12.8	15.5	16.2	19.4
1000	2.02	2.83	3.24	3.61	4.40	5.15	5.91	6.66	7.02	7.39	8.12	8.85	9.55	10.9	12.3	14.9	15.6	18.6
1200	1.99	2.72	3.10	3.51	4.26	5.02	5.77	6.50	6.85	7.23	7.93	8.66	9.36	10.7	12.0	14.6	15.2	18.0
1400	1.97	2.67	3.02	3.45	4.18	4.91	5.64	6.37	6.72	7.07	7.77	8.47	9.15	10.5	11.7	14.3	14.9	17.5
1450	1.97	2.64	3.02	3.40	4.15	4.88	5.61	6.31	6.66	7.02	7.72	8.42	9.09	10.4	11.7	14.2	14.7	17.4
1500	1.97	2.64	2.99	3.37	4.15	4.88	5.56	6.31	6.66	7.02	7.72	8.39	9.07	10.3	11.6	14.1	14.7	17.3
1600	1.94	2.64	2.99	3.34	4.07	4.77	5.48	6.18	6.53	6.85	7.56	8.23	8.91	10.2	11.5	13.9	14.5	17.0
1750	1.91	2.59	2.94	3.29	3.99	4.69	5.40	6.07	6.42	6.75	7.42	8.10	8.77	10.0	11.3	13.6	14.2	16.6
1800	1.91	2.56	2.94	3.29	3.96	4.67	5.34	6.04	6.37	6.72	7.37	8.04	8.69	9.99	11.2	13.5	14.1	16.4
2000	1.86	2.53	2.86	3.21	3.91	4.59	5.23	5.91	6.23	6.56	7.20	7.83	8.45	9.69	10.8	13.1	13.7	16.2
2400	1.78	2.43	2.78	3.10	3.78	4.42	5.07	5.69	6.02	6.31	6.93	7.53	8.12	9.26	10.3	12.4	12.9	15.5
3000	1.67	2.29	2.61	2.94	3.56	4.18	4.80	5.40	5.69	5.99	6.56	7.15	7.69	8.80	9.85	11.8	12.2	14.4
3600	1.56	2.21	2.51	2.83	3.45	4.05	4.64	5.21	5.50	5.77	6.34	6.88	7.34	8.45	9.42	11.1	11.6	13.6
4000	1.48	2.13	2.45	2.75	3.37	3.96	4.53	5.10	5.40	5.67	6.21	6.75	7.20	8.26	9.15	10.8	11.3	13.0
5000	1.35	1.97	2.26	2.56	3.15	3.72	4.29	4.83	5.15	5.37	5.85	6.37	6.83	7.80	8.58	10.0	10.3	11.8
6000	1.16	1.80	2.13	2.43	3.02	3.61	4.07	4.61	4.88	5.07	5.67	6.12	6.64	7.47	8.15	9.53	9.80	10.8
8000	0.94	1.40	1.67	2.02	2.67	3.26	3.75	4.29	4.53	4.72	5.26	5.75	6.15	6.93	7.58	8.45	8.69	9.39
10000											4.91	5.37	5.77	6.45	6.96	7.72	7.93	8.47
12000												4.99	5.40	6.02	6.42	7.10	7.26	7.53
14000													5.21	5.64	6.02	6.45	6.53	6.69

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Available for the following belt sprocket types

Type		Material	Base Model No.	Tooth no. range
DF		Carbon steel	P3M15DF	10T～20T
AF/A BF/B		Carbon steel	P3M15BF P3M15B	21T～32T
		Aluminum	P3M15BF-A P3M15B-A	21T～112T
Cylindrical		Aluminum	P3M-100L-A	10T～60T
Lock Belt Sprockets C Type		Aluminum	P3M15BF-A-C□□	22T～60T
