Ultra PX Belt HY type Major Specifications
Model No. :UP14M100-HY

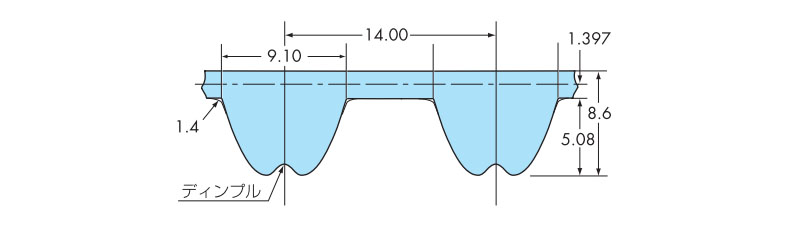

Major Specifications
Belt width | Unit mass kg/m |
Initial tension N {kgf} | |
---|---|---|---|
Recommended value | Maximum value | ||
100 | 0.810 | 2754 {281.0} | 3308 {337.6} |
Material | Rubber | High strength synthetic rubber |
---|---|---|
Tooth fabric | Nylon with superior wear-resistance | |
Cord | Carbon fiber and high-strength glass fiber hybrid | |
Ambient conditions | Available for the following belt sprocket types | PX Belt Sprocket P14M cannot be used. A special belt sprocket is needed. |
Oil and water resistant | No (cannot be used) | |
Operating Ambient Temperature | -15℃~80℃ | |
RoHS compliant | Compliant | |
Electroconductive | None |
Belt length
※Made-to-order product with lot pricing. Contact a Tsubaki representative regarding number of lots.
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG1120UP14M100-HY | 1120 | 80 | Contact us for details. | Contact us for details. | |
BG1176UP14M100-HY | 1176 | 84 | Contact us for details. | Contact us for details. | |
BG1190UP14M100-HY | 1190 | 85 | Contact us for details. | Contact us for details. | |
BG1246UP14M100-HY | 1246 | 89 | Contact us for details. | Contact us for details. | |
BG1344UP14M100-HY | 1344 | 96 | Contact us for details. | Contact us for details. | |
BG1400UP14M100-HY | 1400 | 100 | Contact us for details. | Contact us for details. | |
BG1456UP14M100-HY | 1456 | 104 | Contact us for details. | Contact us for details. | |
BG1540UP14M100-HY | 1540 | 110 | Contact us for details. | Contact us for details. | |
BG1610UP14M100-HY | 1610 | 115 | Contact us for details. | Contact us for details. | |
BG1652UP14M100-HY | 1652 | 118 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG1680UP14M100-HY | 1680 | 120 | Contact us for details. | Contact us for details. | |
BG1736UP14M100-HY | 1736 | 124 | Contact us for details. | Contact us for details. | |
BG1778UP14M100-HY | 1778 | 127 | Contact us for details. | Contact us for details. | |
BG1806UP14M100-HY | 1806 | 129 | Contact us for details. | Contact us for details. | |
BG1890UP14M100-HY | 1890 | 135 | Contact us for details. | Contact us for details. | |
BG1960UP14M100-HY | 1960 | 140 | Contact us for details. | Contact us for details. | |
BG2002UP14M100-HY | 2002 | 143 | Contact us for details. | Contact us for details. | |
BG2100UP14M100-HY | 2100 | 150 | Contact us for details. | Contact us for details. | |
BG2198UP14M100-HY | 2198 | 157 | Contact us for details. | Contact us for details. | |
BG2240UP14M100-HY | 2240 | 160 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG2310UP14M100-HY | 2310 | 165 | Contact us for details. | Contact us for details. | |
BG2380UP14M100-HY | 2380 | 170 | Contact us for details. | Contact us for details. | |
BG2450UP14M100-HY | 2450 | 175 | Contact us for details. | Contact us for details. | |
BG2590UP14M100-HY | 2590 | 185 | Contact us for details. | Contact us for details. | |
BG2660UP14M100-HY | 2660 | 190 | Contact us for details. | Contact us for details. | |
BG2800UP14M100-HY | 2800 | 200 | Contact us for details. | Contact us for details. | |
BG2940UP14M100-HY | 2940 | 210 | Contact us for details. | Contact us for details. | |
BG3150UP14M100-HY | 3150 | 225 | Contact us for details. | Contact us for details. | |
BG3360UP14M100-HY | 3360 | 240 | Contact us for details. | Contact us for details. | |
BG3500UP14M100-HY | 3500 | 250 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG3850UP14M100-HY | 3850 | 275 | Contact us for details. | Contact us for details. | |
BG4004UP14M100-HY | 4004 | 286 | Contact us for details. | Contact us for details. | |
BG4382UP14M100-HY | 4382 | 313 | Contact us for details. | Contact us for details. | |
BG4508UP14M100-HY | 4508 | 322 | Contact us for details. | Contact us for details. |
Standard transmission capacity kW (Multiplied by the 2.71 coefficient of width)
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 56 | 60 | 64 | 72 | |
124.78 | 133.69 | 142.6 | 151.52 | 160.43 | 169.34 | 178.25 | 187.17 | 196.08 | 204.99 | 213.9 | 222.82 | 249.55 | 267.38 | 285.21 | 320.86 | |
20 | 3.79 | 4.06 | 4.33 | 4.60 | 4.60 | 4.87 | 5.14 | 5.42 | 5.69 | 5.96 | 5.96 | 6.23 | 7.04 | 7.31 | 7.85 | 8.67 |
40 | 7.31 | 7.85 | 8.40 | 8.94 | 9.48 | 10.0 | 10.2 | 10.8 | 11.3 | 11.6 | 12.1 | 12.4 | 13.8 | 14.6 | 15.7 | 17.3 |
60 | 11.1 | 11.9 | 12.7 | 13.5 | 14.0 | 14.9 | 15.4 | 16.2 | 16.8 | 17.6 | 18.1 | 18.9 | 20.8 | 22.2 | 23.3 | 26.0 |
100 | 18.4 | 20.0 | 21.1 | 22.4 | 23.5 | 24.9 | 26.0 | 27.1 | 28.1 | 29.2 | 30.3 | 31.4 | 34.6 | 36.8 | 39.0 | 43.3 |
200 | 33.0 | 36.0 | 38.4 | 40.9 | 42.8 | 44.9 | 46.8 | 49.0 | 50.9 | 53.1 | 54.7 | 56.9 | 62.6 | 66.3 | 69.9 | 77.5 |
400 | 58.5 | 64.2 | 69.3 | 73.7 | 76.9 | 80.7 | 84.2 | 87.8 | 91.3 | 95.1 | 98.1 | 101 | 111 | 117 | 124 | 136 |
500 | 70.1 | 76.9 | 83.4 | 88.6 | 92.9 | 97.0 | 101 | 105 | 109 | 114 | 118 | 121 | 133 | 141 | 149 | 163 |
600 | 81.0 | 89.4 | 97.2 | 103 | 107 | 112 | 118 | 122 | 127 | 132 | 137 | 141 | 155 | 164 | 172 | 189 |
800 | 101 | 113 | 123 | 130 | 136 | 142 | 149 | 155 | 161 | 167 | 173 | 179 | 195 | 207 | 217 | 237 |
1000 | 120 | 134 | 147 | 156 | 163 | 171 | 178 | 185 | 192 | 201 | 207 | 214 | 233 | 246 | 259 | 281 |
1200 | 139 | 155 | 171 | 181 | 189 | 197 | 207 | 215 | 223 | 232 | 239 | 247 | 270 | 284 | 298 | 324 |
1400 | 156 | 175 | 194 | 205 | 214 | 223 | 234 | 243 | 252 | 262 | 271 | 279 | 304 | 320 | 336 | 364 |
1450 | 160 | 180 | 199 | 211 | 220 | 229 | 240 | 250 | 259 | 269 | 278 | 287 | 313 | 329 | 345 | 373 |
1500 | 164 | 185 | 204 | 217 | 226 | 236 | 246 | 256 | 266 | 276 | 286 | 295 | 321 | 338 | 354 | 383 |
1600 | 172 | 194 | 215 | 228 | 238 | 247 | 259 | 270 | 280 | 291 | 300 | 310 | 337 | 355 | 372 | 401 |
1750 | 184 | 208 | 231 | 245 | 255 | 265 | 278 | 289 | 299 | 312 | 322 | 332 | 361 | 380 | 398 | 429 |
1800 | 188 | 213 | 236 | 250 | 262 | 272 | 285 | 296 | 307 | 319 | 329 | 339 | 369 | 388 | 406 | 438 |
2000 | 203 | 230 | 257 | 272 | 284 | 295 | 309 | 321 | 332 | 346 | 357 | 368 | 400 | 420 | 440 | 473 |
2400 | 231 | 264 | 296 | 314 | 327 | 340 | 355 | 369 | 382 | 397 | 410 | 423 | 459 | 481 | 503 | 539 |
3000 | 270 | 311 | 352 | 373 | 388 | 401 | 421 | 437 | 452 | 470 | 485 | 499 | 540 | 567 | 591 | 631 |
3600 | 297 | 345 | 392 | 414 | 433 | 447 | 468 | 485 | 502 | 522 | 539 | 555 | 598 | 626 | 653 | 692 |
4000 | 308 | 361 | 411 | 434 | 454 | 471 | 490 | 508 | 525 | 547 | 564 | 580 | 625 | 654 | 680 | 720 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
・The lower right of the bold outlined cells have a belt sprocket speed greater than 33m/s. Ensure the belt sprocket is well balanced.
Standard Transmission Torque N・m (Multiplied by the 2.71 coefficient of width)
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 56 | 60 | 64 | 72 | |
124.78 | 133.69 | 142.6 | 151.52 | 160.43 | 169.34 | 178.25 | 187.17 | 196.08 | 204.99 | 213.9 | 222.82 | 249.55 | 267.38 | 285.21 | 320.86 | |
20 | 1772 | 1907 | 2027 | 2157 | 2260 | 2376 | 2482 | 2590 | 2696 | 2804 | 2899 | 3005 | 3317 | 3523 | 3726 | 4138 |
40 | 1769 | 1905 | 2024 | 2154 | 2257 | 2373 | 2479 | 2588 | 2693 | 2802 | 2896 | 3002 | 3314 | 3517 | 3723 | 4135 |
60 | 1766 | 1902 | 2021 | 2151 | 2254 | 2371 | 2476 | 2585 | 2691 | 2799 | 2894 | 2999 | 3311 | 3514 | 3718 | 4130 |
100 | 1766 | 1902 | 2018 | 2149 | 2252 | 2368 | 2474 | 2582 | 2688 | 2796 | 2891 | 2997 | 3306 | 3512 | 3715 | 4127 |
200 | 1582 | 1715 | 1837 | 1953 | 2046 | 2149 | 2243 | 2338 | 2433 | 2531 | 2617 | 2710 | 2983 | 3162 | 3341 | 3693 |
400 | 1398 | 1531 | 1653 | 1756 | 1837 | 1926 | 2013 | 2097 | 2178 | 2268 | 2344 | 2422 | 2661 | 2815 | 2967 | 3262 |
500 | 1338 | 1471 | 1593 | 1693 | 1772 | 1853 | 1937 | 2018 | 2097 | 2181 | 2254 | 2330 | 2558 | 2704 | 2848 | 3124 |
600 | 1289 | 1422 | 1547 | 1642 | 1715 | 1794 | 1878 | 1953 | 2029 | 2111 | 2181 | 2254 | 2471 | 2612 | 2750 | 3010 |
800 | 1214 | 1346 | 1471 | 1560 | 1631 | 1701 | 1783 | 1853 | 1924 | 2002 | 2067 | 2138 | 2338 | 2468 | 2593 | 2831 |
1000 | 1154 | 1287 | 1411 | 1498 | 1563 | 1631 | 1707 | 1775 | 1842 | 1918 | 1981 | 2046 | 2233 | 2354 | 2474 | 2691 |
1200 | 1105 | 1238 | 1363 | 1444 | 1509 | 1571 | 1647 | 1712 | 1775 | 1848 | 1907 | 1970 | 2149 | 2265 | 2376 | 2579 |
1400 | 1065 | 1195 | 1322 | 1401 | 1463 | 1523 | 1596 | 1658 | 1720 | 1788 | 1848 | 1905 | 2075 | 2186 | 2292 | 2482 |
1450 | 1054 | 1186 | 1314 | 1392 | 1452 | 1512 | 1582 | 1647 | 1707 | 1775 | 1834 | 1891 | 2059 | 2170 | 2273 | 2460 |
1500 | 1046 | 1178 | 1303 | 1382 | 1441 | 1504 | 1571 | 1634 | 1693 | 1761 | 1821 | 1878 | 2046 | 2151 | 2254 | 2439 |
1600 | 1029 | 1159 | 1287 | 1363 | 1422 | 1479 | 1550 | 1612 | 1672 | 1737 | 1794 | 1850 | 2013 | 2119 | 2222 | 2398 |
1750 | 1005 | 1135 | 1262 | 1338 | 1395 | 1449 | 1520 | 1579 | 1636 | 1704 | 1758 | 1812 | 1972 | 2075 | 2173 | 2344 |
1800 | 997 | 1130 | 1254 | 1330 | 1390 | 1447 | 1512 | 1571 | 1628 | 1693 | 1747 | 1802 | 1959 | 2062 | 2157 | 2325 |
2000 | 970 | 1100 | 1227 | 1300 | 1355 | 1411 | 1476 | 1533 | 1588 | 1653 | 1707 | 1758 | 1910 | 2008 | 2100 | 2260 |
2400 | 921 | 1051 | 1178 | 1249 | 1300 | 1352 | 1414 | 1468 | 1523 | 1582 | 1634 | 1682 | 1826 | 1915 | 2002 | 2146 |
3000 | 861 | 991 | 1121 | 1186 | 1235 | 1279 | 1341 | 1392 | 1439 | 1498 | 1544 | 1590 | 1720 | 1804 | 1883 | 2008 |
3600 | 788 | 915 | 1040 | 1100 | 1149 | 1186 | 1241 | 1287 | 1333 | 1384 | 1430 | 1471 | 1588 | 1661 | 1731 | 1837 |
4000 | 737 | 861 | 981 | 1037 | 1084 | 1124 | 1170 | 1214 | 1254 | 1306 | 1346 | 1384 | 1493 | 1560 | 1623 | 1718 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
・The lower right of the bold outlined cells have a belt sprocket speed greater than 33m/s. Ensure the belt sprocket is well balanced.
