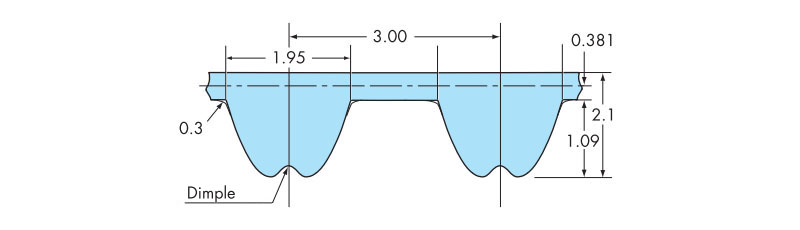

Ultra PX Belt HC Type Major Specifications
Model No. :UP3M6-HC
[Click to enlarge ]
Major Specifications
Belt width |
Unit mass kg/m |
Initial tension N {kgf} |
Recommended value |
Maximum value |
6 |
0.013 |
29 {3.0} |
40 {4.1} |
Material |
Rubber |
High strength chloroprene rubber |
Tooth fabric |
Nylon with superior wear-resistance |
Cord |
High strength glass fiber |
Ambient conditions |
Available for the following belt sprocket types |
PX Belt Sprocket P3M |
Oil and water resistant |
No (cannot be used) |
Operating Ambient Temperature |
-15℃~80℃ |
RoHS compliant |
Compliant |
Electroconductive |
None |
Belt length
※
Expand all
Collapse all
Circumference 120 ~ 159
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG120UP3M6-HC |
120 |
40 |
Contact us for details. |
Contact us for details. |
PDF |
BG123UP3M6-HC |
123 |
41 |
Contact us for details. |
Contact us for details. |
PDF |
BG132UP3M6-HC |
132 |
44 |
Contact us for details. |
Contact us for details. |
PDF |
BG138UP3M6-HC |
138 |
46 |
Contact us for details. |
Contact us for details. |
PDF |
BG141UP3M6-HC |
141 |
47 |
Contact us for details. |
Contact us for details. |
PDF |
BG144UP3M6-HC |
144 |
48 |
Contact us for details. |
Contact us for details. |
PDF |
BG147UP3M6-HC |
147 |
49 |
Contact us for details. |
Contact us for details. |
PDF |
BG150UP3M6-HC |
150 |
50 |
Contact us for details. |
Contact us for details. |
PDF |
BG153UP3M6-HC |
153 |
51 |
Contact us for details. |
Contact us for details. |
PDF |
BG159UP3M6-HC |
159 |
53 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 162 ~ 201
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG162UP3M6-HC |
162 |
54 |
Contact us for details. |
Contact us for details. |
PDF |
BG171UP3M6-HC |
171 |
57 |
Contact us for details. |
Contact us for details. |
PDF |
BG174UP3M6-HC |
174 |
58 |
Contact us for details. |
Contact us for details. |
PDF |
BG177UP3M6-HC |
177 |
59 |
Contact us for details. |
Contact us for details. |
PDF |
BG183UP3M6-HC |
183 |
61 |
Contact us for details. |
Contact us for details. |
PDF |
BG186UP3M6-HC |
186 |
62 |
Contact us for details. |
Contact us for details. |
PDF |
BG192UP3M6-HC |
192 |
64 |
Contact us for details. |
Contact us for details. |
PDF |
BG195UP3M6-HC |
195 |
65 |
Contact us for details. |
Contact us for details. |
PDF |
BG198UP3M6-HC |
198 |
66 |
Contact us for details. |
Contact us for details. |
PDF |
BG201UP3M6-HC |
201 |
67 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 207 ~ 237
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG207UP3M6-HC |
207 |
69 |
Contact us for details. |
Contact us for details. |
PDF |
BG210UP3M6-HC |
210 |
70 |
Contact us for details. |
Contact us for details. |
PDF |
BG213UP3M6-HC |
213 |
71 |
Contact us for details. |
Contact us for details. |
PDF |
BG219UP3M6-HC |
219 |
73 |
Contact us for details. |
Contact us for details. |
PDF |
BG222UP3M6-HC |
222 |
74 |
Contact us for details. |
Contact us for details. |
PDF |
BG225UP3M6-HC |
225 |
75 |
Contact us for details. |
Contact us for details. |
PDF |
BG228UP3M6-HC |
228 |
76 |
Contact us for details. |
Contact us for details. |
PDF |
BG231UP3M6-HC |
231 |
77 |
Contact us for details. |
Contact us for details. |
PDF |
BG234UP3M6-HC |
234 |
78 |
Contact us for details. |
Contact us for details. |
PDF |
BG237UP3M6-HC |
237 |
79 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 240 ~ 276
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG240UP3M6-HC |
240 |
80 |
Contact us for details. |
Contact us for details. |
PDF |
BG243UP3M6-HC |
243 |
81 |
Contact us for details. |
Contact us for details. |
PDF |
BG246UP3M6-HC |
246 |
82 |
Contact us for details. |
Contact us for details. |
PDF |
BG252UP3M6-HC |
252 |
84 |
Contact us for details. |
Contact us for details. |
PDF |
BG255UP3M6-HC |
255 |
85 |
Contact us for details. |
Contact us for details. |
PDF |
BG264UP3M6-HC |
264 |
88 |
Contact us for details. |
Contact us for details. |
PDF |
BG267UP3M6-HC |
267 |
89 |
Contact us for details. |
Contact us for details. |
PDF |
BG270UP3M6-HC |
270 |
90 |
Contact us for details. |
Contact us for details. |
PDF |
BG273UP3M6-HC |
273 |
91 |
Contact us for details. |
Contact us for details. |
PDF |
BG276UP3M6-HC |
276 |
92 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 279 ~ 312
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG279UP3M6-HC |
279 |
93 |
Contact us for details. |
Contact us for details. |
PDF |
BG285UP3M6-HC |
285 |
95 |
Contact us for details. |
Contact us for details. |
PDF |
BG288UP3M6-HC |
288 |
96 |
Contact us for details. |
Contact us for details. |
PDF |
BG291UP3M6-HC |
291 |
97 |
Contact us for details. |
Contact us for details. |
PDF |
BG294UP3M6-HC |
294 |
98 |
Contact us for details. |
Contact us for details. |
PDF |
BG300UP3M6-HC |
300 |
100 |
Contact us for details. |
Contact us for details. |
PDF |
BG303UP3M6-HC |
303 |
101 |
Contact us for details. |
Contact us for details. |
PDF |
BG306UP3M6-HC |
306 |
102 |
Contact us for details. |
Contact us for details. |
PDF |
BG309UP3M6-HC |
309 |
103 |
Contact us for details. |
Contact us for details. |
PDF |
BG312UP3M6-HC |
312 |
104 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 315 ~ 360
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG315UP3M6-HC |
315 |
105 |
Contact us for details. |
Contact us for details. |
PDF |
BG318UP3M6-HC |
318 |
106 |
Contact us for details. |
Contact us for details. |
PDF |
BG327UP3M6-HC |
327 |
109 |
Contact us for details. |
Contact us for details. |
PDF |
BG330UP3M6-HC |
330 |
110 |
Contact us for details. |
Contact us for details. |
PDF |
BG339UP3M6-HC |
339 |
113 |
Contact us for details. |
Contact us for details. |
PDF |
BG342UP3M6-HC |
342 |
114 |
Contact us for details. |
Contact us for details. |
PDF |
BG345UP3M6-HC |
345 |
115 |
Contact us for details. |
Contact us for details. |
PDF |
BG351UP3M6-HC |
351 |
117 |
Contact us for details. |
Contact us for details. |
PDF |
BG354UP3M6-HC |
354 |
118 |
Contact us for details. |
Contact us for details. |
PDF |
BG360UP3M6-HC |
360 |
120 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 363 ~ 399
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG363UP3M6-HC |
363 |
121 |
Contact us for details. |
Contact us for details. |
PDF |
BG369UP3M6-HC |
369 |
123 |
Contact us for details. |
Contact us for details. |
PDF |
BG372UP3M6-HC |
372 |
124 |
Contact us for details. |
Contact us for details. |
PDF |
BG378UP3M6-HC |
378 |
126 |
Contact us for details. |
Contact us for details. |
PDF |
BG381UP3M6-HC |
381 |
127 |
Contact us for details. |
Contact us for details. |
PDF |
BG384UP3M6-HC |
384 |
128 |
Contact us for details. |
Contact us for details. |
PDF |
BG387UP3M6-HC |
387 |
129 |
Contact us for details. |
Contact us for details. |
PDF |
BG393UP3M6-HC |
393 |
131 |
Contact us for details. |
Contact us for details. |
PDF |
BG396UP3M6-HC |
396 |
132 |
Contact us for details. |
Contact us for details. |
PDF |
BG399UP3M6-HC |
399 |
133 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 402 ~ 447
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG402UP3M6-HC |
402 |
134 |
Contact us for details. |
Contact us for details. |
PDF |
BG405UP3M6-HC |
405 |
135 |
Contact us for details. |
Contact us for details. |
PDF |
BG411UP3M6-HC |
411 |
137 |
Contact us for details. |
Contact us for details. |
PDF |
BG414UP3M6-HC |
414 |
138 |
Contact us for details. |
Contact us for details. |
PDF |
BG420UP3M6-HC |
420 |
140 |
Contact us for details. |
Contact us for details. |
PDF |
BG423UP3M6-HC |
423 |
141 |
Contact us for details. |
Contact us for details. |
PDF |
BG426UP3M6-HC |
426 |
142 |
Contact us for details. |
Contact us for details. |
PDF |
BG432UP3M6-HC |
432 |
144 |
Contact us for details. |
Contact us for details. |
PDF |
BG438UP3M6-HC |
438 |
146 |
Contact us for details. |
Contact us for details. |
PDF |
BG447UP3M6-HC |
447 |
149 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 450 ~ 504
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG450UP3M6-HC |
450 |
150 |
Contact us for details. |
Contact us for details. |
PDF |
BG453UP3M6-HC |
453 |
151 |
Contact us for details. |
Contact us for details. |
PDF |
BG459UP3M6-HC |
459 |
153 |
Contact us for details. |
Contact us for details. |
PDF |
BG471UP3M6-HC |
471 |
157 |
Contact us for details. |
Contact us for details. |
PDF |
BG477UP3M6-HC |
477 |
159 |
Contact us for details. |
Contact us for details. |
PDF |
BG483UP3M6-HC |
483 |
161 |
Contact us for details. |
Contact us for details. |
PDF |
BG486UP3M6-HC |
486 |
162 |
Contact us for details. |
Contact us for details. |
PDF |
BG489UP3M6-HC |
489 |
163 |
Contact us for details. |
Contact us for details. |
PDF |
BG501UP3M6-HC |
501 |
167 |
Contact us for details. |
Contact us for details. |
PDF |
BG504UP3M6-HC |
504 |
168 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 507 ~ 588
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG507UP3M6-HC |
507 |
169 |
Contact us for details. |
Contact us for details. |
PDF |
BG510UP3M6-HC |
510 |
170 |
Contact us for details. |
Contact us for details. |
PDF |
BG516UP3M6-HC |
516 |
172 |
Contact us for details. |
Contact us for details. |
PDF |
BG525UP3M6-HC |
525 |
175 |
Contact us for details. |
Contact us for details. |
PDF |
BG537UP3M6-HC |
537 |
179 |
Contact us for details. |
Contact us for details. |
PDF |
BG552UP3M6-HC |
552 |
184 |
Contact us for details. |
Contact us for details. |
PDF |
BG561UP3M6-HC |
561 |
187 |
Contact us for details. |
Contact us for details. |
PDF |
BG570UP3M6-HC |
570 |
190 |
Contact us for details. |
Contact us for details. |
PDF |
BG579UP3M6-HC |
579 |
193 |
Contact us for details. |
Contact us for details. |
PDF |
BG588UP3M6-HC |
588 |
196 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 600 ~ 699
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG600UP3M6-HC |
600 |
200 |
Contact us for details. |
Contact us for details. |
PDF |
BG618UP3M6-HC |
618 |
206 |
Contact us for details. |
Contact us for details. |
PDF |
BG633UP3M6-HC |
633 |
211 |
Contact us for details. |
Contact us for details. |
PDF |
BG651UP3M6-HC |
651 |
217 |
Contact us for details. |
Contact us for details. |
PDF |
BG660UP3M6-HC |
660 |
220 |
Contact us for details. |
Contact us for details. |
PDF |
BG675UP3M6-HC |
675 |
225 |
Contact us for details. |
Contact us for details. |
PDF |
BG681UP3M6-HC |
681 |
227 |
Contact us for details. |
Contact us for details. |
PDF |
BG687UP3M6-HC |
687 |
229 |
Contact us for details. |
Contact us for details. |
PDF |
BG693UP3M6-HC |
693 |
231 |
Contact us for details. |
Contact us for details. |
PDF |
BG699UP3M6-HC |
699 |
233 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 702 ~ 828
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG702UP3M6-HC |
702 |
234 |
Contact us for details. |
Contact us for details. |
PDF |
BG705UP3M6-HC |
705 |
235 |
Contact us for details. |
Contact us for details. |
PDF |
BG720UP3M6-HC |
720 |
240 |
Contact us for details. |
Contact us for details. |
PDF |
BG738UP3M6-HC |
738 |
246 |
Contact us for details. |
Contact us for details. |
PDF |
BG753UP3M6-HC |
753 |
251 |
Contact us for details. |
Contact us for details. |
PDF |
BG756UP3M6-HC |
756 |
252 |
Contact us for details. |
Contact us for details. |
PDF |
BG789UP3M6-HC |
789 |
263 |
Contact us for details. |
Contact us for details. |
PDF |
BG804UP3M6-HC |
804 |
268 |
Contact us for details. |
Contact us for details. |
PDF |
BG822UP3M6-HC |
822 |
274 |
Contact us for details. |
Contact us for details. |
PDF |
BG828UP3M6-HC |
828 |
276 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 852 ~ 957
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG852UP3M6-HC |
852 |
284 |
Contact us for details. |
Contact us for details. |
PDF |
BG861UP3M6-HC |
861 |
287 |
Contact us for details. |
Contact us for details. |
PDF |
BG870UP3M6-HC |
870 |
290 |
Contact us for details. |
Contact us for details. |
PDF |
BG879UP3M6-HC |
879 |
293 |
Contact us for details. |
Contact us for details. |
PDF |
BG885UP3M6-HC |
885 |
295 |
Contact us for details. |
Contact us for details. |
PDF |
BG891UP3M6-HC |
891 |
297 |
Contact us for details. |
Contact us for details. |
PDF |
BG918UP3M6-HC |
918 |
306 |
Contact us for details. |
Contact us for details. |
PDF |
BG933UP3M6-HC |
933 |
311 |
Contact us for details. |
Contact us for details. |
PDF |
BG948UP3M6-HC |
948 |
316 |
Contact us for details. |
Contact us for details. |
PDF |
BG957UP3M6-HC |
957 |
319 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 972 ~ 1170
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG972UP3M6-HC |
972 |
324 |
Contact us for details. |
Contact us for details. |
PDF |
BG981UP3M6-HC |
981 |
327 |
Contact us for details. |
Contact us for details. |
PDF |
BG1005UP3M6-HC |
1005 |
335 |
Contact us for details. |
Contact us for details. |
PDF |
BG1023UP3M6-HC |
1023 |
341 |
Contact us for details. |
Contact us for details. |
PDF |
BG1041UP3M6-HC |
1041 |
347 |
Contact us for details. |
Contact us for details. |
PDF |
BG1050UP3M6-HC |
1050 |
350 |
Contact us for details. |
Contact us for details. |
PDF |
BG1059UP3M6-HC |
1059 |
353 |
Contact us for details. |
Contact us for details. |
PDF |
BG1080UP3M6-HC |
1080 |
360 |
Contact us for details. |
Contact us for details. |
PDF |
BG1110UP3M6-HC |
1110 |
370 |
Contact us for details. |
Contact us for details. |
PDF |
BG1170UP3M6-HC |
1170 |
390 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 1191 ~ 1749
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG1191UP3M6-HC |
1191 |
397 |
Contact us for details. |
Contact us for details. |
PDF |
BG1281UP3M6-HC |
1281 |
427 |
Contact us for details. |
Contact us for details. |
PDF |
BG1305UP3M6-HC |
1305 |
435 |
Contact us for details. |
Contact us for details. |
PDF |
BG1338UP3M6-HC |
1338 |
446 |
Contact us for details. |
Contact us for details. |
PDF |
BG1344UP3M6-HC |
1344 |
448 |
Contact us for details. |
Contact us for details. |
PDF |
BG1380UP3M6-HC |
1380 |
460 |
Contact us for details. |
Contact us for details. |
PDF |
BG1443UP3M6-HC |
1443 |
481 |
Contact us for details. |
Contact us for details. |
PDF |
BG1638UP3M6-HC |
1638 |
546 |
Contact us for details. |
Contact us for details. |
PDF |
BG1689UP3M6-HC |
1689 |
563 |
Contact us for details. |
Contact us for details. |
PDF |
BG1749UP3M6-HC |
1749 |
583 |
Contact us for details. |
Contact us for details. |
PDF |
Circumference 1893 ~ 1947
Model No. |
Circumference mm |
Number of teeth |
Standard Price |
Delivery |
PDF drawing |
BG1893UP3M6-HC |
1893 |
631 |
Contact us for details. |
Contact us for details. |
PDF |
BG1947UP3M6-HC |
1947 |
649 |
Contact us for details. |
Contact us for details. |
PDF |
Standard transmission capacity W
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm |
12 |
14 |
15 |
16 |
18 |
20 |
22 |
24 |
25 |
26 |
28 |
30 |
32 |
36 |
40 |
48 |
50 |
60 |
11.5 |
13.4 |
14.3 |
15.3 |
17.2 |
19.10 |
21 |
22.9 |
23.9 |
24.8 |
26.7 |
28.7 |
30.6 |
34.4 |
38.20 |
45.8 |
47.8 |
57.30 |
20 |
2.00 |
2.00 |
3.00 |
3.00 |
4.00 |
4.00 |
5.00 |
6.00 |
6.00 |
6.00 |
7.00 |
7.00 |
8.00 |
9.00 |
10.0 |
12.0 |
13.0 |
15.0 |
40 |
3.00 |
4.00 |
5.00 |
6.00 |
7.00 |
8.00 |
9.00 |
10.0 |
11.0 |
11.0 |
13.0 |
14.0 |
15.0 |
17.0 |
19.0 |
23.0 |
24.0 |
29.0 |
60 |
5.00 |
6.00 |
7.00 |
8.00 |
10.0 |
11.0 |
13.0 |
15.0 |
16.0 |
16.0 |
18.0 |
20.0 |
21.0 |
24.0 |
27.0 |
33.0 |
34.0 |
41.0 |
100 |
7.00 |
10.0 |
11.0 |
13.0 |
15.0 |
18.0 |
21.0 |
23.0 |
24.0 |
26.0 |
28.0 |
31.0 |
33.0 |
38.0 |
43.0 |
51.0 |
54.0 |
64.0 |
200 |
14.0 |
18.0 |
21.0 |
24.0 |
29.0 |
33.0 |
38.0 |
43.0 |
45.0 |
47.0 |
52.0 |
56.0 |
61.0 |
70.0 |
78.0 |
94.0 |
98.0 |
118 |
400 |
25.0 |
34.0 |
38.0 |
43.0 |
52.0 |
60.0 |
69.0 |
77.0 |
82.0 |
86.0 |
94.0 |
103 |
111 |
127 |
142 |
172 |
179 |
215 |
600 |
35.0 |
48.0 |
54.0 |
61.0 |
73.0 |
85.0 |
98.0 |
109 |
116 |
121 |
133 |
145 |
156 |
179 |
201 |
243 |
253 |
304 |
800 |
44.0 |
60.0 |
69.0 |
77.0 |
93.0 |
109 |
125 |
140 |
147 |
155 |
170 |
185 |
199 |
229 |
256 |
310 |
323 |
388 |
1000 |
53.0 |
73.0 |
83.0 |
93.0 |
112 |
131 |
150 |
168 |
178 |
187 |
205 |
223 |
241 |
275 |
309 |
373 |
388 |
467 |
1200 |
63.0 |
86.0 |
98.0 |
109 |
132 |
155 |
177 |
198 |
210 |
220 |
241 |
262 |
283 |
324 |
363 |
439 |
457 |
549 |
1400 |
72.0 |
100 |
113 |
126 |
153 |
176 |
203 |
227 |
240 |
252 |
277 |
301 |
325 |
371 |
417 |
504 |
524 |
631 |
1450 |
74.0 |
103 |
116 |
130 |
157 |
183 |
210 |
234 |
247 |
260 |
286 |
312 |
336 |
384 |
430 |
520 |
541 |
650 |
1500 |
77.0 |
105 |
120 |
133 |
162 |
188 |
217 |
242 |
255 |
268 |
295 |
321 |
345 |
395 |
443 |
536 |
558 |
671 |
1600 |
80.0 |
111 |
127 |
141 |
172 |
200 |
229 |
256 |
272 |
284 |
313 |
340 |
366 |
420 |
470 |
568 |
591 |
711 |
1750 |
89.0 |
120 |
138 |
154 |
185 |
217 |
249 |
278 |
294 |
309 |
339 |
369 |
396 |
455 |
510 |
615 |
643 |
771 |
1800 |
|
124 |
140 |
157 |
191 |
222 |
256 |
285 |
301 |
317 |
348 |
378 |
407 |
466 |
522 |
632 |
659 |
791 |
2000 |
|
137 |
155 |
174 |
210 |
244 |
281 |
315 |
331 |
349 |
381 |
416 |
448 |
514 |
576 |
694 |
724 |
870 |
2400 |
|
160 |
183 |
202 |
246 |
285 |
329 |
368 |
387 |
407 |
445 |
487 |
523 |
600 |
672 |
810 |
846 |
1015 |
3000 |
|
|
222 |
246 |
299 |
348 |
398 |
447 |
472 |
496 |
542 |
591 |
637 |
729 |
817 |
986 |
1024 |
1229 |
3600 |
|
|
256 |
286 |
349 |
405 |
465 |
520 |
550 |
575 |
631 |
686 |
742 |
848 |
950 |
1142 |
1193 |
1428 |
4000 |
|
|
282 |
315 |
382 |
444 |
506 |
568 |
602 |
631 |
693 |
755 |
812 |
927 |
1037 |
1252 |
1299 |
1557 |
5000 |
|
|
337 |
373 |
458 |
530 |
608 |
681 |
717 |
753 |
825 |
898 |
970 |
1108 |
1235 |
1488 |
1548 |
1843 |
6000 |
|
|
|
434 |
520 |
607 |
694 |
781 |
824 |
867 |
947 |
1026 |
1106 |
1265 |
1417 |
1692 |
1764 |
2089 |
8000 |
|
|
|
|
646 |
752 |
858 |
964 |
1012 |
1060 |
1166 |
1263 |
1359 |
1542 |
1725 |
2053 |
2130 |
2496 |
10000 |
|
|
|
|
|
879 |
1000 |
1120 |
1181 |
1241 |
1349 |
1470 |
1578 |
1783 |
1976 |
2325 |
2410 |
2771 |
12000 |
|
|
|
|
|
983 |
1128 |
1258 |
1330 |
1388 |
1518 |
1648 |
1749 |
1981 |
2183 |
2530 |
2602 |
2920 |
14000 |
|
|
|
|
|
|
1248 |
1383 |
1451 |
1518 |
1653 |
1788 |
1906 |
2125 |
2328 |
2648 |
2699 |
3005 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
Standard Transmission Torque N・m
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm |
12 |
14 |
15 |
16 |
18 |
20 |
22 |
24 |
25 |
26 |
28 |
30 |
32 |
36 |
40 |
48 |
50 |
60 |
11.5 |
13.4 |
14.3 |
15.3 |
17.2 |
19.10 |
21 |
22.9 |
23.9 |
24.8 |
26.7 |
28.7 |
30.6 |
34.4 |
38.20 |
45.8 |
47.8 |
57.30 |
20 |
0.83 |
1.14 |
1.30 |
1.45 |
1.76 |
2.05 |
2.35 |
2.63 |
2.78 |
2.92 |
3.20 |
3.48 |
3.76 |
4.30 |
4.82 |
5.82 |
6.08 |
7.30 |
40 |
0.77 |
1.07 |
1.21 |
1.35 |
1.64 |
1.91 |
2.19 |
2.45 |
2.59 |
2.72 |
2.99 |
3.25 |
3.50 |
4.00 |
4.49 |
5.44 |
5.66 |
6.81 |
60 |
0.74 |
1.02 |
1.16 |
1.29 |
1.57 |
1.82 |
2.10 |
2.34 |
2.48 |
2.61 |
2.86 |
3.11 |
3.35 |
3.84 |
4.31 |
5.20 |
5.42 |
6.51 |
100 |
0.70 |
0.96 |
1.09 |
1.22 |
1.48 |
1.72 |
1.98 |
2.21 |
2.34 |
2.46 |
2.69 |
2.94 |
3.16 |
3.62 |
4.06 |
4.91 |
5.11 |
6.15 |
200 |
0.64 |
0.88 |
1.00 |
1.13 |
1.36 |
1.59 |
1.82 |
2.04 |
2.15 |
2.26 |
2.48 |
2.69 |
2.91 |
3.32 |
3.72 |
4.50 |
4.70 |
5.65 |
400 |
0.58 |
0.80 |
0.91 |
1.02 |
1.24 |
1.44 |
1.65 |
1.85 |
1.96 |
2.05 |
2.25 |
2.45 |
2.64 |
3.03 |
3.40 |
4.09 |
4.27 |
5.14 |
600 |
0.56 |
0.76 |
0.86 |
0.97 |
1.16 |
1.36 |
1.56 |
1.74 |
1.84 |
1.93 |
2.12 |
2.31 |
2.49 |
2.85 |
3.20 |
3.86 |
4.03 |
4.84 |
800 |
0.52 |
0.72 |
0.82 |
0.92 |
1.11 |
1.30 |
1.49 |
1.67 |
1.76 |
1.85 |
2.03 |
2.21 |
2.38 |
2.73 |
3.06 |
3.69 |
3.85 |
4.63 |
1000 |
0.50 |
0.70 |
0.79 |
0.89 |
1.07 |
1.25 |
1.43 |
1.61 |
1.70 |
1.78 |
1.96 |
2.13 |
2.30 |
2.63 |
2.95 |
3.56 |
3.71 |
4.46 |
1200 |
0.50 |
0.69 |
0.78 |
0.86 |
1.05 |
1.23 |
1.41 |
1.57 |
1.67 |
1.75 |
1.92 |
2.08 |
2.25 |
2.57 |
2.89 |
3.49 |
3.64 |
4.37 |
1400 |
0.49 |
0.68 |
0.77 |
0.86 |
1.04 |
1.20 |
1.38 |
1.55 |
1.63 |
1.72 |
1.89 |
2.06 |
2.21 |
2.53 |
2.85 |
3.44 |
3.57 |
4.30 |
1450 |
0.49 |
0.68 |
0.76 |
0.86 |
1.04 |
1.20 |
1.38 |
1.54 |
1.63 |
1.71 |
1.88 |
2.05 |
2.21 |
2.53 |
2.83 |
3.42 |
3.56 |
4.28 |
1500 |
0.49 |
0.67 |
0.76 |
0.85 |
1.03 |
1.20 |
1.38 |
1.54 |
1.62 |
1.71 |
1.88 |
2.05 |
2.19 |
2.51 |
2.82 |
3.41 |
3.55 |
4.27 |
1600 |
0.48 |
0.66 |
0.76 |
0.84 |
1.02 |
1.19 |
1.36 |
1.52 |
1.62 |
1.69 |
1.87 |
2.03 |
2.19 |
2.51 |
2.80 |
3.39 |
3.53 |
4.24 |
1750 |
0.48 |
0.66 |
0.75 |
0.84 |
1.01 |
1.18 |
1.36 |
1.52 |
1.60 |
1.69 |
1.85 |
2.01 |
2.16 |
2.48 |
2.78 |
3.35 |
3.50 |
4.20 |
1800 |
|
0.66 |
0.74 |
0.83 |
1.01 |
1.18 |
1.36 |
1.51 |
1.60 |
1.68 |
1.84 |
2.01 |
2.16 |
2.47 |
2.77 |
3.35 |
3.49 |
4.19 |
2000 |
|
0.65 |
0.74 |
0.83 |
1.00 |
1.17 |
1.34 |
1.50 |
1.58 |
1.67 |
1.82 |
1.98 |
2.14 |
2.45 |
2.75 |
3.31 |
3.46 |
4.15 |
2400 |
|
0.64 |
0.73 |
0.80 |
0.98 |
1.13 |
1.31 |
1.46 |
1.54 |
1.62 |
1.77 |
1.94 |
2.08 |
2.39 |
2.67 |
3.22 |
3.37 |
4.04 |
3000 |
|
|
0.71 |
0.78 |
0.95 |
1.11 |
1.27 |
1.42 |
1.50 |
1.58 |
1.72 |
1.88 |
2.03 |
2.32 |
2.60 |
3.14 |
3.26 |
3.91 |
3600 |
|
|
0.68 |
0.76 |
0.93 |
1.07 |
1.23 |
1.38 |
1.46 |
1.53 |
1.67 |
1.82 |
1.97 |
2.25 |
2.52 |
3.03 |
3.16 |
3.79 |
4000 |
|
|
0.67 |
0.75 |
0.91 |
1.06 |
1.21 |
1.36 |
1.44 |
1.50 |
1.65 |
1.80 |
1.94 |
2.21 |
2.47 |
2.99 |
3.10 |
3.72 |
5000 |
|
|
0.64 |
0.71 |
0.87 |
1.01 |
1.16 |
1.30 |
1.37 |
1.44 |
1.58 |
1.71 |
1.85 |
2.12 |
2.36 |
2.84 |
2.96 |
3.52 |
6000 |
|
|
|
0.69 |
0.83 |
0.97 |
1.10 |
1.24 |
1.31 |
1.38 |
1.51 |
1.63 |
1.76 |
2.01 |
2.25 |
2.69 |
2.81 |
3.32 |
8000 |
|
|
|
|
0.77 |
0.90 |
1.02 |
1.15 |
1.21 |
1.27 |
1.39 |
1.51 |
1.62 |
1.84 |
2.06 |
2.45 |
2.54 |
2.98 |
10000 |
|
|
|
|
|
0.84 |
0.95 |
1.07 |
1.13 |
1.18 |
1.29 |
1.40 |
1.51 |
1.70 |
1.89 |
2.22 |
2.30 |
2.65 |
12000 |
|
|
|
|
|
0.78 |
0.90 |
1.00 |
1.06 |
1.10 |
1.21 |
1.31 |
1.39 |
1.58 |
1.74 |
2.01 |
2.07 |
2.32 |
14000 |
|
|
|
|
|
|
0.85 |
0.94 |
0.99 |
1.04 |
1.13 |
1.22 |
1.30 |
1.45 |
1.59 |
1.81 |
1.84 |
1.99 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
Available for the following belt sprocket types
Type |
Material |
Base Model No. |
Tooth no. range |
DF |
|
Carbon steel |
P3M6DF |
10T~20T |
AF/A BF/B |
|
Carbon steel |
P3M6BF P3M6B |
21T~32T |
Aluminum |
P3M6BF-A P3M6B-A |
21T~112T |
Cylindrical |
|
Aluminum |
P3M-100L-A |
10T~60T |
Contact Information
Online Inquiries
For inquiries in English, visit the Inquiries page on our Tsubaki Group website.
