Ultra PX Belt HC Type　Major Specifications

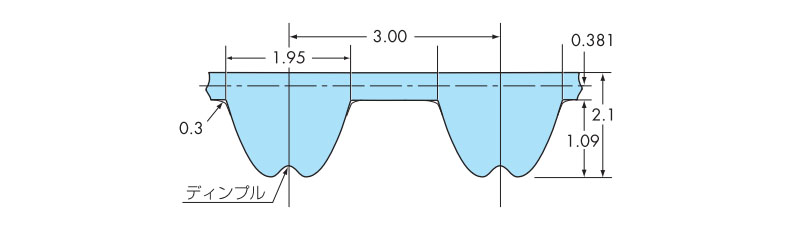

Major Specifications

Belt width	Unit mass g/(mm width x m length)	Initial tension 　N {kgf}
		Recommended value	Maximum value
10	2.2	52 {5.3}	72 {7.3}

Material	Rubber	High strength chloroprene rubber
	Tooth fabric	Nylon with superior wear-resistance
	Cord	High strength glass fiber
Ambient conditions	Available for the following belt sprocket types	PX Belt Sprocket P3M
	Oil and water resistant	No (cannot be used)
	Operating Ambient Temperature	-15℃～80℃
	RoHS compliant	Compliant
	Electroconductive	None

Belt length

※ Expand all Collapse all

Circumference 120　～　159

Circumference 162　～　201

Circumference 207　～　237

Circumference 240　～　276

Circumference 279　～　312

Circumference 315　～　360

Circumference 363　～　399

Circumference 402　～　447

Circumference 450　～　504

Circumference 507　～　588

Circumference 600　～　699

Circumference 702　～　828

Circumference 852　～　957

Circumference 972　～　1170

Circumference 1191　～　1749

Circumference 1893　～　1947

Standard transmission capacity 　W　(Multiplied by the 1.79 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	11.5	13.4	14.3	15.3	17.2	19.10	21	22.9	23.9	24.8	26.7	28.7	30.6	34.4	38.20	45.8	47.8	57.30
20	3.58	3.58	5.37	5.37	7.16	7.16	8.95	10.7	10.7	10.7	12.5	12.5	14.3	16.1	17.9	21.4	23.2	26.8
40	5.37	7.16	8.95	10.7	12.5	14.3	16.1	17.9	19.6	19.6	23.2	25.0	26.8	30.4	34.0	41.1	42.9	51.9
60	8.95	10.7	12.5	14.3	17.9	19.6	23.2	26.8	28.6	28.6	32.2	35.8	37.5	42.9	48.3	59.0	60.8	73.3
100	12.5	17.9	19.6	23.2	26.8	32.2	37.5	41.1	42.9	46.5	50.1	55.4	59.0	68.0	76.9	91.2	96.6	114
200	25.0	32.2	37.5	42.9	51.9	59.0	68.0	76.9	80.5	84.1	93.0	100	109	125	139	168	175	211
400	44.7	60.8	68.0	76.9	93.0	107	123	137	146	153	168	184	198	227	254	307	320	384
600	62.6	85.9	96.6	109	130	152	175	195	207	216	238	259	279	320	359	434	452	544
800	78.7	107	123	137	166	195	223	250	263	277	304	331	356	409	458	554	578	694
1000	94.8	130	148	166	200	234	268	300	318	334	366	399	431	492	553	667	694	835
1200	112	153	175	195	236	277	316	354	375	393	431	468	506	579	649	785	818	982
1400	128	179	202	225	273	315	363	406	429	451	495	538	581	664	746	902	937	1129
1450	132	184	207	232	281	327	375	418	442	465	511	558	601	687	769	930	968	1163
1500	137	187	214	238	289	336	388	433	456	479	528	574	617	707	792	959	998	1201
1600	143	198	227	252	307	358	409	458	486	508	560	608	655	751	841	1016	1057	1272
1750	159	214	247	275	331	388	445	497	526	553	606	660	708	814	912	1100	1150	1380
1800		221	250	281	341	397	458	510	538	567	622	676	728	834	934	1131	1179	1415
2000		245	277	311	375	436	502	563	592	624	681	744	801	920	1031	1242	1295	1557
2400		286	327	361	440	510	588	658	692	728	796	871	936	1074	1202	1449	1514	1816
3000			397	440	535	622	712	800	844	887	970	1057	1140	1304	1462	1764	1832	2199
3600			458	511	624	724	832	930	984	1029	1129	1227	1328	1517	1700	2044	2135	2556
4000			504	563	683	794	905	1016	1077	1129	1240	1351	1453	1659	1856	2241	2325	2787
5000			603	667	819	948	1088	1218	1283	1347	1476	1607	1736	1983	2210	2663	2770	3298
6000				776	930	1086	1242	1397	1474	1551	1695	1836	1979	2264	2536	3028	3157	3739
8000					1156	1346	1535	1725	1811	1897	2087	2260	2432	2760	3087	3674	3812	4467
10000						1573	1790	2004	2113	2221	2414	2631	2824	3191	3537	4161	4313	4960
12000						1759	2019	2251	2380	2484	2717	2949	3130	3545	3907	4528	4657	5226
14000							2233	2475	2597	2717	2958	3200	3411	3803	4167	4739	4831	5378

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Standard Transmission Torque 　N・m　(Multiplied by the 1.79 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	11.5	13.4	14.3	15.3	17.2	19.10	21	22.9	23.9	24.8	26.7	28.7	30.6	34.4	38.20	45.8	47.8	57.30
20	1.48	2.04	2.32	2.59	3.15	3.66	4.20	4.70	4.97	5.22	5.72	6.22	6.73	7.69	8.62	10.4	10.8	13.0
40	1.37	1.91	2.16	2.41	2.93	3.41	3.92	4.38	4.63	4.86	5.35	5.81	6.26	7.16	8.03	9.73	10.1	12.1
60	1.32	1.82	2.07	2.30	2.81	3.25	3.75	4.18	4.43	4.67	5.11	5.56	5.99	6.87	7.71	9.30	9.70	11.6
100	1.25	1.71	1.95	2.18	2.64	3.07	3.54	3.95	4.18	4.40	4.81	5.26	5.65	6.47	7.26	8.78	9.14	11.0
200	1.14	1.57	1.79	2.02	2.43	2.84	3.25	3.65	3.84	4.04	4.43	4.81	5.20	5.94	6.65	8.05	8.41	10.1
400	1.03	1.43	1.62	1.82	2.21	2.57	2.95	3.31	3.50	3.66	4.02	4.38	4.72	5.42	6.08	7.32	7.64	9.20
600	1.00	1.36	1.53	1.73	2.07	2.43	2.79	3.11	3.29	3.45	3.79	4.13	4.45	5.10	5.72	6.90	7.21	8.66
800	0.93	1.28	1.46	1.64	1.98	2.32	2.66	2.98	3.15	3.31	3.63	3.95	4.26	4.88	5.47	6.60	6.89	8.28
1000	0.89	1.25	1.41	1.59	1.91	2.23	2.55	2.88	3.04	3.18	3.50	3.81	4.11	4.70	5.28	6.37	6.64	7.98
1200	0.89	1.23	1.39	1.53	1.87	2.20	2.52	2.81	2.98	3.13	3.43	3.72	4.02	4.60	5.17	6.24	6.51	7.82
1400	0.87	1.21	1.37	1.53	1.86	2.14	2.47	2.77	2.91	3.07	3.38	3.68	3.95	4.52	5.10	6.15	6.39	7.69
1450	0.87	1.21	1.36	1.53	1.86	2.14	2.47	2.75	2.91	3.06	3.36	3.66	3.95	4.52	5.06	6.12	6.37	7.66
1500	0.87	1.19	1.36	1.52	1.84	2.14	2.47	2.75	2.89	3.06	3.36	3.66	3.92	4.49	5.04	6.10	6.35	7.64
1600	0.85	1.18	1.36	1.50	1.82	2.13	2.43	2.72	2.89	3.02	3.34	3.63	3.92	4.49	5.01	6.06	6.31	7.58
1750	0.85	1.18	1.34	1.50	1.80	2.11	2.43	2.72	2.86	3.02	3.31	3.59	3.86	4.43	4.97	5.99	6.26	7.51
1800		1.18	1.32	1.48	1.80	2.11	2.43	2.70	2.86	3.00	3.29	3.59	3.86	4.42	4.95	5.99	6.24	7.50
2000		1.16	1.32	1.48	1.79	2.09	2.39	2.68	2.82	2.98	3.25	3.54	3.83	4.38	4.92	5.92	6.19	7.42
2400		1.14	1.30	1.43	1.75	2.02	2.34	2.61	2.75	2.89	3.16	3.47	3.72	4.27	4.77	5.76	6.03	7.23
3000			1.27	1.39	1.70	1.98	2.27	2.54	2.68	2.82	3.07	3.36	3.63	4.15	4.65	5.62	5.83	6.99
3600			1.21	1.36	1.66	1.91	2.20	2.47	2.61	2.73	2.98	3.25	3.52	4.02	4.51	5.42	5.65	6.78
4000			1.19	1.34	1.62	1.89	2.16	2.43	2.57	2.68	2.95	3.22	3.47	3.95	4.42	5.35	5.54	6.65
5000			1.14	1.27	1.55	1.80	2.07	2.32	2.45	2.57	2.82	3.06	3.31	3.79	4.22	5.08	5.29	6.30
6000				1.23	1.48	1.73	1.96	2.21	2.34	2.47	2.70	2.91	3.15	3.59	4.02	4.81	5.02	5.94
8000					1.37	1.61	1.82	2.05	2.16	2.27	2.48	2.70	2.89	3.29	3.68	4.38	4.54	5.33
10000						1.50	1.70	1.91	2.02	2.11	2.30	2.50	2.70	3.04	3.38	3.97	4.11	4.74
12000						1.39	1.61	1.79	1.89	1.96	2.16	2.34	2.48	2.82	3.11	3.59	3.70	4.15
14000							1.52	1.68	1.77	1.86	2.02	2.18	2.32	2.59	2.84	3.23	3.29	3.56

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Available for the following belt sprocket types

Type		Material	Base Model No.	Tooth no. range
DF		Carbon steel	P3M10DF	10T～20T
AF/A BF/B		Carbon steel	P3M10BF P3M10B	21T～32T
		Aluminum	P3M10BF-A P3M10B-A	21T～112T
Cylindrical		Aluminum	P3M-100L-A	10T～60T
Lock Belt Sprockets C Type		Carbon steel	P3M10BF-C□□	22T～32T
		Aluminum	P3M10BF-A-C□□	22T～60T
