Ultra PX belt - oil proof type   Major Specifications

Model No.:UP14M100-HA


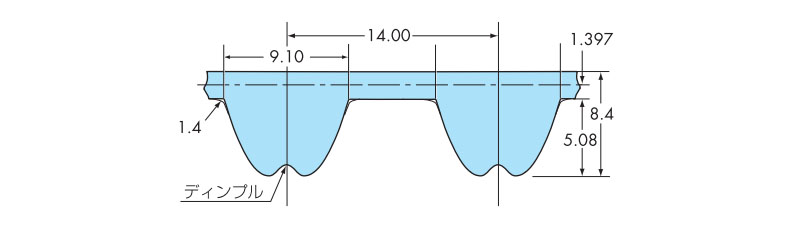

[ Click to enlarge ]

Major Specifications

Belt width Unit mass kg/m Initial tension  N {kgf}
Recommended value Maximum value
100 0.787 2170 {221.0} 2880 {294.0}
Material Rubber High strength synthetic rubber (Oil Proof Type)
Tooth fabric Nylon with superior wear-resistance
Cord High strength glass fiber
Ambient conditions Oil and water resistant Can be used in contact with oil and water (including water-soluble coolant).
Available for the following pulley types PX Pulley P14M
Operating Ambient Temperature 0℃~60℃(When in contact with oil)
RoHS compliant Compliant
Electroconductive None

※Can be used in heat resistant applications. Contact a Tsubaki representative for more information.

Belt length

Expand all Collapse all

Circumference1120 ~ 1652

Model No. Circumference mm Number of teeth Standard Price Delivery
BG1120UP14M100-HA 1120 80 Contact us for details. Contact us for details.
BG1176UP14M100-HA 1176 84 Contact us for details. Contact us for details.
BG1190UP14M100-HA 1190 85 Contact us for details. Contact us for details.
BG1246UP14M100-HA 1246 89 Contact us for details. Contact us for details.
BG1344UP14M100-HA 1344 96 Contact us for details. Contact us for details.
BG1400UP14M100-HA 1400 100 Contact us for details. Contact us for details.
BG1456UP14M100-HA 1456 104 Contact us for details. Contact us for details.
BG1540UP14M100-HA 1540 110 Contact us for details. Contact us for details.
BG1610UP14M100-HA 1610 115 Contact us for details. Contact us for details.
BG1652UP14M100-HA 1652 118 Contact us for details. Contact us for details.

Circumference1680 ~ 2240

Model No. Circumference mm Number of teeth Standard Price Delivery
BG1680UP14M100-HA 1680 120 Contact us for details. Contact us for details.
BG1736UP14M100-HA 1736 124 Contact us for details. Contact us for details.
BG1778UP14M100-HA 1778 127 Contact us for details. Contact us for details.
BG1806UP14M100-HA 1806 129 Contact us for details. Contact us for details.
BG1890UP14M100-HA 1890 135 Contact us for details. Contact us for details.
BG1960UP14M100-HA 1960 140 Contact us for details. Contact us for details.
BG2002UP14M100-HA 2002 143 Contact us for details. Contact us for details.
BG2100UP14M100-HA 2100 150 Contact us for details. Contact us for details.
BG2198UP14M100-HA 2198 157 Contact us for details. Contact us for details.
BG2240UP14M100-HA 2240 160 Contact us for details. Contact us for details.

Circumference2310 ~ 3500

Model No. Circumference mm Number of teeth Standard Price Delivery
BG2310UP14M100-HA 2310 165 Contact us for details. Contact us for details.
BG2380UP14M100-HA 2380 170 Contact us for details. Contact us for details.
BG2450UP14M100-HA 2450 175 Contact us for details. Contact us for details.
BG2590UP14M100-HA 2590 185 Contact us for details. Contact us for details.
BG2660UP14M100-HA 2660 190 Contact us for details. Contact us for details.
BG2800UP14M100-HA 2800 200 Contact us for details. Contact us for details.
BG2940UP14M100-HA 2940 210 Contact us for details. Contact us for details.
BG3150UP14M100-HA 3150 225 Contact us for details. Contact us for details.
BG3360UP14M100-HA 3360 240 Contact us for details. Contact us for details.
BG3500UP14M100-HA 3500 250 Contact us for details. Contact us for details.

Circumference3850 ~ 4508

Model No. Circumference mm Number of teeth Standard Price Delivery
BG3850UP14M100-HA 3850 275 Contact us for details. Contact us for details.
BG4004UP14M100-HA 4004 286 Contact us for details. Contact us for details.
BG4382UP14M100-HA 4382 313 Contact us for details. Contact us for details.
BG4508UP14M100-HA 4508 322 Contact us for details. Contact us for details.

Standard transmission capacity kW  (Multiplied by the 2.84 coefficient of width)

Small
pulley
rotation
speed
r/min
Upper row: Number of teeth of small pulley Lower row: Pitch diameter mm
28 30 32 34 36 38 40 42 44 46 48 50 56 60 64 72
124.78 133.69 142.60 151.52 160.43 169.34 178.25 187.17 196.08 204.99 213.90 222.82 249.55 267.38 285.21 320.86
20 2.84 3.12 3.12 3.40 3.69 3.97 4.26 4.26 4.54 4.82 5.11 5.39 5.96 6.24 6.81 7.66
40 5.39 5.68 6.24 6.53 7.10 7.66 7.95 8.52 8.80 9.65 9.94 10.5 11.6 12.4 13.3 15.0
60 7.66 8.80 9.37 9.94 10.7 11.3 11.9 12.4 13.3 13.9 14.4 15.3 17.0 18.4 19.5 22.1
100 12.7 13.9 14.7 15.9 17.0 18.1 17.6 20.1 21.0 22.4 23.5 24.4 27.5 29.5 31.5 35.7
200 23.5 25.5 27.5 29.5 32.0 33.7 35.7 37.7 39.7 41.4 43.4 45.7 51.4 55.0 59.3 67.0
400 43.1 46.8 50.5 53.9 57.6 61.0 64.7 68.1 71.5 75.2 78.6 82.0 92.3 99.4 106 120
500 52.2 56.5 61.0 65.0 69.5 73.8 77.8 82.0 86.0 90.3 94.5 98.8 111 119 127 143
600 61.3 66.4 71.2 76.1 81.5 86.0 91.1 95.7 100 105 110 115 129 139 149 168
800 78.9 85.7 92.0 98.2 104 111 117 123 129 136 142 148 167 179 192 216
1000 94.2 102 110 118 126 134 142 149 157 165 173 181 203 218 234 264
1200 110 120 129 139 149 158 167 176 185 195 204 213 240 258 276 312
1400 126 138 149 160 172 182 193 203 214 225 236 247 278 299 320 362
1450 130 142 153 165 177 188 199 210 221 232 243 255 287 309 331 374
1500 134 147 158 170 182 194 205 216 228 239 251 263 296 319 342 386
1600 140 154 166 179 193 205 217 229 242 255 267 280 315 340 365 413
1750 147 164 178 191 208 229 235 248 262 276 290 305 344 371 399 452
1800 151 168 182 197 214 227 241 255 270 284 299 314 354 382 411 466
2000 166 185 201 218 237 253 268 284 300 316 333 350 395 427 460 522
2400 191 216 236 257 281 300 319 339 358 379 400 421 476 516 555 631
3000 337 360 384 408 433 459 485 511 580 629 679 773
3600 386 414 443 472 501 531 620 680 739 856
4000 465 504 545 633 701 773 898

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

・The lower right of the bold outlined cells have a pulley speed greater than 33m/s. Ensure the pulley is well balanced.

Standard Transmission Torque N・m  (Multiplied by the 2.84 coefficient of width)

Small
pulley
rotation
speed
r/min
Upper row: Number of teeth of small pulley Lower row: Pitch diameter mm
28 30 32 34 36 38 40 42 44 46 48 50 56 60 64 72
124.78 133.69 142.60 151.52 160.43 169.34 178.25 187.17 196.08 204.99 213.90 222.82 249.55 267.38 285.21 320.86
20 1371 1510 1510 1647 1786 1922 2059 2059 2198 2334 2470 2609 2882 3021 3294 3706
40 1309 1377 1513 1584 1721 1860 1928 2064 2135 2272 2340 2479 2754 2962 3166 3581
60 1241 1380 1471 1564 1701 1792 1885 1976 2115 2206 2300 2436 2712 2942 3126 3541
100 1215 1326 1411 1519 1630 1740 1686 1936 2019 2130 2240 2323 2627 2820 3013 3427
200 1121 1221 1317 1414 1525 1607 1706 1803 1899 1982 2078 2178 2453 2635 2828 3203
400 1028 1118 1204 1286 1377 1459 1544 1627 1709 1794 1877 1959 2203 2371 2538 2865
500 996 1079 1164 1241 1331 1408 1485 1564 1641 1726 1803 1888 2121 2277 2439 2751
600 974 1059 1133 1212 1295 1368 1448 1522 1601 1681 1760 1837 2061 2215 2374 2675
800 942 1022 1099 1172 1252 1326 1397 1473 1542 1624 1698 1775 1993 2144 2294 2587
1000 900 976 1053 1127 1209 1280 1354 1428 1502 1576 1652 1729 1942 2090 2237 2530
1200 880 959 1033 1107 1189 1258 1331 1405 1479 1550 1627 1698 1911 2056 2203 2487
1400 866 945 1019 1093 1172 1243 1317 1388 1462 1536 1610 1686 1897 2041 2186 2470
1450 860 940 1013 1087 1170 1241 1312 1385 1459 1530 1604 1678 1891 2036 2181 2465
1500 857 937 1008 1084 1164 1238 1309 1380 1454 1527 1601 1675 1885 2030 2178 2462
1600 834 920 994 1067 1153 1226 1297 1371 1445 1519 1596 1672 1882 2030 2178 2465
1750 806 894 971 1047 1136 1255 1280 1357 1431 1508 1584 1664 1877 2027 2178 2467
1800 806 891 968 1047 1136 1207 1283 1357 1431 1510 1587 1667 1880 2030 2181 2473
2000 792 886 962 1042 1133 1207 1283 1357 1434 1513 1593 1672 1888 2041 2198 2493
2400 763 860 940 1022 1118 1192 1269 1349 1428 1510 1590 1675 1897 2053 2209 2510
3000 1073 1147 1224 1300 1380 1462 1544 1627 1846 2002 2161 2459
3600 1025 1099 1175 1252 1329 1408 1644 1803 1962 2269
4000 1110 1204 1300 1510 1675 1846 2144

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

・The lower right of the bold outlined cells have a pulley speed greater than 33m/s. Ensure the pulley is well balanced.

Available for the following pulley types

Type Material Base Model No. Tooth no. range
AF/A
BF/B
Carbon steel P14M100AF
P14M100A
P14M100BF
P14M100B
28T~120T
