PX Belt Shinayaka 530 type 　Major Specifications

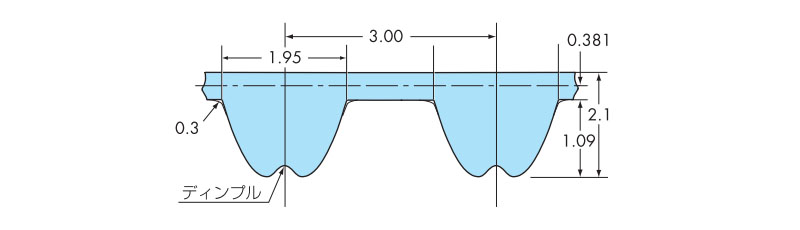

Model No. examples

BG	300	P	3M	10	-530
｜ Synchronous belt	｜ Belt length mm	｜ P：PX	｜ Types (Pitch )	｜ Belt width mm	｜ SHINAYAKA 530 Type

Major Specifications

Belt width	Unit mass g/(mm width x m length)	Initial tension 　N {kgf}
		Recommended value	Maximum value
15	2	57 {5.8}	74 {7.5}

Material	Rubber	Chloroprene rubber
	Tooth fabric	Nylon woven fabric (Low wear debris type)
	Cord	Fiberglass
Ambient conditions	Available for the following belt sprocket types	PX Belt Sprocket P3M
	Oil and water resistant	No (cannot be used)
	Operating Ambient Temperature	-15℃～80℃
	RoHS compliant	Compliant
	Electroconductive	None

Belt length

※ Expand all Collapse all

Circumference 120　～　159

Circumference 162　～　201

Circumference 207　～　237

Circumference 240　～　276

Circumference 279　～　312

Circumference 315　～　360

Circumference 363　～　405

Circumference 411　～　471

Circumference 477　～　537

Circumference 552　～　687

Circumference 693　～　804

Circumference 822　～　948

Circumference 957　～　1110

Circumference 1170　～　1689

Circumference 1749　～　1947

Standard transmission capacity 　W　(Multiplied by the 2.84 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	10	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	9.55	11.46	13.37	14.32	15.28	17.19	19.10	21.01	22.92	23.87	24.83	26.74	28.65	30.56	34.38	38.20	45.84	47.75	57.30
20	2.84	2.84	2.84	5.68	5.68	5.68	5.68	8.52	8.52	8.52	8.52	11.3	11.3	11.3	14.2	17.0	19.8	22.7	28.4
40	5.68	5.68	8.52	8.52	8.52	11.3	11.3	14.2	14.2	17.0	17.0	17.0	19.8	22.7	25.5	28.4	39.7	39.7	53.9
60	8.52	8.52	11.3	11.3	14.2	14.2	17.0	19.8	22.7	22.7	22.7	25.5	28.4	31.2	36.9	42.6	53.9	56.8	76.6
100	11.3	14.2	17.0	19.8	19.8	22.7	25.5	28.4	34.0	34.0	36.9	39.7	45.4	48.2	56.8	65.3	85.2	90.8	116
200	19.8	25.5	31.2	34.0	36.9	42.6	48.2	53.9	59.6	62.4	65.3	73.8	79.5	88.0	102	116	150	161	207
400	36.9	45.4	53.9	59.6	65.3	73.8	85.2	93.7	105	110	116	130	142	153	178	207	266	284	369
600	51.1	62.4	76.6	82.3	88.0	102	116	130	147	156	161	178	195	213	249	289	372	391	511
800	62.4	79.5	93.7	102	110	127	147	164	184	195	204	227	247	269	315	363	465	494	639
1000	73.8	93.7	113	122	133	153	176	198	221	232	244	269	295	320	374	431	553	587	761
1200	85.2	107	130	142	153	176	201	227	255	266	281	309	340	369	431	497	639	675	871
1400	96.5	119	144	159	173	198	227	255	286	301	318	349	383	414	485	559	715	758	979
1450	99.4	124	150	164	176	204	232	264	295	309	326	357	391	426	499	573	735	778	1005
1500	105	127	144	167	181	210	241	269	301	318	335	369	403	437	511	587	755	798	1030
1600	116	133	161	176	190	221	252	284	318	335	352	386	423	460	536	619	792	837	1082
1750	124	142	173	187	204	235	269	303	340	357	377	414	451	491	573	661	846	894	1155
1800		144	176	193	207	241	275	309	346	366	383	423	462	502	587	675	863	914	1178
2000		156	190	207	224	261	298	335	374	394	414	457	499	542	633	729	934	988	1272
2400		178	218	238	258	298	340	383	428	451	477	522	570	621	724	832	1065	1124	1448
3000			255	278	301	352	400	451	505	531	559	613	670	729	852	976	1246	1317	1692
3600			289	315	343	397	457	514	573	604	636	698	763	829	965	1110	1414	1493	1914
4000			312	340	369	428	491	553	619	650	684	752	820	891	1039	1192	1516	1601	2053
5000			360	394	428	499	570	644	718	758	795	874	954	1036	1207	1383	1755	1851	2365
6000				443	482	562	641	724	809	852	897	985	1073	1167	1354	1553	1968	2076	2644
8000					576	670	769	869	968	1022	1073	1178	1283	1394	1615	1848	2331	2459	3115
10000						763	874	988	1104	1164	1221	1340	1462	1584	1837	2095	2632	2771	3498
12000						843	968	1093	1221	1286	1349	1482	1613	1749	2022	2303	2882	3033	3808
14000							1047	1184	1320	1391	1459	1601	1743	1888	2181	2476	3092	3248	4058

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Standard Transmission Torque 　N・m　(Multiplied by the 2.84 coefficient of width)

Small belt sprocket rotation speed r/min	Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter 　mm
	10	12	14	15	16	18	20	22	24	25	26	28	30	32	36	40	48	50	60
	9.55	11.46	13.37	14.32	15.28	17.19	19.10	21.01	22.92	23.87	24.83	26.74	28.65	30.56	34.38	38.20	45.84	47.75	57.30
20	1.36	1.70	2.01	2.18	2.35	2.72	3.09	3.49	3.89	4.11	4.31	4.77	5.22	5.68	6.67	7.72	10.0	10.6	13.9
40	1.24	1.53	1.84	2.01	2.15	2.49	2.84	3.20	3.57	3.77	3.97	4.37	4.79	5.22	6.13	7.10	9.17	9.74	12.7
60	1.19	1.47	1.76	1.90	2.04	2.38	2.69	3.03	3.40	3.57	3.77	4.14	4.54	4.94	5.79	6.70	8.69	9.20	12.0
100	1.10	1.36	1.61	1.76	1.90	2.21	2.52	2.84	3.15	3.32	3.52	3.86	4.23	4.60	5.39	6.24	8.06	8.54	11.1
200	0.99	1.22	1.47	1.59	1.73	1.98	2.27	2.55	2.84	3.01	3.15	3.46	3.80	4.14	4.85	5.59	7.24	7.66	9.91
400	0.88	1.07	1.30	1.42	1.53	1.76	2.01	2.27	2.52	2.66	2.81	3.09	3.37	3.66	4.28	4.97	6.39	6.78	8.80
600	0.79	0.99	1.19	1.30	1.42	1.64	1.87	2.10	2.35	2.47	2.58	2.86	3.12	3.40	3.97	4.60	5.90	6.24	8.12
800	0.73	0.93	1.13	1.22	1.33	1.53	1.76	1.98	2.21	2.32	2.44	2.69	2.95	3.20	3.74	4.31	5.56	5.87	7.63
1000	0.71	0.88	1.07	1.16	1.27	1.47	1.67	1.90	2.10	2.21	2.32	2.58	2.81	3.06	3.57	4.11	5.28	5.59	7.24
1200	0.68	0.85	1.02	1.13	1.22	1.42	1.61	1.81	2.01	2.13	2.24	2.47	2.69	2.92	3.43	3.94	5.08	5.36	6.95
1400	0.68	0.82	0.99	1.07	1.16	1.36	1.56	1.76	1.95	2.07	2.15	2.38	2.61	2.84	3.32	3.80	4.88	5.16	6.67
1450	0.68	0.82	0.99	1.07	1.16	1.36	1.53	1.73	1.93	2.04	2.15	2.35	2.58	2.81	3.29	3.77	4.85	5.11	6.61
1500	0.68	0.79	0.96	1.07	1.16	1.33	1.53	1.73	1.93	2.01	2.13	2.35	2.55	2.78	3.26	3.74	4.79	5.08	6.56
1600	0.68	0.79	0.96	1.05	1.13	1.30	1.50	1.70	1.90	1.98	2.10	2.30	2.52	2.75	3.20	3.69	4.71	4.99	6.44
1750	0.68	0.76	0.93	1.02	1.10	1.27	1.47	1.64	1.84	1.95	2.04	2.24	2.47	2.69	3.12	3.60	4.62	4.88	6.30
1800		0.76	0.93	1.02	1.10	1.27	1.44	1.64	1.84	1.93	2.04	2.24	2.44	2.66	3.12	3.57	4.57	4.85	6.24
2000		0.73	0.90	0.99	1.07	1.24	1.42	1.61	1.78	1.87	1.98	2.18	2.38	2.58	3.03	3.49	4.45	4.71	6.07
2400		0.71	0.85	0.93	1.02	1.19	1.36	1.53	1.70	1.78	1.90	2.07	2.27	2.47	2.89	3.32	4.23	4.48	5.76
3000			0.82	0.88	0.96	1.10	1.27	1.44	1.61	1.70	1.78	1.95	2.13	2.32	2.69	3.09	3.97	4.20	5.39
3600			0.76	0.85	0.90	1.05	1.22	1.36	1.53	1.59	1.67	1.84	2.01	2.18	2.55	2.95	3.74	3.94	5.08
4000			0.73	0.82	0.88	1.02	1.16	1.30	1.47	1.56	1.61	1.78	1.95	2.13	2.47	2.84	3.60	3.83	4.88
5000			0.68	0.76	0.82	0.96	1.07	1.22	1.36	1.44	1.50	1.67	1.81	1.98	2.30	2.64	3.35	3.55	4.51
6000				0.71	0.76	0.88	1.02	1.16	1.27	1.36	1.42	1.56	1.70	1.84	2.15	2.47	3.12	3.29	4.20
8000					0.68	0.79	0.90	1.02	1.16	1.22	1.27	1.39	1.53	1.67	1.93	2.21	2.78	2.92	3.72
10000						0.73	0.82	0.93	1.05	1.10	1.16	1.27	1.39	1.50	1.76	1.98	2.52	2.64	3.35
12000						0.68	0.76	0.88	0.96	1.02	1.07	1.16	1.27	1.39	1.61	1.81	2.30	2.41	3.03
14000							0.71	0.79	0.90	0.93	0.99	1.07	1.19	1.27	1.47	1.67	2.10	2.21	2.75

・Avoid using in the gray highlighted range as the belt will have a shorter service life.

Available for the following belt sprocket types

Type		Material	Base Model No.	Tooth no. range
DF		Carbon steel	P3M15DF	10T～20T
AF/A BF/B		Carbon steel	P3M15BF P3M15B	21T～32T
		Aluminum	P3M15BF-A P3M15B-A	21T～112T
Cylindrical		Aluminum	P3M-100L-A	10T～60T
Lock Belt Sprockets C Type		Aluminum	P3M15BF-A-C□□	22T～60T
