PX Belt Shinayaka 530 type Major Specifications
Model No. :P2M4-530
Model No. examples
BG | 200 | P | 2M | 10 | -530 |
| Synchronous belt |
| Belt length mm |
| P:PX |
| Types (Pitch ) |
| Belt width mm |
| SHINAYAKA 530 Type |

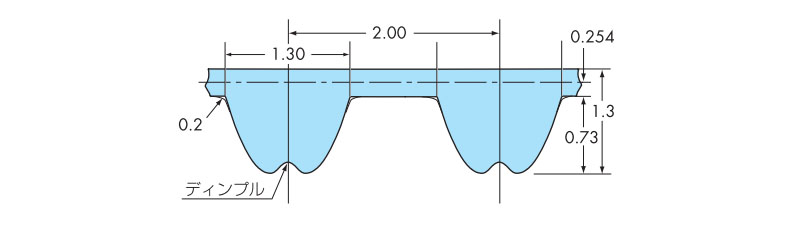

Major Specifications
Belt width | Unit mass kg/m |
Initial tension N {kgf} | |
---|---|---|---|
Recommended value | Maximum value | ||
4 | 0.006 | 5.9 {0.6} | 7.8 {0.8} |
Material | Rubber | Chloroprene rubber |
---|---|---|
Tooth fabric | Nylon woven fabric (Low wear debris type) | |
Cord | Fiberglass | |
Ambient conditions | Available for the following belt sprocket types | PX Belt Sprocket P2M |
Oil and water resistant | No (cannot be used) | |
Operating Ambient Temperature | -15℃~80℃ | |
RoHS compliant | Compliant | |
Electroconductive | None |
Belt length
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG80P2M4-530 | 80 | 40 | Contact us for details. | Contact us for details. | |
BG84P2M4-530 | 84 | 42 | Contact us for details. | Contact us for details. | |
BG88P2M4-530 | 88 | 44 | Contact us for details. | Contact us for details. | |
BG98P2M4-530 | 98 | 49 | Contact us for details. | Contact us for details. | |
BG100P2M4-530 | 100 | 50 | Contact us for details. | Contact us for details. | |
BG112P2M4-530 | 112 | 56 | Contact us for details. | Contact us for details. | |
BG116P2M4-530 | 116 | 58 | Contact us for details. | Contact us for details. | |
BG118P2M4-530 | 118 | 59 | Contact us for details. | Contact us for details. | |
BG124P2M4-530 | 124 | 62 | Contact us for details. | Contact us for details. | |
BG126P2M4-530 | 126 | 63 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG132P2M4-530 | 132 | 66 | Contact us for details. | Contact us for details. | |
BG134P2M4-530 | 134 | 67 | Contact us for details. | Contact us for details. | |
BG136P2M4-530 | 136 | 68 | Contact us for details. | Contact us for details. | |
BG140P2M4-530 | 140 | 70 | Contact us for details. | Contact us for details. | |
BG142P2M4-530 | 142 | 71 | Contact us for details. | Contact us for details. | |
BG144P2M4-530 | 144 | 72 | Contact us for details. | Contact us for details. | |
BG146P2M4-530 | 146 | 73 | Contact us for details. | Contact us for details. | |
BG152P2M4-530 | 152 | 76 | Contact us for details. | Contact us for details. | |
BG154P2M4-530 | 154 | 77 | Contact us for details. | Contact us for details. | |
BG160P2M4-530 | 160 | 80 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG162P2M4-530 | 162 | 81 | Contact us for details. | Contact us for details. | |
BG164P2M4-530 | 164 | 82 | Contact us for details. | Contact us for details. | |
BG166P2M4-530 | 166 | 83 | Contact us for details. | Contact us for details. | |
BG168P2M4-530 | 168 | 84 | Contact us for details. | Contact us for details. | |
BG170P2M4-530 | 170 | 85 | Contact us for details. | Contact us for details. | |
BG172P2M4-530 | 172 | 86 | Contact us for details. | Contact us for details. | |
BG176P2M4-530 | 176 | 88 | Contact us for details. | Contact us for details. | |
BG180P2M4-530 | 180 | 90 | Contact us for details. | Contact us for details. | |
BG186P2M4-530 | 186 | 93 | Contact us for details. | Contact us for details. | |
BG190P2M4-530 | 190 | 95 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG196P2M4-530 | 196 | 98 | Contact us for details. | Contact us for details. | |
BG200P2M4-530 | 200 | 100 | Contact us for details. | Contact us for details. | |
BG204P2M4-530 | 204 | 102 | Contact us for details. | Contact us for details. | |
BG208P2M4-530 | 208 | 104 | Contact us for details. | Contact us for details. | |
BG212P2M4-530 | 212 | 106 | Contact us for details. | Contact us for details. | |
BG214P2M4-530 | 214 | 107 | Contact us for details. | Contact us for details. | |
BG216P2M4-530 | 216 | 108 | Contact us for details. | Contact us for details. | |
BG220P2M4-530 | 220 | 110 | Contact us for details. | Contact us for details. | |
BG224P2M4-530 | 224 | 112 | Contact us for details. | Contact us for details. | |
BG230P2M4-530 | 230 | 115 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG234P2M4-530 | 234 | 117 | Contact us for details. | Contact us for details. | |
BG236P2M4-530 | 236 | 118 | Contact us for details. | Contact us for details. | |
BG240P2M4-530 | 240 | 120 | Contact us for details. | Contact us for details. | |
BG244P2M4-530 | 244 | 122 | Contact us for details. | Contact us for details. | |
BG246P2M4-530 | 246 | 123 | Contact us for details. | Contact us for details. | |
BG250P2M4-530 | 250 | 125 | Contact us for details. | Contact us for details. | |
BG258P2M4-530 | 258 | 129 | Contact us for details. | Contact us for details. | |
BG262P2M4-530 | 262 | 131 | Contact us for details. | Contact us for details. | |
BG266P2M4-530 | 266 | 133 | Contact us for details. | Contact us for details. | |
BG270P2M4-530 | 270 | 135 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG274P2M4-530 | 274 | 137 | Contact us for details. | Contact us for details. | |
BG280P2M4-530 | 280 | 140 | Contact us for details. | Contact us for details. | |
BG284P2M4-530 | 284 | 142 | Contact us for details. | Contact us for details. | |
BG290P2M4-530 | 290 | 145 | Contact us for details. | Contact us for details. | |
BG296P2M4-530 | 296 | 148 | Contact us for details. | Contact us for details. | |
BG298P2M4-530 | 298 | 149 | Contact us for details. | Contact us for details. | |
BG300P2M4-530 | 300 | 150 | Contact us for details. | Contact us for details. | |
BG302P2M4-530 | 302 | 151 | Contact us for details. | Contact us for details. | |
BG310P2M4-530 | 310 | 155 | Contact us for details. | Contact us for details. | |
BG318P2M4-530 | 318 | 159 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG320P2M4-530 | 320 | 160 | Contact us for details. | Contact us for details. | |
BG324P2M4-530 | 324 | 162 | Contact us for details. | Contact us for details. | |
BG328P2M4-530 | 328 | 164 | Contact us for details. | Contact us for details. | |
BG330P2M4-530 | 330 | 165 | Contact us for details. | Contact us for details. | |
BG334P2M4-530 | 334 | 167 | Contact us for details. | Contact us for details. | |
BG340P2M4-530 | 340 | 170 | Contact us for details. | Contact us for details. | |
BG348P2M4-530 | 348 | 174 | Contact us for details. | Contact us for details. | |
BG354P2M4-530 | 354 | 177 | Contact us for details. | Contact us for details. | |
BG360P2M4-530 | 360 | 180 | Contact us for details. | Contact us for details. | |
BG370P2M4-530 | 370 | 185 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG378P2M4-530 | 378 | 189 | Contact us for details. | Contact us for details. | |
BG380P2M4-530 | 380 | 190 | Contact us for details. | Contact us for details. | |
BG390P2M4-530 | 390 | 195 | Contact us for details. | Contact us for details. | |
BG400P2M4-530 | 400 | 200 | Contact us for details. | Contact us for details. | |
BG408P2M4-530 | 408 | 204 | Contact us for details. | Contact us for details. | |
BG416P2M4-530 | 416 | 208 | Contact us for details. | Contact us for details. | |
BG420P2M4-530 | 420 | 210 | Contact us for details. | Contact us for details. | |
BG424P2M4-530 | 424 | 212 | Contact us for details. | Contact us for details. | |
BG426P2M4-530 | 426 | 213 | Contact us for details. | Contact us for details. | |
BG434P2M4-530 | 434 | 217 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG440P2M4-530 | 440 | 220 | Contact us for details. | Contact us for details. | |
BG448P2M4-530 | 448 | 224 | Contact us for details. | Contact us for details. | |
BG464P2M4-530 | 464 | 232 | Contact us for details. | Contact us for details. | |
BG488P2M4-530 | 488 | 244 | Contact us for details. | Contact us for details. | |
BG490P2M4-530 | 490 | 245 | Contact us for details. | Contact us for details. | |
BG500P2M4-530 | 500 | 250 | Contact us for details. | Contact us for details. | |
BG516P2M4-530 | 516 | 258 | Contact us for details. | Contact us for details. | |
BG520P2M4-530 | 520 | 260 | Contact us for details. | Contact us for details. | |
BG530P2M4-530 | 530 | 265 | Contact us for details. | Contact us for details. | |
BG560P2M4-530 | 560 | 280 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG576P2M4-530 | 576 | 288 | Contact us for details. | Contact us for details. | |
BG590P2M4-530 | 590 | 295 | Contact us for details. | Contact us for details. | |
BG600P2M4-530 | 600 | 300 | Contact us for details. | Contact us for details. | |
BG630P2M4-530 | 630 | 315 | Contact us for details. | Contact us for details. | |
BG638P2M4-530 | 638 | 319 | Contact us for details. | Contact us for details. | |
BG656P2M4-530 | 656 | 328 | Contact us for details. | Contact us for details. | |
BG676P2M4-530 | 676 | 338 | Contact us for details. | Contact us for details. | |
BG680P2M4-530 | 680 | 340 | Contact us for details. | Contact us for details. | |
BG704P2M4-530 | 704 | 352 | Contact us for details. | Contact us for details. | |
BG710P2M4-530 | 710 | 355 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG754P2M4-530 | 754 | 377 | Contact us for details. | Contact us for details. | |
BG764P2M4-530 | 764 | 382 | Contact us for details. | Contact us for details. | |
BG774P2M4-530 | 774 | 387 | Contact us for details. | Contact us for details. | |
BG788P2M4-530 | 788 | 394 | Contact us for details. | Contact us for details. | |
BG800P2M4-530 | 800 | 400 | Contact us for details. | Contact us for details. | |
BG808P2M4-530 | 808 | 404 | Contact us for details. | Contact us for details. | |
BG824P2M4-530 | 824 | 412 | Contact us for details. | Contact us for details. | |
BG846P2M4-530 | 846 | 423 | Contact us for details. | Contact us for details. | |
BG866P2M4-530 | 866 | 433 | Contact us for details. | Contact us for details. | |
BG898P2M4-530 | 898 | 449 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG900P2M4-530 | 900 | 450 | Contact us for details. | Contact us for details. | |
BG940P2M4-530 | 940 | 470 | Contact us for details. | Contact us for details. | |
BG956P2M4-530 | 956 | 478 | Contact us for details. | Contact us for details. | |
BG992P2M4-530 | 992 | 496 | Contact us for details. | Contact us for details. | |
BG1040P2M4-530 | 1040 | 520 | Contact us for details. | Contact us for details. | |
BG1110P2M4-530 | 1110 | 555 | Contact us for details. | Contact us for details. | |
BG1150P2M4-530 | 1150 | 575 | Contact us for details. | Contact us for details. | |
BG1158P2M4-530 | 1158 | 579 | Contact us for details. | Contact us for details. | |
BG1182P2M4-530 | 1182 | 591 | Contact us for details. | Contact us for details. | |
BG1192P2M4-530 | 1192 | 596 | Contact us for details. | Contact us for details. |
Model No. | Circumference mm | Number of teeth | Standard Price | Delivery | PDF drawing |
---|---|---|---|---|---|
BG1242P2M4-530 | 1242 | 621 | Contact us for details. | Contact us for details. | |
BG1410P2M4-530 | 1410 | 705 | Contact us for details. | Contact us for details. | |
BG1526P2M4-530 | 1526 | 763 | Contact us for details. | Contact us for details. | |
BG1700P2M4-530 | 1700 | 850 | Contact us for details. | Contact us for details. | |
BG1820P2M4-530 | 1820 | 910 | Contact us for details. | Contact us for details. |
Standard transmission capacity W
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14 | 15 | 16 | 18 | 20 | 22 | 24 | 25 | 26 | 28 | 30 | 32 | 34 | 36 | 40 | 42 | 44 | 48 | 50 | 60 | |
8.91 | 9.55 | 10.19 | 11.46 | 12.73 | 14.01 | 15.28 | 15.92 | 16.55 | 17.83 | 19.10 | 20.37 | 21.65 | 22.92 | 25.46 | 26.74 | 28.01 | 30.56 | 31.83 | 38.20 | |
20 | 0.50 | 0.50 | 0.50 | 0.60 | 0.70 | 0.80 | 0.80 | 0.90 | 0.90 | 1.00 | 1.10 | 1.20 | 1.40 | 1.50 | 1.70 | 1.90 | 2.00 | 2.30 | 2.50 | 3.30 |
40 | 0.80 | 0.90 | 1.00 | 1.10 | 1.20 | 1.40 | 1.50 | 1.60 | 1.70 | 1.90 | 2.10 | 2.30 | 2.50 | 2.70 | 3.20 | 3.40 | 3.70 | 4.20 | 4.50 | 6.00 |
60 | 1.20 | 1.30 | 1.40 | 1.60 | 1.80 | 2.00 | 2.20 | 2.30 | 2.40 | 2.70 | 3.00 | 3.20 | 3.50 | 3.80 | 4.50 | 4.80 | 5.20 | 5.90 | 6.30 | 8.50 |
100 | 1.80 | 2.00 | 2.10 | 2.40 | 2.70 | 3.10 | 3.40 | 3.60 | 3.80 | 4.20 | 4.60 | 5.00 | 5.50 | 5.90 | 6.90 | 7.40 | 8.00 | 9.10 | 9.70 | 12.9 |
200 | 3.30 | 3.60 | 3.80 | 4.40 | 5.00 | 5.60 | 6.20 | 6.50 | 6.90 | 7.60 | 8.30 | 9.00 | 9.80 | 10.6 | 12.3 | 13.2 | 14.2 | 16.1 | 17.2 | 22.7 |
400 | 5.90 | 6.40 | 6.90 | 7.90 | 8.90 | 10.0 | 11.1 | 11.7 | 12.3 | 13.5 | 14.7 | 16.0 | 17.4 | 18.8 | 21.7 | 23.3 | 24.8 | 28.2 | 29.9 | 39.2 |
600 | 8.30 | 8.90 | 9.60 | 11.0 | 12.4 | 13.9 | 15.5 | 16.3 | 17.1 | 18.8 | 20.5 | 22.3 | 24.1 | 26.0 | 30.0 | 32.1 | 34.2 | 38.6 | 40.9 | 53.3 |
800 | 10.4 | 11.3 | 12.1 | 13.9 | 15.7 | 17.6 | 19.6 | 20.6 | 21.6 | 23.7 | 25.8 | 28.0 | 30.3 | 32.6 | 37.5 | 40.1 | 42.7 | 48.1 | 50.9 | 65.8 |
1000 | 12.5 | 13.5 | 14.5 | 16.6 | 18.8 | 21.1 | 23.4 | 24.6 | 25.8 | 28.3 | 30.8 | 33.4 | 36.1 | 38.8 | 44.5 | 47.5 | 50.5 | 56.8 | 60.0 | 77.2 |
1200 | 14.4 | 15.6 | 16.8 | 19.3 | 21.8 | 24.4 | 27.1 | 28.4 | 29.8 | 32.6 | 35.5 | 38.5 | 41.5 | 44.6 | 51.1 | 54.4 | 57.8 | 64.9 | 68.5 | 87.7 |
1400 | 16.3 | 17.6 | 19.0 | 21.8 | 24.6 | 27.5 | 30.5 | 32.1 | 33.0 | 36.8 | 40.0 | 43.3 | 46.7 | 50.2 | 57.3 | 61.0 | 64.7 | 72.5 | 76.5 | 97.5 |
1450 | 16.7 | 18.1 | 19.5 | 22.4 | 25.3 | 28.3 | 31.4 | 33.0 | 33.6 | 37.8 | 41.1 | 44.5 | 48.0 | 51.5 | 58.8 | 62.6 | 66.4 | 74.3 | 78.4 | 99.8 |
1500 | 17.2 | 18.6 | 20.0 | 23.0 | 26.0 | 29.1 | 32.2 | 33.9 | 34.6 | 38.8 | 42.2 | 45.7 | 49.2 | 52.8 | 60.3 | 64.1 | 68.1 | 76.1 | 80.3 | 102 |
1600 | 18.1 | 19.6 | 21.1 | 24.2 | 27.3 | 30.6 | 33.9 | 35.6 | 35.5 | 40.8 | 44.3 | 48.0 | 51.7 | 55.4 | 63.2 | 67.2 | 71.3 | 79.7 | 84.0 | 106 |
1750 | 19.3 | 21.0 | 22.6 | 25.9 | 29.3 | 32.8 | 36.4 | 38.2 | 37.3 | 43.8 | 47.5 | 51.3 | 55.2 | 59.2 | 67.5 | 71.7 | 76.0 | 84.8 | 89.3 | 113 |
1800 | 19.8 | 21.4 | 23.1 | 26.5 | 30.0 | 33.5 | 37.2 | 39.0 | 40.9 | 44.6 | 48.5 | 52.4 | 56.4 | 60.5 | 68.8 | 73.1 | 77.5 | 86.5 | 91.1 | 115 |
2000 | 21.4 | 23.2 | 25.0 | 28.7 | 32.5 | 36.4 | 40.3 | 42.3 | 44.3 | 48.3 | 52.5 | 56.7 | 61.0 | 65.3 | 74.2 | 78.8 | 83.4 | 92.9 | 97.8 | 123 |
2400 | 24.6 | 26.7 | 28.8 | 33.1 | 37.4 | 41.8 | 46.3 | 48.6 | 50.8 | 55.4 | 60.1 | 64.8 | 69.6 | 74.5 | 84.4 | 89.5 | 94.6 | 105 | 110 | 137 |
3000 | 31.5 | 34.1 | 39.1 | 44.3 | 49.5 | 54.7 | 57.4 | 60.0 | 65.3 | 70.7 | 76.2 | 81.6 | 87.2 | 98.4 | 104 | 109 | 121 | 127 | 157 | |
3600 | 36.0 | 39.0 | 44.8 | 50.7 | 56.6 | 62.6 | 65.6 | 68.5 | 74.5 | 80.6 | 86.6 | 92.7 | 98.8 | 111 | 117 | 123 | 135 | 142 | 173 | |
4000 | 42.1 | 48.4 | 54.8 | 61.2 | 67.5 | 70.7 | 73.9 | 80.3 | 86.7 | 93.1 | 99.6 | 106 | 118 | 125 | 131 | 144 | 151 | 183 | ||
5000 | 49.4 | 56.9 | 64.4 | 71.8 | 79.2 | 82.9 | 86.5 | 93.8 | 101 | 108 | 115 | 122 | 136 | 143 | 150 | 164 | 171 | 204 | ||
6000 | 56.1 | 64.7 | 73.2 | 81.6 | 89.9 | 94.0 | 98.1 | 106 | 114 | 122 | 129 | 137 | 152 | 159 | 166 | 180 | 187 | 220 | ||
8000 | 78.7 | 89.1 | 99.2 | 109 | 113 | 118 | 128 | 137 | 145 | 154 | 162 | 178 | 186 | 193 | 207 | 213 | 242 | |||
10000 | 91.1 | 103 | 114 | 125 | 131 | 136 | 146 | 156 | 166 | 175 | 183 | 199 | 206 | 213 | 225 | 231 | 252 | |||
12000 | 115 | 128 | 140 | 146 | 152 | 163 | 173 | 183 | 192 | 200 | 215 | 222 | 228 | 238 | 242 | 254 | ||||
14000 | 126 | 140 | 154 | 160 | 166 | 177 | 188 | 198 | 207 | 215 | 228 | 234 | 239 | 246 | 248 | 257 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
Standard Transmission Torque N・m
Small belt sprocket rotation speed r/min |
Upper row: Number of teeth of small belt sprocket Lower row: Pitch diameter mm | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14 | 15 | 16 | 18 | 20 | 22 | 24 | 25 | 26 | 28 | 30 | 32 | 34 | 36 | 40 | 42 | 44 | 48 | 50 | 60 | |
8.91 | 9.55 | 10.19 | 11.46 | 12.73 | 14.01 | 15.28 | 15.92 | 16.55 | 17.83 | 19.10 | 20.37 | 21.65 | 22.92 | 25.46 | 26.74 | 28.01 | 30.56 | 31.83 | 38.20 | |
20 | 0.22 | 0.23 | 0.25 | 0.28 | 0.32 | 0.36 | 0.40 | 0.42 | 0.45 | 0.49 | 0.54 | 0.59 | 0.64 | 0.70 | 0.83 | 0.89 | 0.95 | 1.10 | 1.17 | 1.58 |
40 | 0.20 | 0.21 | 0.23 | 0.26 | 0.29 | 0.33 | 0.37 | 0.39 | 0.42 | 0.45 | 0.50 | 0.54 | 0.59 | 0.64 | 0.75 | 0.81 | 0.87 | 1.00 | 1.06 | 1.43 |
60 | 0.19 | 0.20 | 0.22 | 0.25 | 0.28 | 0.31 | 0.35 | 0.37 | 0.40 | 0.43 | 0.47 | 0.51 | 0.56 | 0.61 | 0.71 | 0.77 | 0.82 | 0.94 | 1.00 | 1.34 |
100 | 0.18 | 0.19 | 0.20 | 0.23 | 0.26 | 0.29 | 0.33 | 0.34 | 0.36 | 0.40 | 0.44 | 0.48 | 0.52 | 0.57 | 0.66 | 0.71 | 0.76 | 0.87 | 0.92 | 1.23 |
200 | 0.16 | 0.17 | 0.18 | 0.21 | 0.24 | 0.27 | 0.30 | 0.31 | 0.33 | 0.36 | 0.39 | 0.43 | 0.47 | 0.51 | 0.59 | 0.63 | 0.68 | 0.77 | 0.82 | 1.08 |
400 | 0.14 | 0.15 | 0.16 | 0.19 | 0.21 | 0.24 | 0.26 | 0.28 | 0.29 | 0.32 | 0.35 | 0.38 | 0.41 | 0.45 | 0.52 | 0.56 | 0.59 | 0.67 | 0.71 | 0.93 |
600 | 0.13 | 0.14 | 0.15 | 0.17 | 0.20 | 0.22 | 0.25 | 0.26 | 0.27 | 0.30 | 0.33 | 0.35 | 0.38 | 0.41 | 0.48 | 0.51 | 0.54 | 0.61 | 0.65 | 0.85 |
800 | 0.12 | 0.13 | 0.14 | 0.17 | 0.19 | 0.21 | 0.23 | 0.25 | 0.26 | 0.28 | 0.31 | 0.33 | 0.36 | 0.39 | 0.45 | 0.48 | 0.51 | 0.57 | 0.61 | 0.79 |
1000 | 0.12 | 0.13 | 0.14 | 0.16 | 0.18 | 0.20 | 0.22 | 0.23 | 0.25 | 0.27 | 0.29 | 0.32 | 0.34 | 0.37 | 0.42 | 0.45 | 0.48 | 0.54 | 0.57 | 0.74 |
1200 | 0.11 | 0.12 | 0.13 | 0.15 | 0.17 | 0.19 | 0.22 | 0.23 | 0.24 | 0.26 | 0.28 | 0.31 | 0.33 | 0.36 | 0.41 | 0.43 | 0.46 | 0.52 | 0.54 | 0.70 |
1400 | 0.11 | 0.12 | 0.13 | 0.15 | 0.17 | 0.19 | 0.21 | 0.22 | 0.23 | 0.25 | 0.27 | 0.30 | 0.32 | 0.34 | 0.39 | 0.42 | 0.44 | 0.49 | 0.52 | 0.66 |
1450 | 0.11 | 0.12 | 0.13 | 0.15 | 0.17 | 0.19 | 0.21 | 0.22 | 0.22 | 0.25 | 0.27 | 0.29 | 0.32 | 0.34 | 0.39 | 0.41 | 0.44 | 0.49 | 0.52 | 0.66 |
1500 | 0.11 | 0.12 | 0.13 | 0.15 | 0.17 | 0.18 | 0.21 | 0.22 | 0.22 | 0.25 | 0.27 | 0.29 | 0.31 | 0.34 | 0.38 | 0.41 | 0.43 | 0.48 | 0.51 | 0.65 |
1600 | 0.11 | 0.12 | 0.13 | 0.14 | 0.16 | 0.18 | 0.20 | 0.21 | 0.22 | 0.24 | 0.26 | 0.29 | 0.31 | 0.33 | 0.38 | 0.40 | 0.43 | 0.48 | 0.50 | 0.64 |
1750 | 0.11 | 0.11 | 0.12 | 0.14 | 0.16 | 0.18 | 0.20 | 0.21 | 0.21 | 0.24 | 0.26 | 0.28 | 0.30 | 0.32 | 0.37 | 0.39 | 0.41 | 0.46 | 0.49 | 0.62 |
1800 | 0.10 | 0.11 | 0.12 | 0.14 | 0.16 | 0.18 | 0.20 | 0.21 | 0.21 | 0.24 | 0.26 | 0.28 | 0.30 | 0.32 | 0.36 | 0.39 | 0.41 | 0.46 | 0.48 | 0.61 |
2000 | 0.10 | 0.11 | 0.12 | 0.14 | 0.16 | 0.17 | 0.19 | 0.20 | 0.21 | 0.23 | 0.25 | 0.27 | 0.29 | 0.31 | 0.35 | 0.38 | 0.40 | 0.44 | 0.47 | 0.59 |
2400 | 0.10 | 0.11 | 0.11 | 0.13 | 0.15 | 0.17 | 0.18 | 0.19 | 0.20 | 0.22 | 0.24 | 0.26 | 0.28 | 0.30 | 0.34 | 0.36 | 0.38 | 0.42 | 0.44 | 0.55 |
3000 | 0.10 | 0.11 | 0.12 | 0.14 | 0.16 | 0.17 | 0.18 | 0.19 | 0.21 | 0.23 | 0.24 | 0.26 | 0.28 | 0.31 | 0.33 | 0.35 | 0.39 | 0.40 | 0.50 | |
3600 | 0.10 | 0.10 | 0.12 | 0.13 | 0.15 | 0.17 | 0.17 | 0.18 | 0.20 | 0.21 | 0.23 | 0.25 | 0.26 | 0.29 | 0.31 | 0.33 | 0.36 | 0.38 | 0.46 | |
4000 | 0.09 | 0.10 | 0.12 | 0.13 | 0.15 | 0.16 | 0.17 | 0.18 | 0.19 | 0.21 | 0.22 | 0.24 | 0.25 | 0.28 | 0.30 | 0.31 | 0.35 | 0.36 | 0.44 | |
5000 | 0.09 | 0.11 | 0.12 | 0.14 | 0.15 | 0.16 | 0.17 | 0.18 | 0.19 | 0.21 | 0.22 | 0.23 | 0.26 | 0.27 | 0.29 | 0.31 | 0.33 | 0.39 | ||
6000 | 0.09 | 0.10 | 0.12 | 0.13 | 0.14 | 0.15 | 0.16 | 0.17 | 0.18 | 0.19 | 0.21 | 0.22 | 0.24 | 0.25 | 0.27 | 0.29 | 0.30 | 0.35 | ||
8000 | 0.09 | 0.11 | 0.12 | 0.13 | 0.14 | 0.14 | 0.15 | 0.16 | 0.17 | 0.18 | 0.19 | 0.21 | 0.22 | 0.23 | 0.25 | 0.25 | 0.29 | |||
10000 | 0.09 | 0.10 | 0.11 | 0.12 | 0.13 | 0.13 | 0.14 | 0.15 | 0.16 | 0.17 | 0.18 | 0.19 | 0.20 | 0.20 | 0.22 | 0.22 | 0.24 | |||
12000 | 0.09 | 0.10 | 0.11 | 0.12 | 0.12 | 0.13 | 0.14 | 0.15 | 0.15 | 0.16 | 0.17 | 0.18 | 0.18 | 0.19 | 0.19 | 0.20 | ||||
14000 | 0.09 | 0.10 | 0.10 | 0.11 | 0.11 | 0.12 | 0.13 | 0.14 | 0.14 | 0.15 | 0.16 | 0.16 | 0.16 | 0.17 | 0.18 | 0.18 |
・Avoid using in the gray highlighted range as the belt will have a shorter service life.
Available for the following belt sprocket types
Type | Material | Base Model No. | Tooth no. range | |
---|---|---|---|---|
DF | Aluminum | P2M4DF-A | 14T~27T | |
AF/A BF/B |
Aluminum | P2M4BF-A P2M4B-A |
28T~112T | |
Cylindrical | Aluminum | P2M-100L-A | 10T~60T |
Contact Information
Online Inquiries
For inquiries in English, visit the Inquiries page on our Tsubaki Group website.
