Pilot Bore Series Stainless steel type 　Major Specifications

RS80-1B□T-SS


[Click to enlarge ]

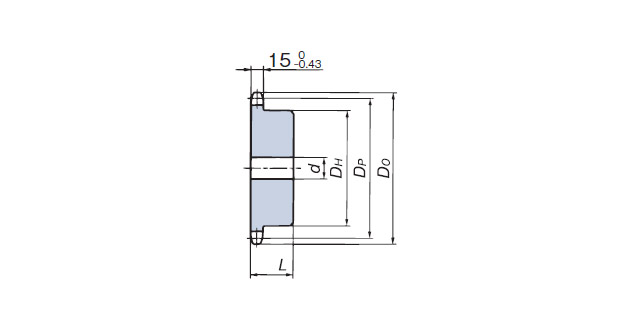

PDFOutline Drawing

See the table below

DXF drawings / 3D CAD data

See the table below

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Model No. examples

RS80 - 1 B 21T - SS
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Estimated Mass
kg 		DXF drawings
3D CAD data
PDFDrawings 		Standard Price Delivery Fit Bore (finished bores)
RS80-1B10T-SS 10 82.20 93 15.9 32 52 40 0.97 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B11T-SS 11 90.16 102 15.9 38 60 40 1.2　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B12T-SS 12 98.14 110 19 45 67 40 1.5　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B13T-SS 13 106.14 118 19 50 77 40 1.9　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B14T-SS 14 114.15 127 19 50 77 40 2.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B15T-SS 15 122.17 135 19 63 93 40 2.6　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B16T-SS 16 130.20 143 19 63 93 40 2.8　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B17T-SS 17 138.23 151 19 63 93 40 3.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B18T-SS 18 146.27 159 19 63 93 40 3.2　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B19T-SS 19 154.32 167 23 63 93 40 3.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B20T-SS 20 162.37 176 23 63 93 40 3.6　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B21T-SS 21 170.42 184 23 63 93 40 3.8　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B22T-SS 22 178.48 192 28 75 107 45 4.8　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B23T-SS 23 186.54 200 28 75 107 45 5.1　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B24T-SS 24 194.60 208 28 75 107 45 5.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS80-1B25T-SS 25 202.66 216 28 75 107 45 5.6　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
