Pilot Bore Series Stainless steel type 　Major Specifications

RS60-1B□T-SS


[Click to enlarge ]

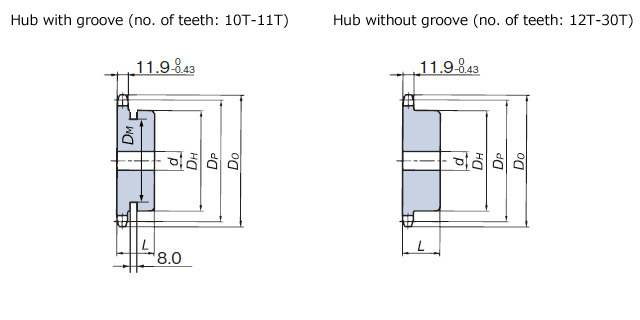

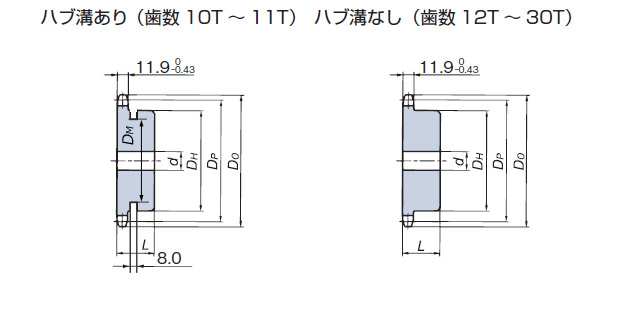

PDFOutline Drawing

See the table below

DXF drawings / 3D CAD data

See the table below

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Model No. examples

RS60 - 1 B 21T - SS
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		DXF drawings
3D CAD data
PDFDrawings 		Standard Price Delivery Fit Bore (finished bores)
RS60-1B10T-SS 10 61.65 70 12.7 30 49 32 37 0.49 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B11T-SS 11 67.62 76 12.7 32 51 32 45 0.60 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B12T-SS 12 73.6 83 12.7 32 51 32 --- 0.69 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B13T-SS 13 79.6 89 15.9 35 57 32 --- 0.81 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B14T-SS 14 85.61 95 15.9 39.5 62 32 --- 0.96 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B15T-SS 15 91.63 101 15.9 45.5 68 32 --- 1.1　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B16T-SS 16 97.65 107 15.9 47.5 73 32 --- 1.3　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B17T-SS 17 103.67 113 15.9 47.5 73 32 --- 1.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B18T-SS 18 109.70 119 15.9 55 83 40 --- 2.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B19T-SS 19 115.74 126 15.9 55 83 40 --- 2.1　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B20T-SS 20 121.78 132 15.9 55 83 40 --- 2.2　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B21T-SS 21 127.82 138 15.9 55 83 40 --- 2.3　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B22T-SS 22 133.86 144 15.9 55 83 40 --- 2.5　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B23T-SS 23 139.90 150 18 55 83 40 --- 2.5　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B24T-SS 24 145.95 156 18 55 83 40 --- 2.6　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B25T-SS 25 151.99 162 18 55 83 40 --- 2.7　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B26T-SS 26 158.04 168 18 55 83 40 --- 2.9　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B27T-SS 27 164.09 174 18 55 83 40 --- 3.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B28T-SS 28 170.14 180 18 55 83 40 --- 3.1　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS60-1B30T-SS 30 182.25 193 18 55 83 40 --- 3.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
