Pilot Bore Plastic type　Major Specifications

RS60-1B□T-P


[Click to enlarge ]

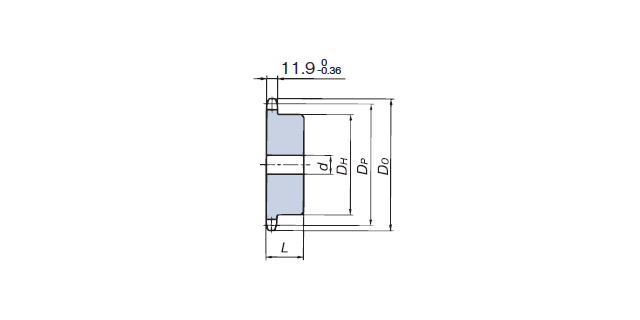

PDFOutline Drawing

See the table below

Model No. examples

RS60 - 1 B 21T - P
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Estimated Mass
kg 		PDF
drawing 		Standard Price Delivery
RS60-1B13T-P 13 79.60 88 15.9 30 57 32 0.12 PDF Contact us for details. Contact us for details.
RS60-1B14T-P 14 85.61 93 15.9 32 62 32 0.14 PDF Contact us for details. Contact us for details.
RS60-1B15T-P 15 91.62 99 15.9 35 68 32 0.16 PDF Contact us for details. Contact us for details.
RS60-1B16T-P 16 97.65 107 15.9 42 73 32 0.19 PDF Contact us for details. Contact us for details.
RS60-1B17T-P 17 103.67 113 15.9 50 80 32 0.21 PDF Contact us for details. Contact us for details.
RS60-1B18T-P 18 109.71 119 15.9 52 85 40 0.30 PDF Contact us for details. Contact us for details.
RS60-1B20T-P 20 121.78 132 15.9 60 95 40 0.38 PDF Contact us for details. Contact us for details.
RS60-1B22T-P 22 133.86 144 15.9 65 110 40 0.51 PDF Contact us for details. Contact us for details.
RS60-1B24T-P 24 145.95 156 18 70 120 40 0.57 PDF Contact us for details. Contact us for details.
RS60-1B25T-P 25 151.99 162 18 70 120 40 0.59 PDF Contact us for details. Contact us for details.
RS60-1B26T-P 26 158.04 168 18 70 120 40 0.62 PDF Contact us for details. Contact us for details.
RS60-1B28T-P 28 170.14 180 18 70 120 40 0.65 PDF Contact us for details. Contact us for details.
RS60-1B30T-P 30 182.25 193 18 70 120 40 0.70 PDF Contact us for details. Contact us for details.
