Pilot Bore Plastic type　Major Specifications

RS50-1B□T-P


[Click to enlarge ]

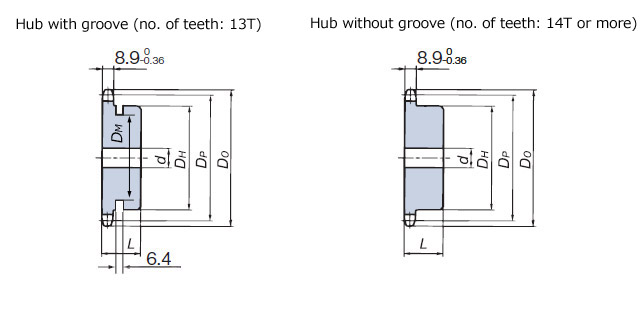

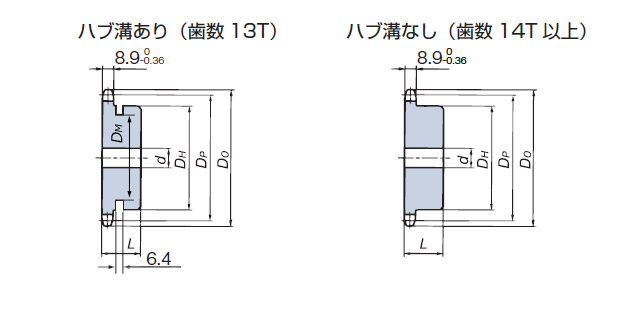

PDFOutline Drawing

See the table below

Model No. examples

RS50 - 1 B 21T - P
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		PDF
drawing 		Standard Price Delivery
RS50-1B13T-P 13 66.34 73 12.7 25 51 25 47 0.07 PDF Contact us for details. Contact us for details.
RS50-1B14T-P 14 71.34 78 12.7 28 52 25 --- 0.08 PDF Contact us for details. Contact us for details.
RS50-1B15T-P 15 76.35 83 12.7 30 57 25 --- 0.09 PDF Contact us for details. Contact us for details.
RS50-1B16T-P 16 81.37 89 12.7 32 62 25 --- 0.11 PDF Contact us for details. Contact us for details.
RS50-1B17T-P 17 86.39 93 12.7 35 67 25 --- 0.12 PDF Contact us for details. Contact us for details.
RS50-1B18T-P 18 91.42 98 12.7 40 72 28 --- 0.15 PDF Contact us for details. Contact us for details.
RS50-1B20T-P 20 101.48 110 15.9 50 80 28 --- 0.20 PDF Contact us for details. Contact us for details.
RS50-1B22T-P 22 111.55 120 15.9 55 90 28 --- 0.24 PDF Contact us for details. Contact us for details.
RS50-1B24T-P 24 121.62 130 15.9 60 100 28 --- 0.29 PDF Contact us for details. Contact us for details.
RS50-1B25T-P 25 126.66 135 15.9 60 100 28 --- 0.31 PDF Contact us for details. Contact us for details.
RS50-1B26T-P 26 131.70 140 18 65 110 28 --- 0.34 PDF Contact us for details. Contact us for details.
RS50-1B28T-P 28 141.79 150 18 70 120 28 --- 0.40 PDF Contact us for details. Contact us for details.
RS50-1B30T-P 30 151.87 161 18 70 120 28 --- 0.43 PDF Contact us for details. Contact us for details.
