Pilot Bore Series Stainless steel type 　Major Specifications

RS40-1B□T-SS


[Click to enlarge ]
PDFOutline Drawing

See the table below

DXF drawings / 3D CAD data

See the table below

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Model No. examples

RS40 - 1 B 21T - SS
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

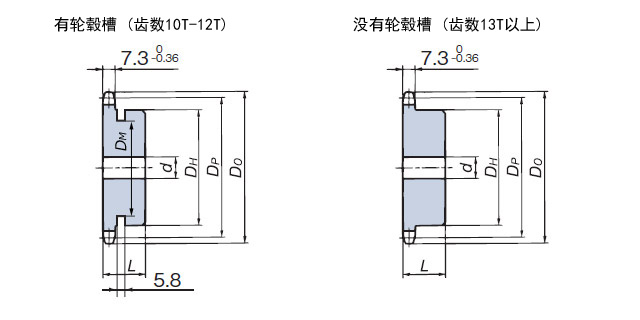

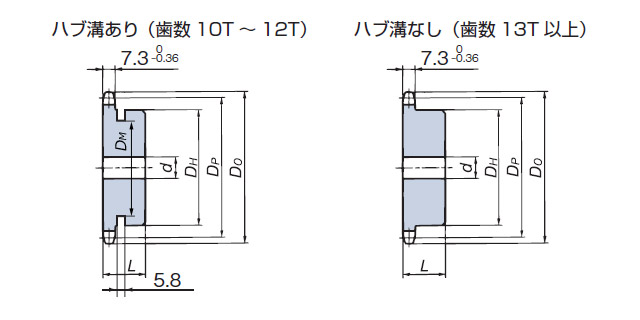

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		DXF drawings
3D CAD data
PDFDrawings 		Standard Price Delivery Fit Bore (finished bores)
RS40-1B10T-SS 10 41.10 47 9.5 16.5 32 22 25 0.14 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B11T-SS 11 45.08 51 9.5 20 37 22 30 0.19 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B12T-SS 12 49.07 55 9.5 22 40 22 32 0.22 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B13T-SS 13 53.07 59 9.5 20 37 22 --- 0.23 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B14T-SS 14 57.07 63 9.5 24 42 22 --- 0.28 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B15T-SS 15 61.08 67 9.5 28.5 46 22 --- 0.34 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B16T-SS 16 65.10 71 12.7 30 50 22 --- 0.40 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B17T-SS 17 69.12 76 12.7 32 54 22 --- 0.46 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B18T-SS 18 73.14 80 12.7 35 57 22 --- 0.51 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B19T-SS 19 77.16 84 12.7 39.5 62 22 --- 0.59 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B20T-SS 20 81.18 88 12.7 45.5 67 25 --- 0.76 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B21T-SS 21 85.21 92 12.7 45.5 71 25 --- 0.85 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B22T-SS 22 89.24 96 12.7 50 75 25 --- 0.95 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B23T-SS 23 93.27 100 12.7 50 77 25 --- 1.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B24T-SS 24 97.30 104 12.7 42 63 25 --- 0.84 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B25T-SS 25 101.33 108 12.7 42 63 25 --- 0.88 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B26T-SS 26 105.36 112 12.7 42 63 25 --- 0.92 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B27T-SS 27 109.40 116 12.7 42 63 25 --- 0.96 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B28T-SS 28 113.43 120 12.7 42 63 25 --- 1.0　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B30T-SS 30 121.50 128 12.7 42 63 25 --- 1.1　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B32T-SS 32 129.57 137 16 45 68 28 --- 1.3　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B34T-SS 34 137.64 145 16 45 68 28 --- 1.3　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B35T-SS 35 141.68 149 16 45 68 28 --- 1.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B36T-SS 36 145.72 153 16 45 68 28 --- 1.4　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B38T-SS 38 153.79 161 16 45 68 28 --- 1.5　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS40-1B40T-SS 40 161.87 169 16 45 68 28 --- 1.6　 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
