Pilot Bore Plastic type　Major Specifications

RS40-1B□T-P


[Click to enlarge ]

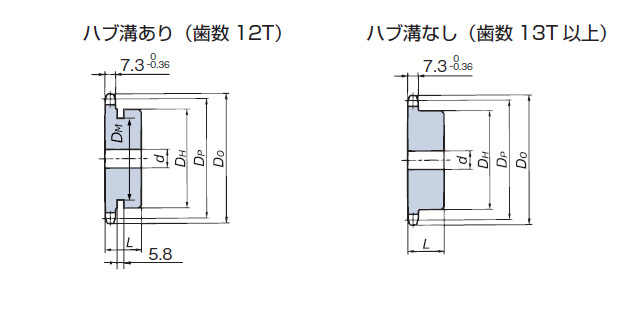

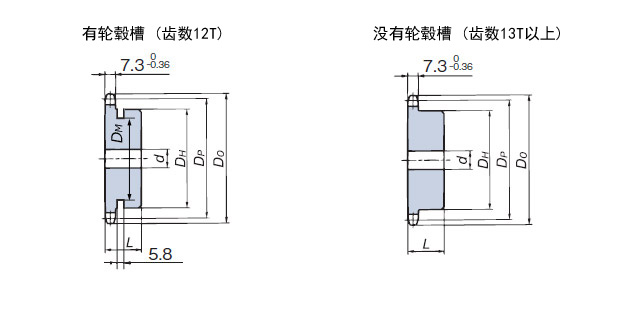

PDFOutline Drawing

See the table below

Model No. examples

RS40 - 1 B 21T - P
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		PDF
drawing 		Standard Price Delivery
RS40-1B12T-P 12 49.07 53 9.5 16 40 22 32 0.03 PDF Contact us for details. Contact us for details.
RS40-1B13T-P 13 53.07 58 12.7 18 37 22 --- 0.04 PDF Contact us for details. Contact us for details.
RS40-1B14T-P 14 57.07 63 12.7 22 42 22 --- 0.04 PDF Contact us for details. Contact us for details.
RS40-1B15T-P 15 61.08 67 12.7 25 46 22 --- 0.05 PDF Contact us for details. Contact us for details.
RS40-1B16T-P 16 65.10 71 12.7 27 50 22 --- 0.06 PDF Contact us for details. Contact us for details.
RS40-1B17T-P 17 69.12 75 12.7 28 54 22 --- 0.07 PDF Contact us for details. Contact us for details.
RS40-1B18T-P 18 73.14 78 12.7 30 57 22 --- 0.08 PDF Contact us for details. Contact us for details.
RS40-1B20T-P 20 81.18 88 12.7 35 67 25 --- 0.11 PDF Contact us for details. Contact us for details.
RS40-1B22T-P 22 89.24 96 12.7 42 75 25 --- 0.14 PDF Contact us for details. Contact us for details.
RS40-1B24T-P 24 97.30 104 12.7 50 80 25 --- 0.16 PDF Contact us for details. Contact us for details.
RS40-1B25T-P 25 101.33 108 12.7 50 80 25 --- 0.17 PDF Contact us for details. Contact us for details.
RS40-1B26T-P 26 105.36 112 12.7 52 85 25 --- 0.18 PDF Contact us for details. Contact us for details.
RS40-1B28T-P 28 113.43 120 12.7 55 90 25 --- 0.21 PDF Contact us for details. Contact us for details.
RS40-1B30T-P 30 121.50 128 12.7 60 100 25 --- 0.26 PDF Contact us for details. Contact us for details.
