Pilot Bore Series Stainless steel type 　Major Specifications

RS35-1B□T-SS


[Click to enlarge ]
PDFOutline Drawing

See the table below

DXF drawings / 3D CAD data

See the table below

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Model No. examples

RS35 - 1 B 21T - SS
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

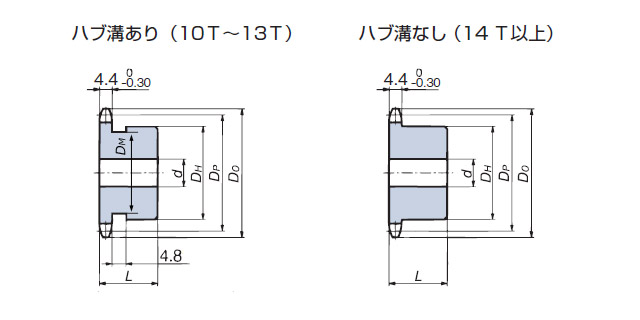

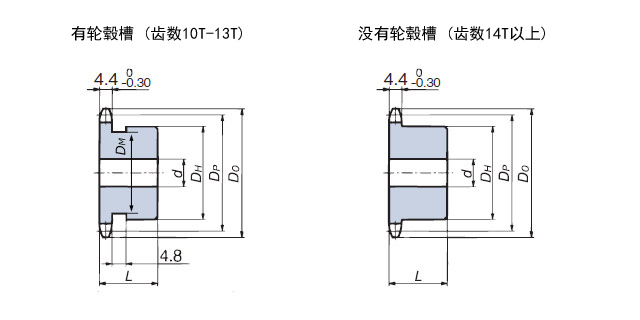

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		DXF drawings
3D CAD data
PDFDrawings 		Standard Price Delivery Fit Bore (finished bores)
RS35-1B10T-SS 10 30.82 35 8 12 25 20 18 0.08 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B11T-SS 11 33.81 38 8 14 27 20 22 0.09 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B12T-SS 12 36.8 41 8 16.5 31 20 24 0.12 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B13T-SS 13 39.8 44 9.5 18 32 20 28 0.12 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B14T-SS 14 42.8 47 9.5 16.5 30 20 --- 0.12 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B15T-SS 15 45.81 51 9.5 19 35 20 --- 0.16 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B16T-SS 16 48.82 54 9.5 20 37 20 --- 0.19 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B17T-SS 17 51.84 57 9.5 24 41 20 --- 0.22 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B18T-SS 18 54.85 60 9.5 24.5 44 20 --- 0.25 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B19T-SS 19 57.87 63 9.5 28.5 47 20 --- 0.28 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B20T-SS 20 60.89 66 9.5 30 50 20 --- 0.32 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B21T-SS 21 63.91 69 9.5 32 53 20 --- 0.36 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B22T-SS 22 66.93 72 9.5 32 53 20 --- 0.37 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B23T-SS 23 69.95 75 9.5 32 53 20 --- 0.40 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B24T-SS 24 72.97 78 9.5 32 53 22 --- 0.43 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B25T-SS 25 76 81 12.7 32 53 22 --- 0.44 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B26T-SS 26 79.02 84 12.7 32 53 22 --- 0.45 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B27T-SS 27 82.05 87 12.7 32 53 22 --- 0.46 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B28T-SS 28 85.07 90 12.7 32 53 22 --- 0.48 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B30T-SS 30 91.12 96 12.7 32 53 22 --- 0.51 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B32T-SS 32 97.18 102 12.7 32 53 22 --- 0.54 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B34T-SS 34 103.23 109 12.7 32 53 22 --- 0.57 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B35T-SS 35 106.26 112 12.7 32 53 22 --- 0.59 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B36T-SS 36 109.29 115 12.7 32 53 22 --- 0.61 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B38T-SS 38 115.34 121 13 42 63 25 --- 0.82 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
RS35-1B40T-SS 40 121.40 127 13 42 63 25 --- 0.85 DXF・3DCAD PDF Contact us for details. Contact us for details. Search Fit Bore
