Pilot Bore Plastic type　Major Specifications

RS35-1B□T-P


[Click to enlarge ]

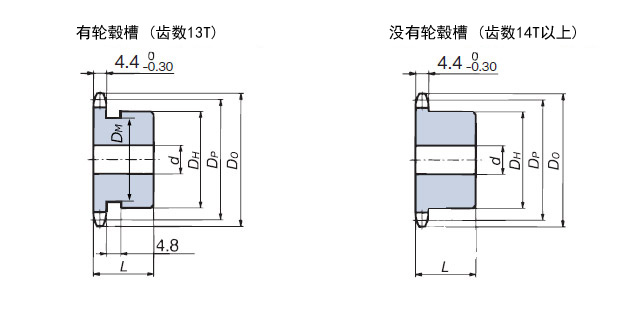

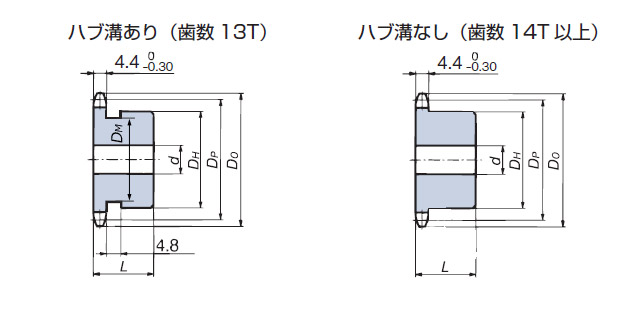

PDFOutline Drawing

See the table below

Model No. examples

RS35 - 1 B 21T - P
｜
Size 		｜
No. of
strands 		｜
Hub Type 		｜
Number of teeth 		｜
Package symbol
SS：Stainless
SST：Stainless steel type wear resistant series
P：Engineering plastic

Principal dimensions

Model No. Number of teeth Pitch circle dia.
DP
mm		 Outer Diameter
DO
mm		 Plain bore Diameter
d
mm		 Maximum Shaft Bore Diameter
d
mm		 Hub outer dia.
DH
mm		 Hub length
L
mm		 Hub
groove dia.
DM
mm		 Estimated Mass
kg 		PDF
drawing 		Standard Price Delivery
RS35-1B13T-P 13 39.80 44 9.5 14 32 20 28 0.02 PDF Contact us for details. Contact us for details.
RS35-1B14T-P 14 42.80 46 9.5 15 30 20 --- 0.02 PDF Contact us for details. Contact us for details.
RS35-1B15T-P 15 45.81 51 9.5 17 35 20 --- 0.02 PDF Contact us for details. Contact us for details.
RS35-1B16T-P 16 48.82 53 9.5 19 37 20 --- 0.03 PDF Contact us for details. Contact us for details.
RS35-1B17T-P 17 51.84 57 9.5 22 41 20 --- 0.03 PDF Contact us for details. Contact us for details.
RS35-1B18T-P 18 54.85 60 12.7 22 44 20 --- 0.04 PDF Contact us for details. Contact us for details.
RS35-1B20T-P 20 60.89 66 12.7 27 50 20 --- 0.05 PDF Contact us for details. Contact us for details.
RS35-1B22T-P 22 66.93 72 12.7 28 53 20 --- 0.06 PDF Contact us for details. Contact us for details.
RS35-1B24T-P 24 72.97 78 12.7 32 60 22 --- 0.08 PDF Contact us for details. Contact us for details.
RS35-1B25T-P 25 76.00 81 12.7 32 60 22 --- 0.08 PDF Contact us for details. Contact us for details.
RS35-1B26T-P 26 79.02 83 12.7 35 65 22 --- 0.09 PDF Contact us for details. Contact us for details.
RS35-1B28T-P 28 85.07 90 12.7 40 70 22 --- 0.10 PDF Contact us for details. Contact us for details.
RS35-1B30T-P 30 91.12 96 12.7 42 75 22 --- 0.12 PDF Contact us for details. Contact us for details.
