Major Specifications

Model No. ：ZSL1000M10K1

[Click to enlarge ]

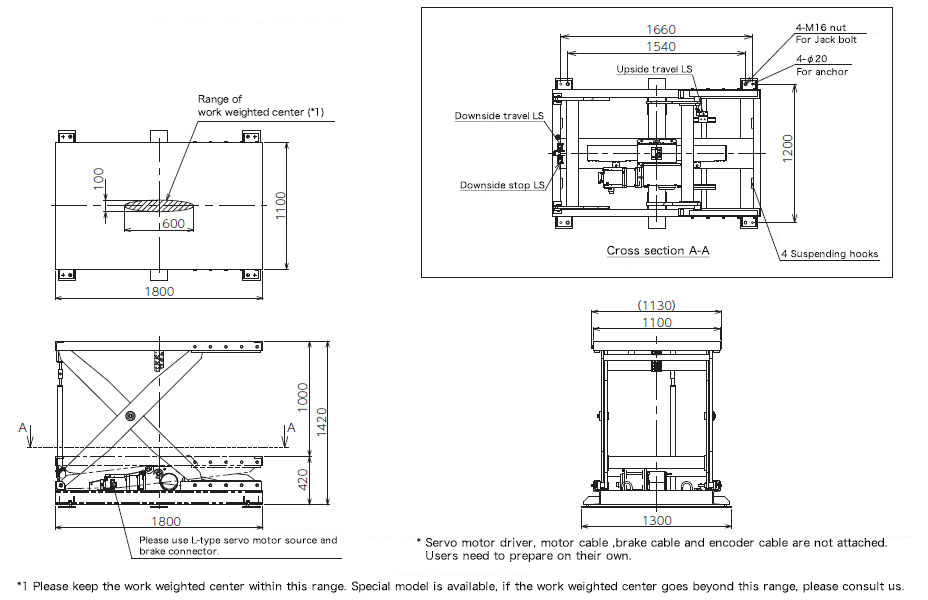

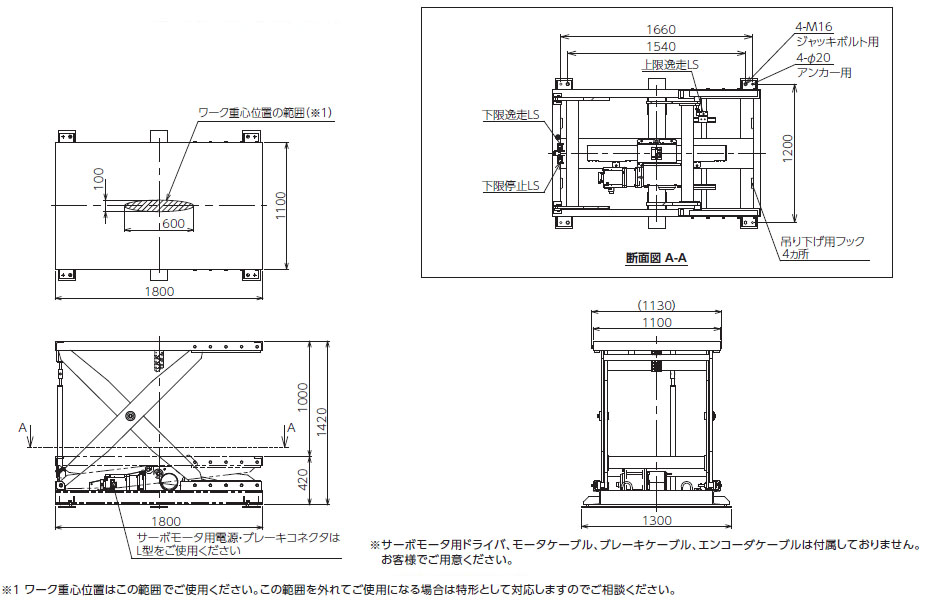

PDF Outline Drawing

Drawing number ：ZSL1000M10K1

CAD data in DXF format

ZSL1000M10K1
（Click here for a list of all DXF files )

3D CAD data

IGES format

STEP format

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Characteristics

Acceptable load mass kg	Speed m/min{mm/s} (Input speed )	Distance of motor per rotation. mm	Stroke mm	Height of contracted state mm
1000	19{317} (2500r/min)	7.62	1000	420

Table size mm	Motor Capacity kW	Estimated Mass kg	Lubrication	Paint Color
1,100×1,800	5.0	750	Chain  Grease （NO.2）	Acrylic lacquer  Gray （Munsell N5）

Operating Environment Standards

Installation	Indoors free of dust and water
Ambient Temperature	0～40℃
Ambient Humidity	85%RH(No condensation )
Altitude	No more than 1,000 m above sea level
Shock resistance	1 G max.
Atmosphere	Area must be free of corrosive and explosive gases and steam.
Mounting direction	Horizontal position

Motor Specifications

Mitsubishi Elector servo motor ( with brake)
Model No.	HG-SR502BK

Position detecting LS SPEC.

Model	WLCA2-N (OMRON) equivalent
Ratings	AC250V　10A(cosΦ＝0.4） DC5V 1mA(Minimum applicable load )
Circuit Configuration
Connector (compatible cable outer diameter.)	SCS-10B（Φ8.5～Φ10.5）PF1/2

Options sold separately

Maintenance bar

・If it's unavoidable to enter the space under the top plate when doing maintenance work, make sure to use the maintenance bar.

・Maintenance bar is attached to Series ZSL0050, but not to ZSL1000 Series.
　When purchasing ZSL 1000 Series, please also purchase the option item of maintenance bar.

・The maintenance bar is to be used with a 1,000 mm stroke. Contact a Tsubaki representative if you need to use it with other strokes.
