Major Specifications

Model No. ：ZSL0050S05G2


[Click to enlarge ]

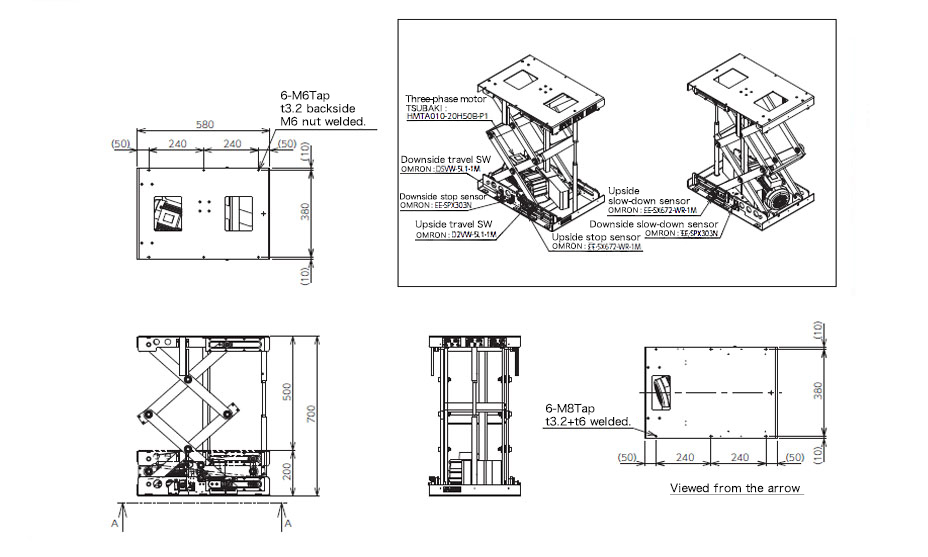

PDF Outline Drawing

Drawing number ：ZSL0050S05G2

CAD data in DXF format

ZSL0050S05G2
（Click here for a list of all DXF files )

3D CAD data

IGES format

STEP format

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Characteristics

Acceptable load mass
kg		 Speed
m/min{mm/s}
(Frequency )		 Distance of motor per rotation.
mm		 Stroke
mm		 Height of contracted state
mm
50 4.8{80}
(60Hz)		 2.86 500 200
Table size
mm		 Motor Capacity
kW		 Estimated Mass
kg		 Lubrication Paint Color
400×580 0.1 60 Chain  Grease （NO.2） Acrylic lacquer  Gray （Munsell N5）

Operating Environment Standards

Installation Indoors free of dust and water
Ambient Temperature 0～40℃
Ambient Humidity 85%RH(No condensation )
Altitude No more than 1,000 m above sea level
Shock resistance 1 G max.
Atmosphere Area must be free of corrosive and explosive gases and steam.
Mounting direction Horizontal position

Motor Specifications

Motor power source Voltage 3Φ 200/200/220V
Brake Engaged when de-energized

Position detecting sensor SPEC.

Application Upside & downside travel LS
Model D2VW-5L1-1M(OMRON)
Ratings AC250V 5A
DC5V 160mA(Minimum applicable load )
Contact Form
Application Downside slow-down sensor
Downside stop sensor
Model EE-SPX303N(OMRON)
EE-1010 2M
Supply voltage DC12～24V±10%
Ripple (p-p): 5% max
Control output NPNvoltage output (Load current: 80 mA max. )
Output configuration Dark-ON
Output circuit
Application Upside slow-down sensor
Upside stop sensor
Model EE-SX672-WR 1M(OMRON)
Supply voltage DC5～24V±10%
Ripple (p-p): 10% max
Control output NPNopen collector (Load current: 100 mA max. )
Output configuration Light-ON Dark-ON
Terminal connections Short circuited between L and + Open between L and + 　※1
Output circuit

※1.Do not connect the L terminal to 0V when using Dark-ON operation.
