Major Specifications

Model No. ：ZSL0050M05K2


[Click to enlarge ]

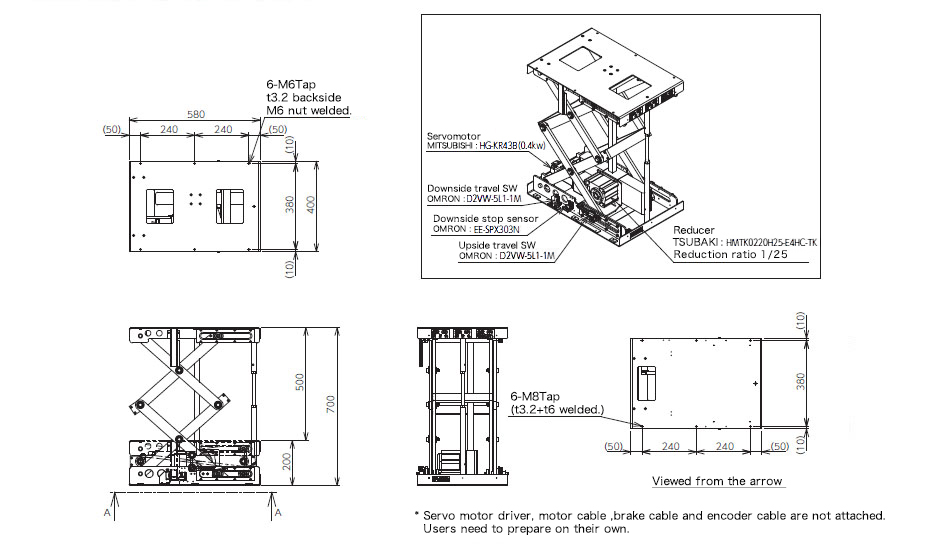

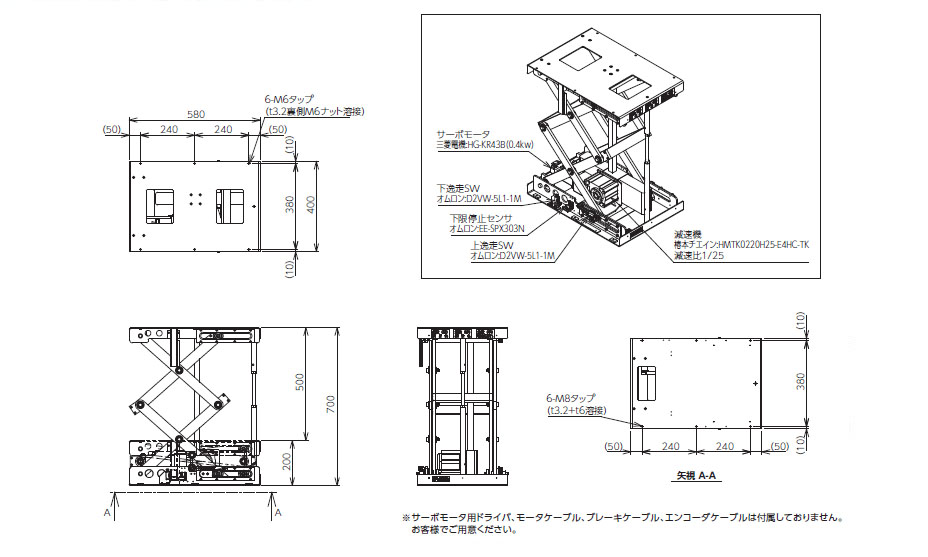

PDF Outline Drawing

Drawing number ：ZSL0050M05K2

CAD data in DXF format

ZSL0050M05K2
（Click here for a list of all DXF files )

3D CAD data

IGES format

STEP format

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Characteristics

Acceptable load mass
kg		 Speed
m/min{mm/s}
(Input speed )		 Distance of motor per rotation.
mm		 Stroke
mm		 Height of contracted state
mm
50 28.6{477}
(5000r/min)		 5.72 500 200
Table size
mm		 Motor Capacity
W		 Estimated Mass
kg		 Lubrication Paint Color
400×580 400 55 Chain  Grease （NO.2） Acrylic lacquer  Gray （Munsell N5）

Operating Environment Standards

Installation Indoors free of dust and water
Ambient Temperature 0～40℃
Ambient Humidity 85%RH(No condensation )
Altitude No more than 1,000 m above sea level
Shock resistance 1 G max.
Atmosphere Area must be free of corrosive and explosive gases and steam.
Mounting direction Horizontal position

Motor Specifications

Mitsubishi Elector servo motor ( with brake)
Model No. HG-KR43B

Position detecting sensor SPEC.

Application Upside & downside travel LS
Model D2VW-5L1-1M(OMRON)
Ratings AC250V 5A
DC5V 160mA(Minimum applicable load )
Contact Form
Application Downside stop sensor
Model EE-SPX303N(OMRON)
EE-1010 2M
Supply voltage DC12～24V±10%
Ripple (p-p): 5% max
Control output NPNvoltage output (Load current: 80 mA max. )
Output configuration Dark-ON
Output circuit
