Major Specifications

Model No. ：ZMEL1000M20G


[Click to enlarge ]

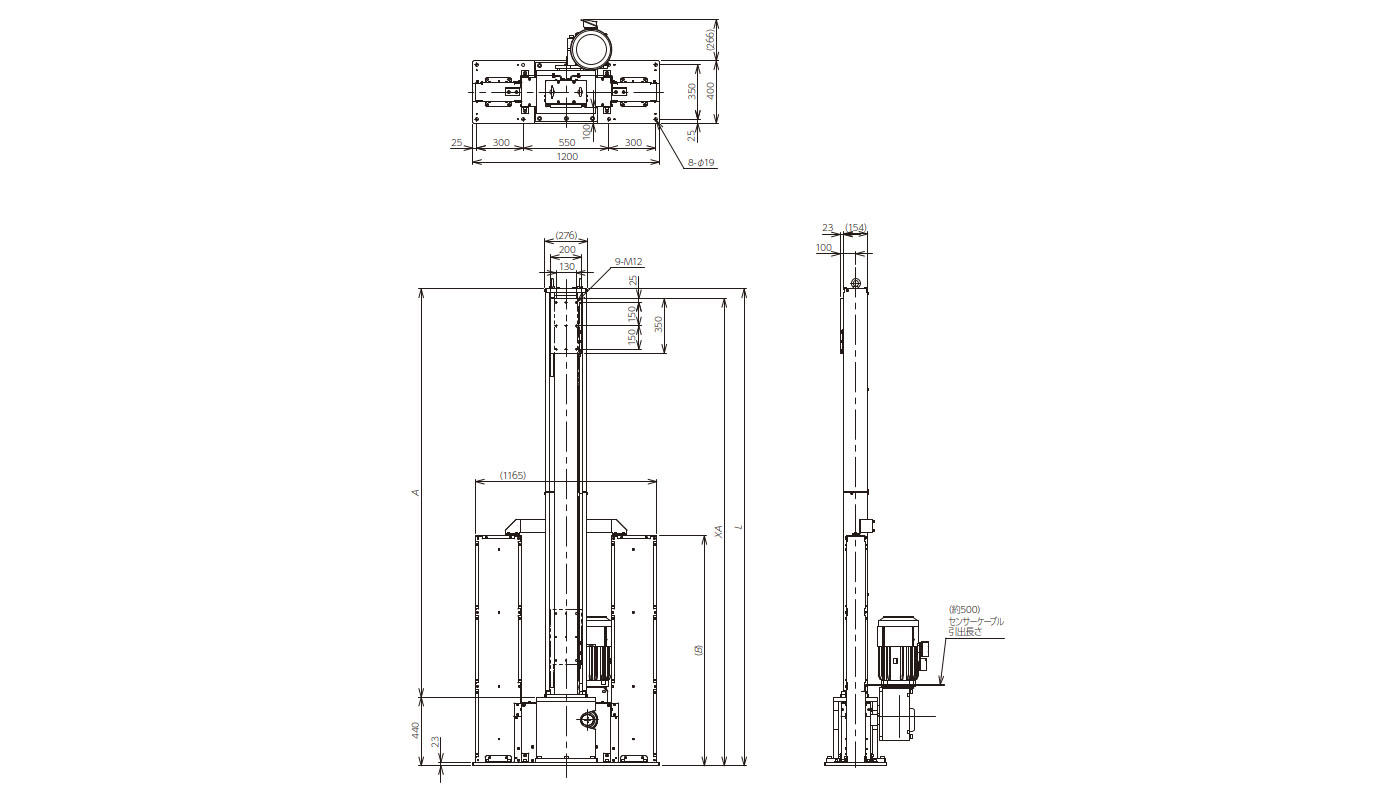

PDF Outline Drawing

Drawing number ：ZMEL1000M20G

CAD data in DXF format

ZMEL1000M20G
（Click here for a list of all DXF files )

3D CAD data

IGES format

STEP format

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Characteristics

Nominal Speed load rating Allowable OHL 　※ Stroke
mm		 Motor Capacity
kW		 Reduction ratio
N {kgf} N {kgf}
330
(at 60Hz)		 9.80k 1000 4900 500 2000 5.5 1/40

Notes

※Distance from the workpiece mounting surface to the position of the center of gravity of the workpiece. Please refer to the load curve.

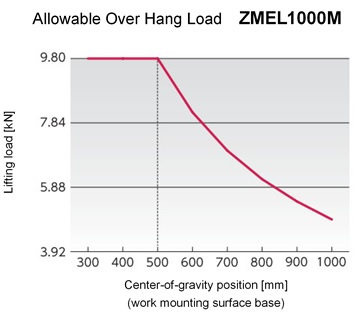

Load curve


[Click to enlarge ]

Table of Dimensions

Units ：mm
A B XA L Estimated Mass
kg
MIN MAX
2624 1480 1002 3002 3064 850

Motor Specifications

Motor power source Voltage 3Φ 200/200/220V
Brake Engaged when de-energized

Operating Environment Standards

Installation Indoor not exposed to dust or water
Ambient Temperature 0～40℃
Ambient Humidity 85%RH(no condensation )
Altitude No more than 1,000 m above sea level
Shock resistance 1 G max.
Atmosphere Free from corrosive gases, explosive gases, and steam
Mounting direction Horizontal position

Position detecting sensor SPEC.

Model EE-SX972-C1(OMRON)
Supply voltage DC5～24V±10%
Ripple (p-p): 10% max
Control output NPN open collector type (Load current: 50 mA or less )
Output configuration OUT1：Light-ON 　OUT2：Dark-ON
Electric circuit
[Click to enlarge ]
Number of mounts four

PNP open collector type is also available as a special output specification, so please consult us.

Request for selection

Our engineer will select the lifter applicable to the operating conditions and desired conditions.


About request for selection
