Major Specifications
Model No. ：ZMEL1000M15K
[Click to enlarge ]

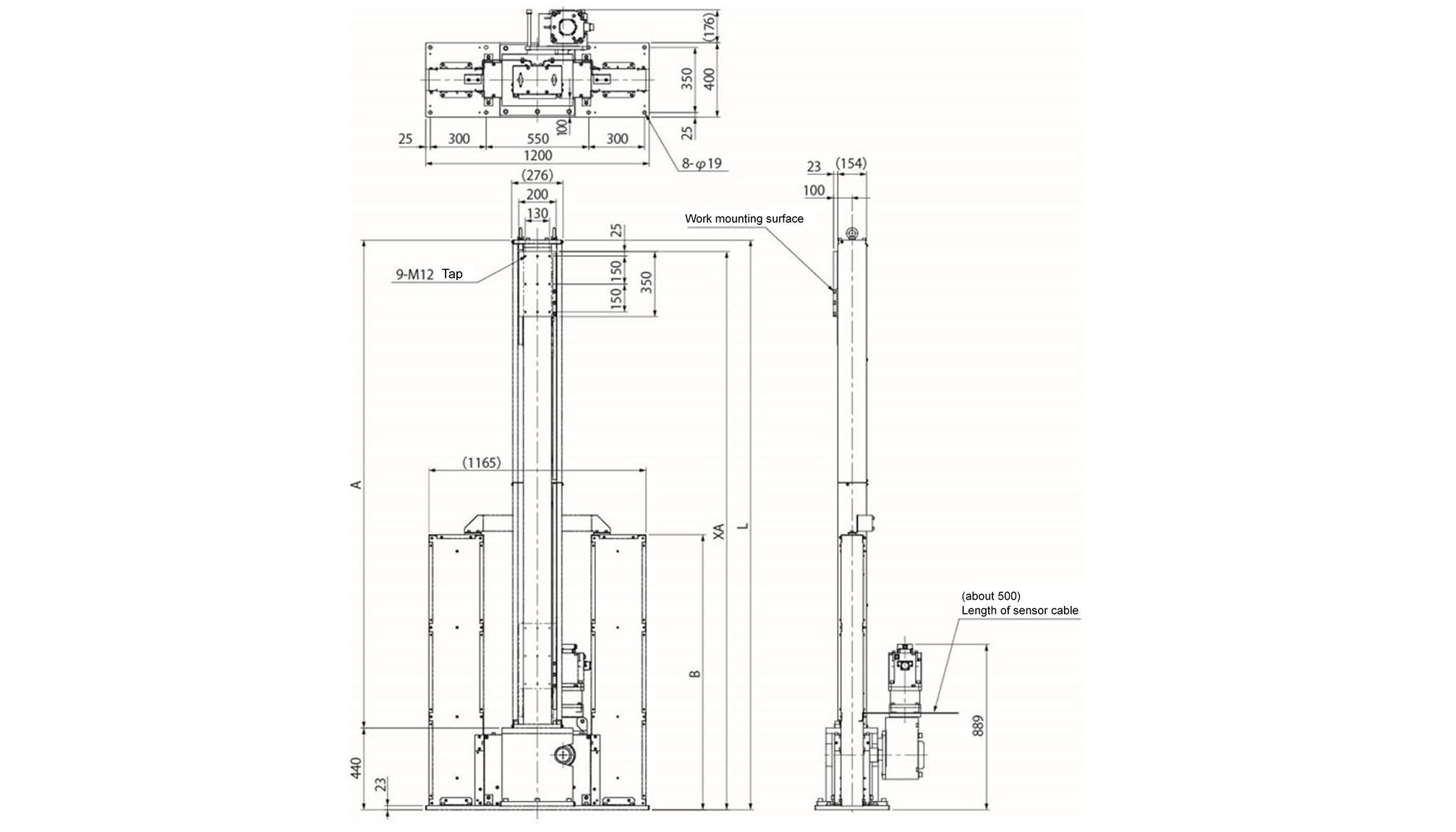

PDF Outline Drawing
Drawing number ：ZMEL1000M15K
CAD data in DXF format
ZMEL1000M15K
（Click here for a list of all DXF files )
3D CAD data
Standard Price
Contact us for details.
Delivery
Contact us for details.
Catalogs ・Instruction Manuals
Characteristics
| Nominal Speed | load rating | Allowable OHL ※ | Stroke mm |
Motor Capacity kW |
Reduction ratio | ||
|---|---|---|---|---|---|---|---|
| N | {kgf} | N | {kgf} | ||||
| 330 (at 2,598r/min) |
9.80k | 1000 | 4900 | 500 | 1500 | 5.0 | 1/50 |
Notes
※Distance from the workpiece mounting surface to the position of the center of gravity of the workpiece. Please refer to the load curve.

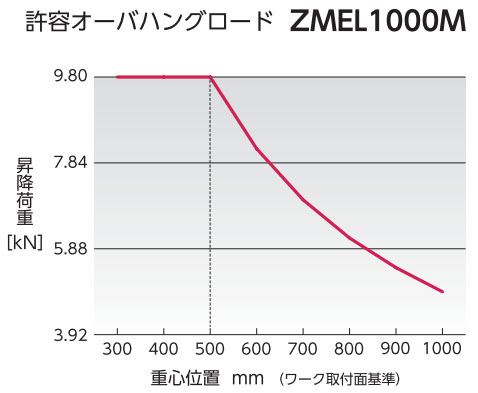

Load curve
[Click to enlarge ]
Table of Dimensions
| A | B | XA | L | Estimated Mass kg |
|
|---|---|---|---|---|---|
| MIN | MAX | ||||
| 2124 | 1230 | 1002 | 2502 | 2564 | 770 |
Motor Specifications
| Mitsubishi Elector servo motor ( with brake) | |
| Model No. | HG-SR502BK |
|---|---|
Operating Environment Standards
| Installation | Indoor not exposed to dust or water |
|---|---|
| Ambient Temperature | 0～40℃ |
| Ambient Humidity | 85%RH(no condensation ) |
| Altitude | No more than 1,000 m above sea level |
| Shock resistance | 1 G max. |
| Atmosphere | Free from corrosive gases, explosive gases, and steam |
| Mounting direction | Horizontal position |
Position detecting sensor SPEC.
| Model | EE-SX972-C1(OMRON) |
|---|---|
| Supply voltage | DC5～24V±10% Ripple (p-p): 10% max |
| Control output | NPN open collector type (Load current: 50 mA or less ) |
| Output configuration | OUT1：Light-ON OUT2：Dark-ON |
| Electric circuit |
[Click to enlarge ] |
| Number of mounts | four |
PNP open collector type is also available as a special output specification, so please consult us.
Request for selection
Our engineer will select the lifter applicable to the operating conditions and desired conditions.
Contact Information
Online Inquiries
For inquiries in English, visit the Inquiries page on our Tsubaki Group website.
